60227 IEC 52 RVV Light PVC sheathed flexible cord
The 60227 IEC 52 RVV Light PVC Sheathed Flexible Cord is a high-quality cable designed for internal wiring in electronic devices and household appliances. It features a stranded copper conductor with PVC insulation and sheathing, providing excellent flexibility and durability. Rated for 300/300V and a temperature range of -20°C to 70°C, this cord is suitable for applications requiring reliable and safe power transmission. It is commonly used in household appliances, instruments, telecommunications equipment, and switch control systems. The uniform insulation thickness ensures easy stripping and cutting, facilitating installation. Additionally, it meets RoHS and REACH standards, making it environmentally friendly.
-
60227 IEC 52 RVV
-
zhongxin
-
854449
| Quantity: | |
|---|---|
Product Description
| Parameter | Value |
|---|---|
| Rating Temp | 70℃ |
| Rating Volt. | 300/300V |
| Reference Standard | GB/T 5023.5-2008/IEC 60227-5:2003 |
| Conductor | Stranded bare or tinned copper conductor |
| Insulation | PVC/D, PASS ROHS |
| Jacket | PVC/ST5, PASS ROHS |
| Application | Internal & exterior wiring for electronic appliances, power instruments, and auto equipments |
Performance Parameter
规格 C×mm2 | 绝缘 Insulation | 护套 Jacket | 最大导体电阻 Max Resistance (Ω/km, 20℃) | |||
厚度 Nom.Thick. (mm) | 外径 Nom.Dia. (mm) | 厚度 Nom.Thick. (mm) | 外径 Nom.Dia. (mm) | |||
2× | 0.5 | 0.5 | 1.96 | 0.6 | 5.20 | 39.0 |
0.6 | 3.2×5.2 | |||||
0.75 | 0.5 | 2.15 | 0.6 | 5.50 | 26.0 | |
0.6 | 3.4×5.6 | |||||
3× | 0.5 | 0.5 | 1.96 | 0.6 | 5.50 | 39.0 |
0.75 | 0.5 | 2.15 | 0.6 | 5.90 | 26.0 | |
产品认证 Certification |
| |||||
Product Description

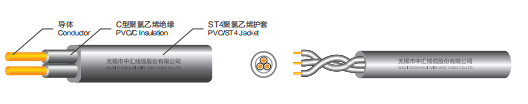

The 60227 IEC 52 RVV Light PVC Sheathed Flexible Cord is a versatile electrical cable designed for applications that require flexibility and durability in a lightweight package. This cord features multiple strands of fine, annealed copper conductors, each individually insulated with a soft PVC compound to ensure excellent electrical insulation and mechanical protection. The inner cores are twisted together in a helical arrangement, enhancing the cable's flexibility and resistance to bending fatigue.
Encasing the insulated conductors is a tough yet pliable PVC outer sheath, which provides protection against moisture, dust, and minor mechanical impacts. The sheath is available in various colors for easy circuit identification and meets international standards for flame retardancy and environmental safety. With a rated voltage of 300/300V and a temperature range of -15°C to +70°C, the RVV cord is suitable for both indoor and outdoor use in moderate climatic conditions. It is commonly available in 2-core and 3-core configurations, with conductor sizes ranging from 0.5mm² to 2.5mm², making it ideal for low-power applications.
Features
High Flexibility: The stranded conductor design and helical lay of the cores allow the cord to bend and twist freely without damage, making it perfect for movable equipment and temporary installations.
Easy Installation: The lightweight construction and smooth outer sheath reduce pulling force during installation, saving time and effort in wiring projects.
Excellent Insulation: The PVC insulation and sheath provide reliable electrical isolation, preventing short circuits and ensuring safe operation even in humid environments.
Cost-Effective: Offering a balance of performance and affordability, the RVV cord is a popular choice for applications where premium features like extreme temperature resistance are not required.
Color Coded Sheath: Available in distinct colors (such as black, white, and gray), it simplifies wiring management and compliance with electrical code requirements for phase identification.
Application
The 60227 IEC 52 RVV Light PVC Sheathed Flexible Cord is widely used in a variety of low-voltage, low-power applications, including:
Home Appliances: Connecting lamps, fans, vacuum cleaners, and other portable devices that require flexible wiring.
Office Equipment: Used in computers, printers, and peripherals, where cable movement is common (e.g., under desks or behind equipment).
Lighting Systems: Suitable for indoor and outdoor lighting installations, such as string lights, signs, and decorative fixtures.
Temporary Wiring: Ideal for construction sites, events, and exhibitions where temporary power distribution is needed.
Audio/Video Equipment: Used in speaker wires and signal cables for home theater systems, where flexibility and space-saving are important.
Faq
Q: Can this cord be used for outdoor applications?
A: Yes, it is suitable for outdoor use in dry or damp conditions, but it should not be exposed to direct sunlight for extended periods or submerged in water.
Q: What is the maximum current rating for a 2.5mm² conductor?
A: A 2.5mm² copper conductor in this cord can safely carry up to 25 amps under normal conditions, but always refer to local electrical codes for specific installation requirements.
Q: Is the PVC sheath resistant to UV radiation?
A: The standard RVV cord has moderate UV resistance. For prolonged outdoor use in sunny areas, consider a UV-stabilized variant or protect the cable with conduit.
Q: Can I use this cord for 12V DC systems?
A: Yes, it is compatible with both low-voltage DC and standard AC systems, making it versatile for automotive, marine, and solar-powered applications.
Q: How do I strip the outer sheath without damaging the inner cores?
A: Use a cable stripper set to the appropriate diameter for the outer sheath. Gently rotate the stripper around the cable to create a clean cut without applying excessive pressure.
