GB_AC EV charging cable

The GB_AC EV Charging Cable is a reliable solution for charging electric vehicles in China. It meets the GB/T 20234.2-2015 standard and is designed for AC charging. The cable features a Type 2 connector and is compatible with most EVs. It is rated for AC 600V/DC 900V or AC 1000V/DC 1500V, with a temperature range of -40℃ to +90℃. The cable uses soft or tin-coated annealed copper wire for the conductor, TPE insulation, and TPE jacketing, ensuring excellent flexibility and durability. It is suitable for residential, commercial, and public charging stations. The cable also meets ROHS and REACH standards, making it environmentally friendly.
  • GB_AC EV charging cable

  • Zhongxin

  • 85444221

Availability:
Quantity:
Product Description

wuxi zhonghui's GB_AC EV Charging Cable is a reliable solution for charging electric vehicles in China. It meets the GB/T 20234.2-2015 standard and is designed for AC charging. The cable features a Type 2 connector and is compatible with most EVs. It is rated for AC 600V/DC 900V or AC 1000V/DC 1500V, with a temperature range of -40℃ to +90℃. The cable uses soft or tin-coated annealed copper wire for the conductor, TPE insulation, and TPE jacketing, ensuring excellent flexibility and durability. It is suitable for residential, commercial, and public charging stations. The cable also meets ROHS and REACH standards, making it environmentally friendly.



Specifications


Parameter

Details

Voltage Rating

450V/750V, DC 1000V

Temperature Rating

-40℃ to +90℃

Minimum Bending Radius

5D (D: Outer Diameter)

Conductor

Soft or Tin-coated Annealed Copper Wire, IEC60228/VDE0295 Class 5 or Class 6

Insulation Material

TPE

Jacket Material

TPE

Standards

GB/T 33594-2017, CQC1103-1105, DEKRA K175, ROHS, REACH, VOC




Performance Parameters


型号 Model


规格 mm2

护套 Sheath

电源线导体电阻

Power core Conductor

Resistance

(Ω/km, 20℃)

外径

Nom.Dia.

(mm)

参考电流

Ref. current

Operating tem 40℃

EV-(R)SS

EV-(R)S90S90

3×1.5+1×0.5

11.2

10A

13.3

3×2.5+1×0.5

12.2

16A

7.98

3×6+1×0.05

16.0

32A

3.30

3×16+1×0.75

22.0

63A

1.21


EV-(R)SSPS

EV-(R)S90S90PS90

3×1.5+1×0.5

13.2

10A

13.3

3×2.5+1×0.5

14.4

16A

7.98

3×6+1×0.5

18.6

32A

3.30

3×16+1×0.75

25.4

63A

1.21

产品认证 Certification



The GB_AC EV charging cable is a high-quality cable designed for Electric Vehicle (EV) charging applications. It has the following specifications:


Rating Voltage: The cable has a rating of 450V/750V, DC 1000V, making it suitable for charging electric vehicles.


Rating Temperature: It has a temperature rating of -40℃ to +90℃, ensuring reliable performance in a wide range of temperature conditions.


Minimum Bending Radius: The cable has a minimum bending radius of 5D (D:OD), allowing for flexibility and easy installation.


Reference Standard: The cable complies with international standards such as GB/T 33594-2017, CQC1103-1105, and DEKRA K175, ensuring quality and safety.


The GB_AC EV charging cable has the following construction:

Conductor: The cable features a soft or tin-coated annealed copper wire, conforming to IEC60228/VDE0295 Class 5 or Class 6 standards, providing excellent conductivity and flexibility.


Insulation: It is insulated with TPE (Thermoplastic Elastomer), known for its excellent electrical properties and resistance to heat, chemicals, and abrasion.


Jacket: The cable has a TPE jacket, providing additional protection and durability.


The product features of the GB_AC EV charging cable include:

Excellent flexibility for easy installation, allowing for convenient and hassle-free charging of electric vehicles.

Good delay combustibility, passing the single vertical combustion test, ensuring safety in case of fire.

Heating resistant, cold resistant, fluid resistant, oil resistant, ultraviolet resistant, and ozone resistant, making it suitable for various environmental conditions.


The cable is intended to connect the electric vehicle charging equipment to the electric vehicle, providing a reliable and efficient charging connection.


Overall, the GB_AC EV charging cable is a reliable and high-quality solution for EV charging applications. Its design, specifications, and compliance with international standards ensure its performance, safety, and durability. Whether used in residential, commercial, or public charging stations, this cable provides a secure and efficient charging solution for electric vehicles.



GB_AC EV Charging Cable

Product Design:

The GB_AC EV Charging Cable is designed with a focus on reliability and safety. It uses stranded bare or tinned copper conductors for superior conductivity and flexibility. The PVC insulation ensures resistance to environmental factors, enhancing durability. The cable meets standards such as GB/T 2099.1 and GB/T 1002, ensuring compatibility and safety. The design includes a standardized Type 2 connector, making it easy to connect to power outlets and EVs. Its durable construction and high-quality materials ensure long-lasting performance.



Product Features
  • Voltage and Temperature Rating: Rated for 450V/750V AC and DC 1000V, with a temperature range of -40℃ to +90℃, ensuring reliable performance in extreme conditions.


  • Standards Compliance: Adheres to GB/T 33594-2017, CQC1103-1105, and DEKRA K175 standards, guaranteeing quality and safety for EV charging applications.


  • Conductor Type: Features soft or tin-coated annealed copper wire, meeting IEC60228/VDE0295 Class 5 or Class 6 standards for excellent conductivity and flexibility.


  • Insulation and Jacket: Utilizes TPE insulation and jacketing, providing excellent flexibility and durability.


  • Minimum Bending Radius: Designed with a minimum bending radius of 5D (D: OD), ensuring ease of installation and handling.


  • Application: Specifically designed to connect electric vehicle charging equipment to electric vehicles, ensuring safe and efficient charging.



Product Advantages

  • Environmental Friendliness: Materials meet ROHS and REACH standards, ensuring the product is safe for the environment.


  • Wide Application Range: Ideal for connecting EV charging equipment to vehicles, providing stable and reliable performance in critical applications.


  • Resistance to Environmental Factors: The cable is resistant to heat, cold, fluids, oil, ultraviolet radiation, and ozone, making it suitable for outdoor and indoor use.


  • Cost-Effective: Provides a reliable and efficient solution for EV charging without the need for expensive infrastructure upgrades.



Product Applications:
This EV charging cable is widely used in residential, commercial, and public charging stations. It connects seamlessly to EVs, providing stable and efficient charging. The GB_AC cable is suitable for use in garages, driveways, commercial parking areas, and public charging networks. Its reliable performance and safety features make it a preferred choice for both residential and commercial EV charging needs.



FAQ (Frequently Asked Questions)

1. Q: What is the GB_AC EV Charging Cable used for?
A:
The GB_AC EV Charging Cable is designed to connect electric vehicle charging equipment to electric vehicles. It is suitable for use in residential, commercial, and public charging stations, ensuring safe and efficient charging.


2. Q: What are the key features of the GB_AC EV Charging Cable?

A:
The GB_AC EV Charging Cable features a voltage rating of 450V/750V AC and DC 1000V, with a temperature range of -40℃ to +90℃. It uses soft or tin-coated annealed copper wire for the conductor, TPE insulation, and TPE jacketing. It meets standards such as GB/T 33594-2017, CQC1103-1105, and DEKRA K175.


3. Q: What applications is the GB_AC EV Charging Cable suitable for?

A:

The GB_AC EV Charging Cable is suitable for a wide range of applications, including residential, commercial, and public charging stations. It provides reliable performance in critical EV charging applications.


4. Q: Is the GB_AC EV Charging Cable environmentally friendly?

A:

Yes, the GB_AC EV Charging Cable is environmentally friendly. It meets ROHS and REACH standards, ensuring it is safe for the environment.


5.Q:What's the After-service time?

A:We will reply Within 12 hours as soon as possible

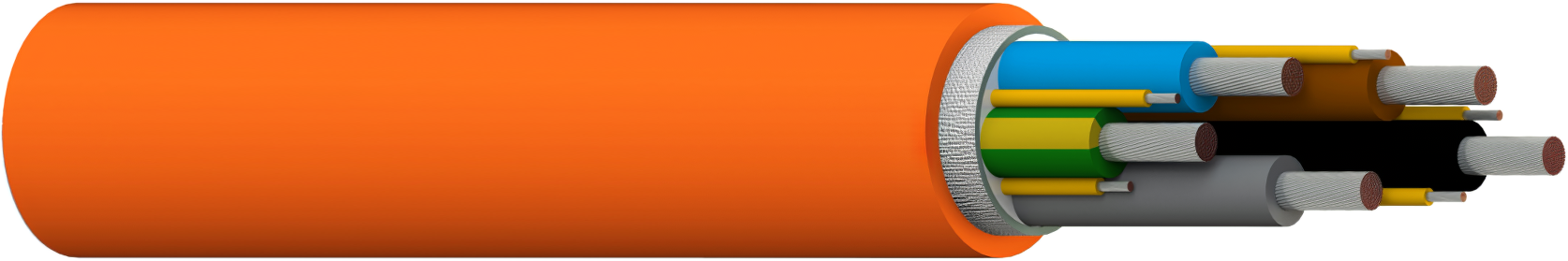

EV-edit

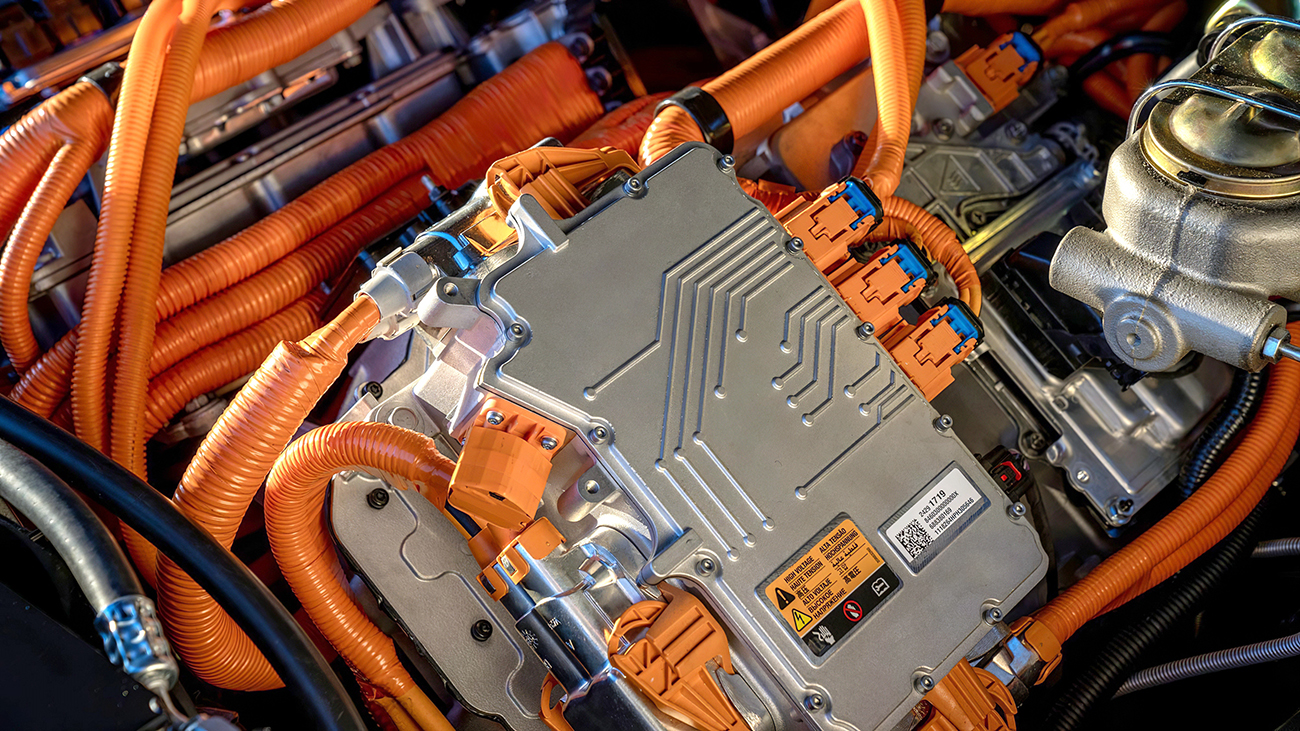

High Voltage EV Cable-2
