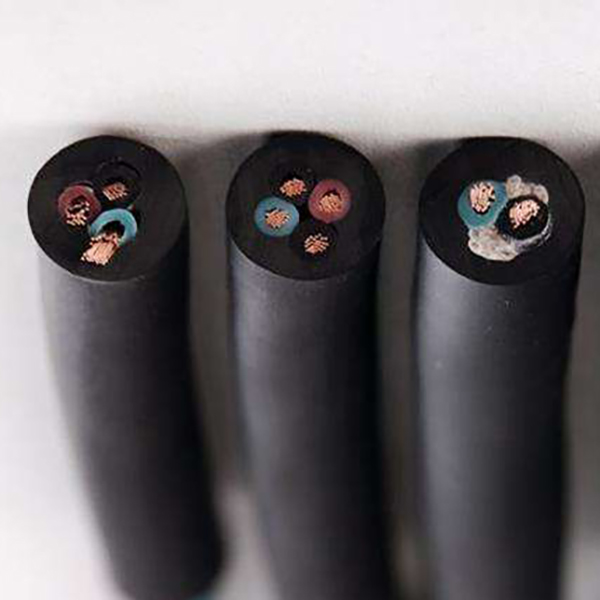

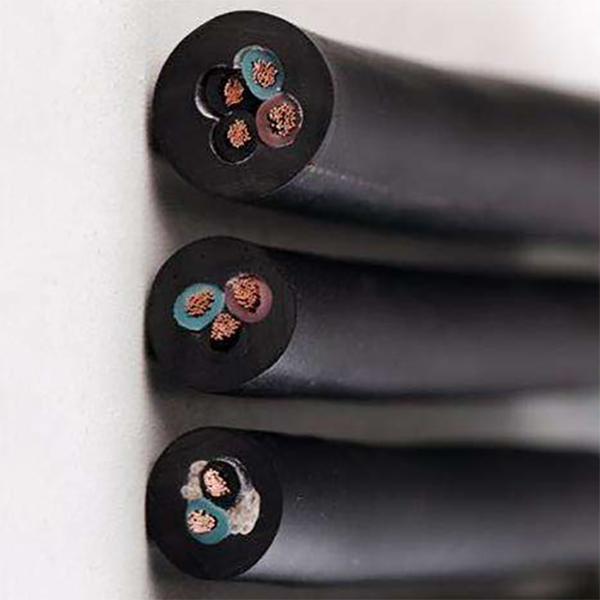

H07RN-F Cross-linked Multi Core Flexible Wind Energy Flexible Cable
The H07RN-F Cross-linked Multi Core Flexible Wind Energy Flexible Cable is a high-quality cable designed specifically for wind energy applications. This cable is made with cross-linked polyethylene (XLPE) insulation and a flexible rubber outer sheath, providing excellent resistance to harsh weather conditions and mechanical stress. It is suitable for use in wind turbines and other renewable energy systems, ensuring reliable power transmission and durability. The multi-core design allows for efficient and organized wiring in wind energy installations.
-
H07RN-F
-
Zhongxin
-
85444921
| Quantity: | |
|---|---|
Product Description
The H07RN-F Cross-linked Multi Core Flexible Wind Energy Flexible Cable is a high-quality cable designed for power transmission systems in wind power stations. It has a rating temperature of 60℃ and a rating voltage of 0.6/1kV. This cable complies with the reference standard EN50525-2-21:2011, ensuring its quality and adherence to industry standards.
The conductor of this cable is made of stranded bare or tinned copper, providing excellent conductivity and flexibility. The insulation is EI4 rated and is compliant with ROHS regulations, ensuring safety and environmental compliance. The jacket is EM2 rated and also complies with ROHS regulations.
Performance Parameters
规格 C×mm2 | 绝缘 Insulation | 护套 Jacket | ||||
最大导体电阻 | ||||||
Max Resistance | ||||||
厚度 | 外径 | 厚度 | 外径 | (Ω/km, 20℃) | ||
Nom.Thick. | Nom.Dia. | Nom.Thick. | Nom.Dia. | |||
(mm) | (mm) | (mm) | (mm) | |||
2.5 | 0.9 | 4.05 | 1.7 | 11.7 | 7.98 | |
4 | 1 | 4.9 | 1.8 | 13.6 | 4.95 | |
6 | 1 | 5.5 | 2 | 15.2 | 3.3 | |
10 | 1.2 | 6.9 | 3.1 | 20.2 | 1.91 | |
2× | 16 | 1.2 | 8.2 | 3.3 | 23.2 | 1.21 |
25 | 1.4 | 10 | 3.6 | 27.5 | 0.78 | |
35 | 1.4 | 11.3 | 3.8 | 30.5 | 0.554 | |
50 | 1.6 | 13.9 | 4.2 | 36.5 | 0.386 | |
70 | 1.6 | 15.9 | 4.6 | 41.5 | 0.272 | |
95 | 1.8 | 18.5 | 5 | 47.5 | 0.206 | |
2.5 | 0.9 | 4.05 | 1.8 | 12.5 | 7.98 | |
4 | 1 | 4.9 | 1.9 | 14.5 | 4.95 | |
6 | 1 | 5.5 | 2.1 | 16.3 | 3.3 | |
10 | 1.2 | 6.9 | 3.3 | 21.8 | 1.91 | |
3× | 16 | 1.2 | 8.2 | 3.5 | 25 | 1.21 |
25 | 1.4 | 10 | 3.8 | 30 | 0.78 | |
35 | 1.4 | 11.3 | 4.1 | 32.8 | 0.554 | |
50 | 1.6 | 13.9 | 4.5 | 39.5 | 0.386 | |
70 | 1.6 | 15.9 | 4.8 | 44.2 | 0.272 | |
95 | 1.8 | 18.5 | 5.3 | 51 | 0.206 | |
规格 C×mm2 | 绝缘 Insulation | 护套 Jacket | ||||
最大导体电阻 | ||||||
Max Resistance | ||||||
厚度 | 外径 | 厚度 | 外径 | (Ω/km, 20℃) | ||
Nom.Thick. | Nom.Dia. | Nom.Thick. | Nom.Dia. | |||
(mm) | (mm) | (mm) | (mm) | |||
2.5 | 0.90 | 4.05 | 1.90 | 13.80 | 7.98 | |
4 | 1.00 | 4.90 | 2.00 | 16.00 | 4.95 | |
6 | 1.00 | 5.50 | 2.30 | 18.00 | 3.30 | |
10 | 1.20 | 6.90 | 3.40 | 23.80 | 1.91 | |
4× | 16 | 1.20 | 8.20 | 3.60 | 27.50 | 1.21 |
25 | 1.40 | 10.00 | 4.10 | 32.60 | 0.78 | |
35 | 1.40 | 11.30 | 4.40 | 36.40 | 0.554 | |
50 | 1.60 | 13.90 | 4.80 | 43.50 | 0.386 | |
70 | 1.60 | 15.90 | 5.20 | 49.30 | 0.272 | |
95 | 1.80 | 18.50 | 5.90 | 57.00 | 0.206 | |
2.5 | 0.90 | 4.05 | 2.00 | 15.10 | 7.98 | |
4 | 1.00 | 4.90 | 2.20 | 17.80 | 4.95 | |
6 | 1.00 | 5.50 | 2.50 | 20.20 | 3.30 | |
10 | 1.20 | 6.90 | 3.60 | 26.20 | 1.91 | |
5× | 16 | 1.20 | 8.20 | 3.90 | 30.40 | 1.21 |
25 | 1.40 | 10.00 | 4.40 | 36.20 | 0.78 | |
35 | 1.40 | 11.30 | 4.60 | 40.30 | 0.554 | |
50 | 1.60 | 13.90 | 5.20 | 48.40 | 0.386 | |
70 | 1.60 | 15.90 | 5.70 | 54.80 | 0.272 | |
95 | 1.80 | 18.50 | 6.30 | 63.00 | 0.206 | |
Product Description:
H07RN-F Cross-linked Multi Core Flexible Wind Energy Flexible Cable
is a high-quality cable designed specifically for wind energy applications. This cable is made with cross-linked polyethylene (XLPE) insulation and a flexible rubber outer sheath, providing excellent resistance to harsh weather conditions and mechanical stress. It is suitable for use in wind turbines and other renewable energy systems, ensuring reliable power transmission and durability. The multi-core design allows for efficient and organized wiring in wind energy installations.
Product Design:
The H07RN-F Cross-linked Multi Core Flexible Wind Energy Cable is designed for demanding applications in wind energy systems. It features multiple stranded copper conductors, cross-linked polyolefin (XLPO) insulation, and a PVC jacket. The XLPO insulation provides excellent thermal stability and resistance to mechanical stress, while the PVC jacket offers durability and protection against environmental factors. The cable is designed to meet standards such as IEC 60245, ensuring reliable performance in harsh conditions. Its flexible design allows for easy installation and movement, making it suitable for dynamic environments.
Product Features:
High Temperature Rating: The cable has a rating temperature of 60℃, allowing it to withstand high operating temperatures in wind power stations.
High Voltage Rating: With a rating voltage of 0.6/1kV, this cable is suitable for power transmission applications in wind power systems.
Stranded Conductor: The cable features a stranded bare or tinned copper conductor, providing flexibility and excellent conductivity.
Compliance with Standards: The cable complies with the reference standard EN50525-2-21:2011, ensuring its quality and adherence to industry requirements.
Safe and Environmentally Friendly: The insulation and jacket of the cable are both ROHS compliant, ensuring safety and environmental compliance.
Product Advantages:
Reliable Power Transmission: The H07RN-F Cross-linked Multi Core Flexible Wind Energy Flexible Cable is designed specifically for power transmission systems in wind power stations, ensuring reliable and efficient power transmission.
Flexibility: The stranded conductor and flexible design of the cable make it easy to install and maneuver in wind power applications.
High-Quality Materials: The cable is made with high-quality materials, including stranded copper conductors and ROHS compliant insulation and jacket, ensuring durability and longevity.
Safety and Compliance: The cable's insulation and jacket are both ROHS compliant, ensuring safety and environmental compliance.
Versatile Application: This cable is suitable for use in power transmission systems of wind power stations, providing a reliable solution for renewable energy applications.
Product Applications:
This cable is widely used in wind turbines and wind farms for internal wiring of generators, control systems, and power transmission. It is ideal for applications requiring high flexibility and durability, such as connecting moving parts within turbines. The H07RN-F cable's resistance to UV radiation, ozone, and weathering makes it suitable for both indoor and outdoor use in wind energy installations. Its excellent electrical properties and mechanical strength ensure safe and efficient power delivery in the renewable energy sector.
FAQ (Frequently Asked Questions)
What is the temperature rating of the H07RN-F Cross-linked Multi Core Flexible Wind Energy Flexible Cable?
The cable has a temperature rating of 60℃.
What is the voltage rating of the cable?
The cable is rated for a voltage of 0.6/1kV.
What is the reference standard for this cable?
The cable complies with the reference standard EN50525-2-21:2011.
What type of conductor is used in this cable?
The cable uses a stranded bare or tinned copper conductor.
What are the insulation and jacket ratings of the cable?
The insulation is rated as EI4 and complies with ROHS standards, while the jacket is rated as EM2 and also complies with ROHS standards.
What's the After-service time?
We will reply Within 12 hours as soon as possible
Are you a factory or trading company?
We have 21 years of manufacturing experience
