ZH-31 Power Supply Cord
ZH-31 Power Supply Cord: A High-Quality Power Solution for Swiss Standards
Product Description
The ZH-31 Power Supply Cord is a high-quality power cord designed to meet the rigorous standards of SEV 6533-2 for Swiss electrical systems. It is rated at 10A 250V and is equipped with a standard Swiss plug on one end and a connector on the other, making it easy to connect to power outlets and devices. The cord is designed to provide a stable and safe power supply for a wide range of electronic devices and appliances.
Product Description
The ZH-31 Power Supply Cord is a high-quality power cord designed to meet the rigorous standards of SEV 6533-2 for Swiss electrical systems. It is rated at 10A 250V and is equipped with a standard Swiss plug on one end and a connector on the other, making it easy to connect to power outlets and devices. The cord is designed to provide a stable and safe power supply for a wide range of electronic devices and appliances.
-
ZH-31
-
Zhongxin
-
85444221
| Quantity: | |
|---|---|
Product Description
ZH-31 Power Supply Cord: A High-Quality Power Solution for Swiss Standards
Product Description
The ZH-31 Power Supply Cord is a high-quality power cord designed to meet the rigorous standards of SEV 6533-2 for Swiss electrical systems. It is rated at 10A 250V and is equipped with a standard Swiss plug on one end and a connector on the other, making it easy to connect to power outlets and devices. The cord is designed to provide a stable and safe power supply for a wide range of electronic devices and appliances.
Product Specifications
| Parameter | Value |
|---|---|
| Type No. | ZH-31 |
| Standard | SEV 6533-2 |
| Amperage | 10A |
| Voltage | 250V |
| Conductor Size | 18AWG/2C, 16AWG/2C, 14AWG/2C |
| Wire Types | H03VVH2-F 2×0.75mm², H05VVH2-F 2×0.75-1.0mm², H03VV-F 2×0.75mm², H05VV-F 2×0.75-1.5mm², H05RN-F 2×0.75-1.0mm², H07RN-F 2×1.0-1.5mm², H05V2V2-F 2×0.75-1.0mm² |
| Approvals | KC, TUV Rheinland seguranc,a OCP 0004 |
| Color | Black, white, or gray |
| Length | Customizable |
Performance Parameter
Type No. | Standard | Approvals | |
Available with cords | |||
H03VVH2-F 2×0.75mm2 |
| ||
H05VVH2-F 2×0.75-1.0mm2 | |||
H03VV-F 2×0.75mm2 | |||
ZH-31 | H05VV-F 2×0.75-1.5mm2 | ||
10A 250V~ | SEV 6533-2 | H05RN-F 2×0.75-1.0mm2 |
|
H07RN-F 2×1.0-1.5mm2 | |||
H05V2V2-F 2×0.75-1.0mm2 |
Product Design:
The ZH-31 is designed with stranded copper conductors for excellent conductivity and flexibility. The durable PVC insulation and jacketing provide resistance to environmental stressors, ensuring long-lasting performance. It meets standards such as GB/T 2099.1 and GB/T 1002. The design incorporates multiple wire configurations to meet different power requirements. Its compact and user-friendly design makes it suitable for a wide range of electrical devices.
The ZH-31 is designed with stranded copper conductors for excellent conductivity and flexibility. The durable PVC insulation and jacketing provide resistance to environmental stressors, ensuring long-lasting performance. It meets standards such as GB/T 2099.1 and GB/T 1002. The design incorporates multiple wire configurations to meet different power requirements. Its compact and user-friendly design makes it suitable for a wide range of electrical devices.
Product Features
- Conductor Sizes: Available in 18AWG/2C, 16AWG/2C, and 14AWG/2C, the cord can handle different power requirements.
- Wire Types: Compatible with a variety of wire types, including H03VVH2-F 2×0.75mm², H05VVH2-F 2×0.75-1.0mm², H03VV-F 2×0.75mm², H05VV-F 2×0.75-1.5mm², H05RN-F 2×0.75-1.0mm², H07RN-F 2×1.0-1.5mm², and H05V2V2-F 2×0.75-1.0mm².

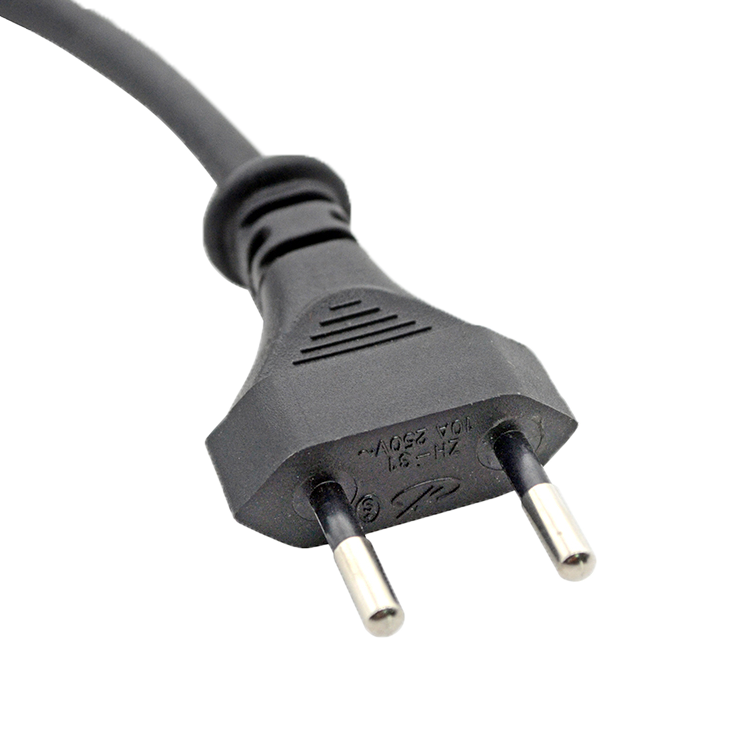

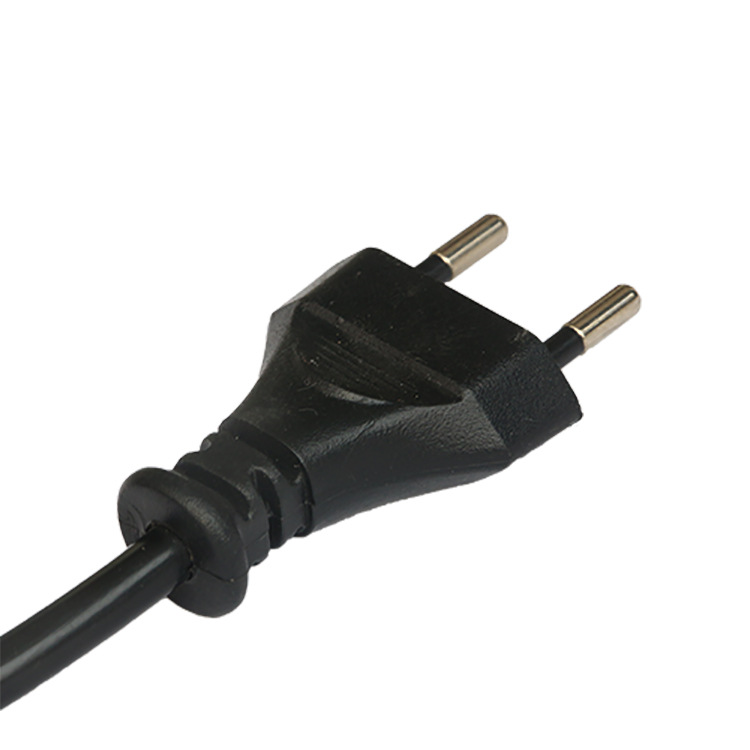

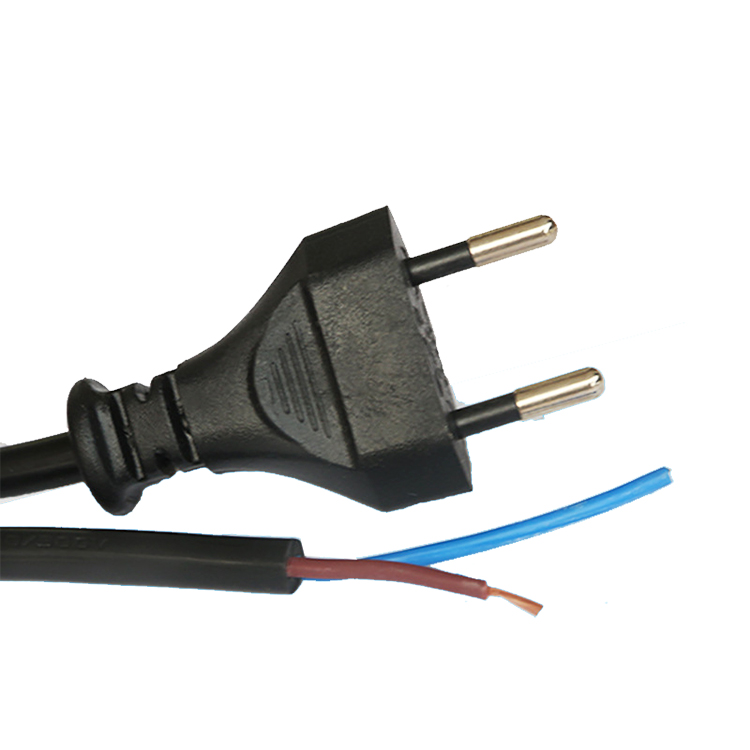

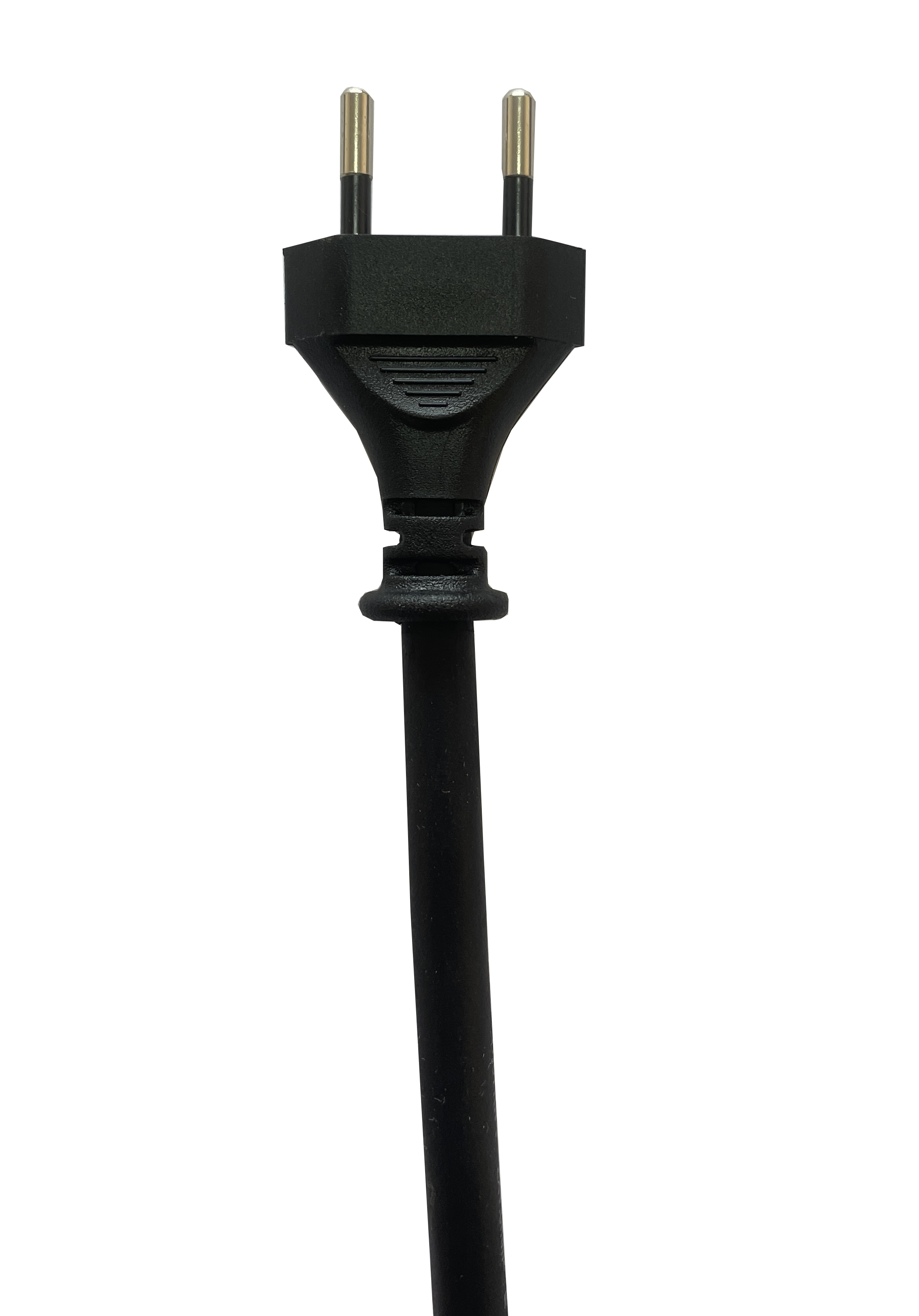

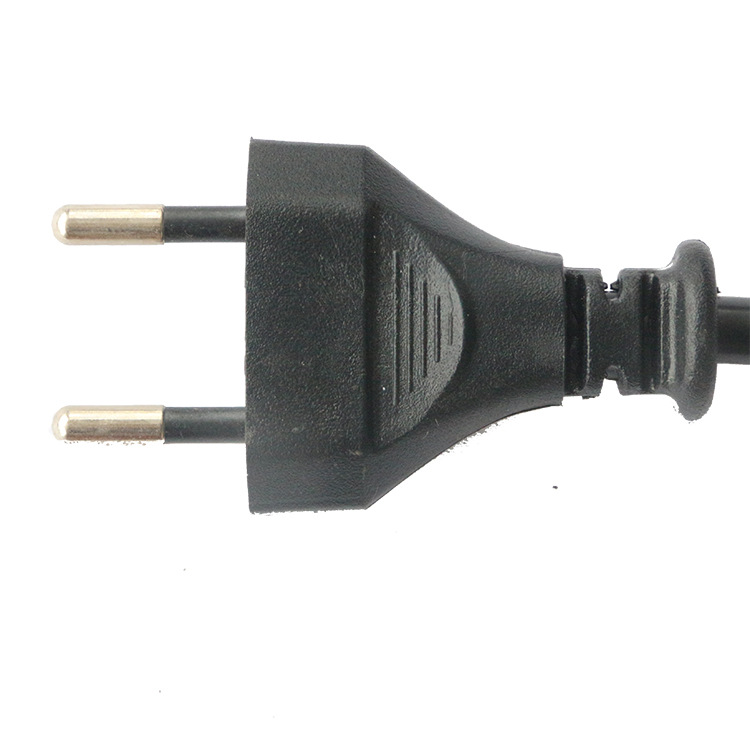

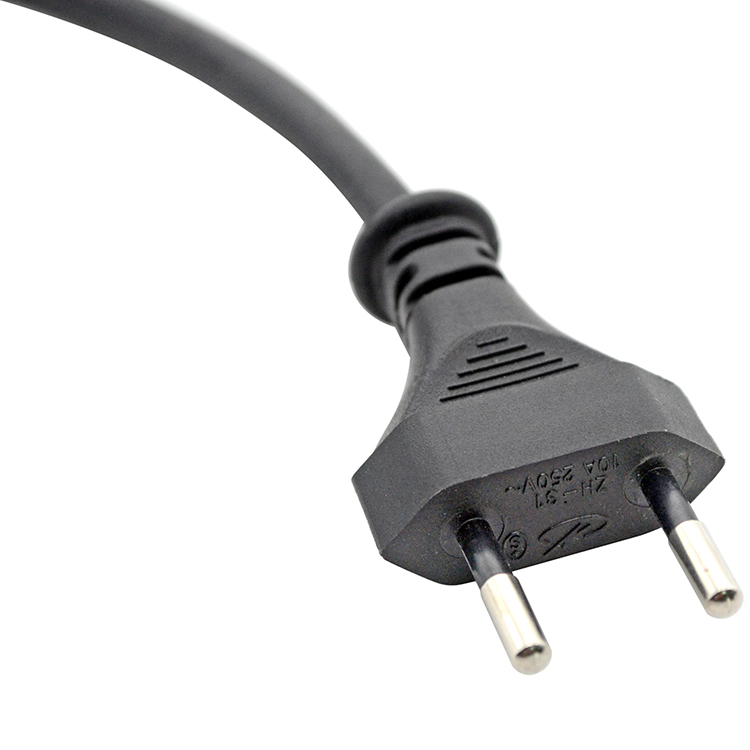

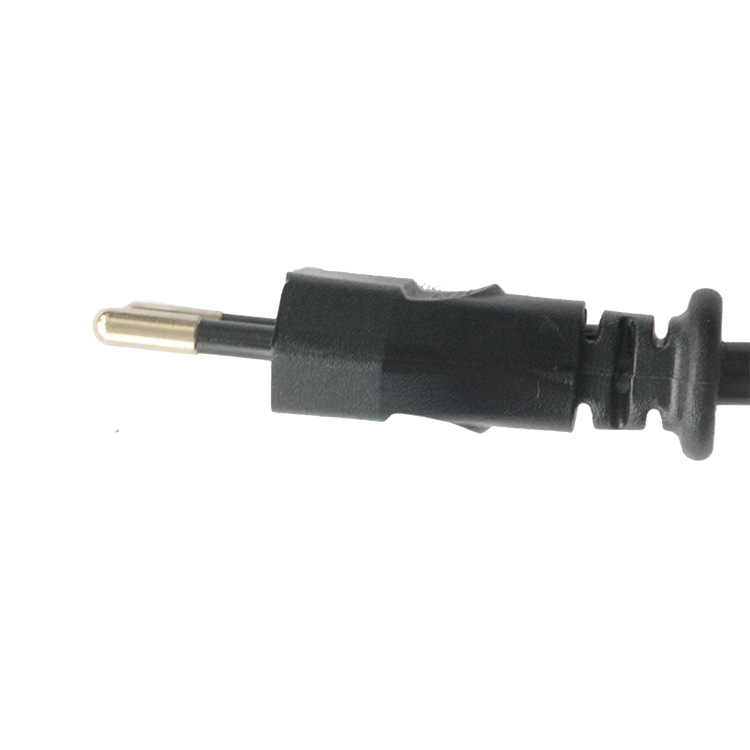

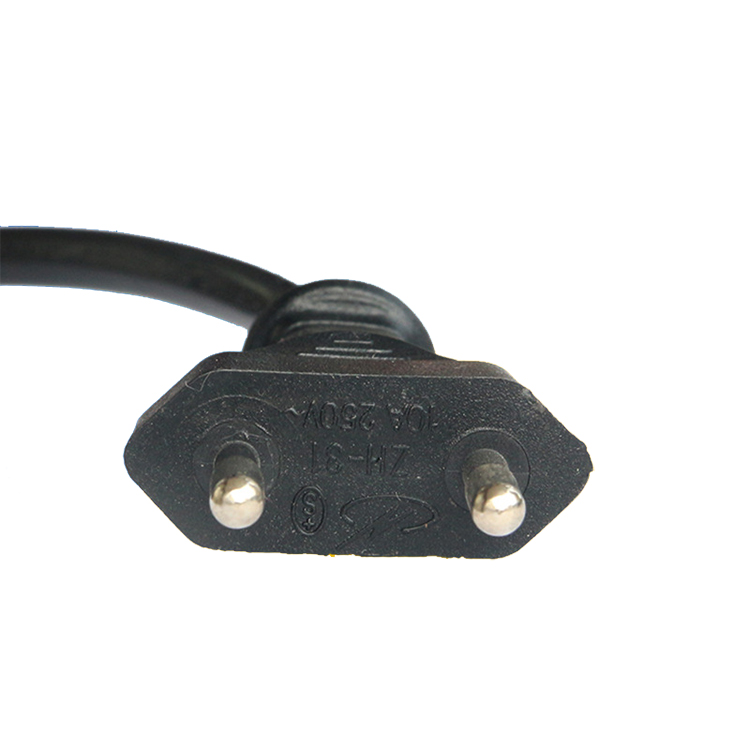

- Plug Design: The standard Swiss plug design ensures easy and secure connection to power outlets.
- Connector: The connector on the other end allows for easy interfacing with various devices and appliances.
- Approvals: The cord is approved by KC and TUV Rheinland with the file number seguranc,a OCP 0004.
Product Advantages
- Compliance with Standards: The ZH-31 meets the requirements of SEV 6533-2, ensuring it is suitable for use in Swiss electrical systems.
- Durable Construction: Made with high-quality materials, the cord is resistant to wear and tear, providing long-lasting performance.
- Safe and Efficient : The cord delivers a stable power supply, ensuring the safe and efficient operation of connected devices.
Product Applications
The ZH-31 Power Supply Cord is ideal for connecting electrical devices to power sources in household, commercial, and industrial settings. It is commonly used for internal wiring in electronic appliances, power tools, and various types of portable equipment.
FAQ (Frequently Asked Questions)
1. Q: What is the ZH-31 Power Supply Cord used for?
A:
The ZH-31 Power Supply Cord is designed for internal wiring in electronic appliances, power instruments, and automotive equipment. It provides reliable power connections in various environments.
A:
The ZH-31 Power Supply Cord is designed for internal wiring in electronic appliances, power instruments, and automotive equipment. It provides reliable power connections in various environments.
2. Q: What are the key features of the ZH-31 Power Supply Cord?
A:The ZH-31 Power Supply Cord features a temperature rating of -40℃ to +90℃ and a voltage rating of 300/300V. It uses stranded bare or tinned copper conductors and PVC insulation and jacketing, which are ROHS compliant.
