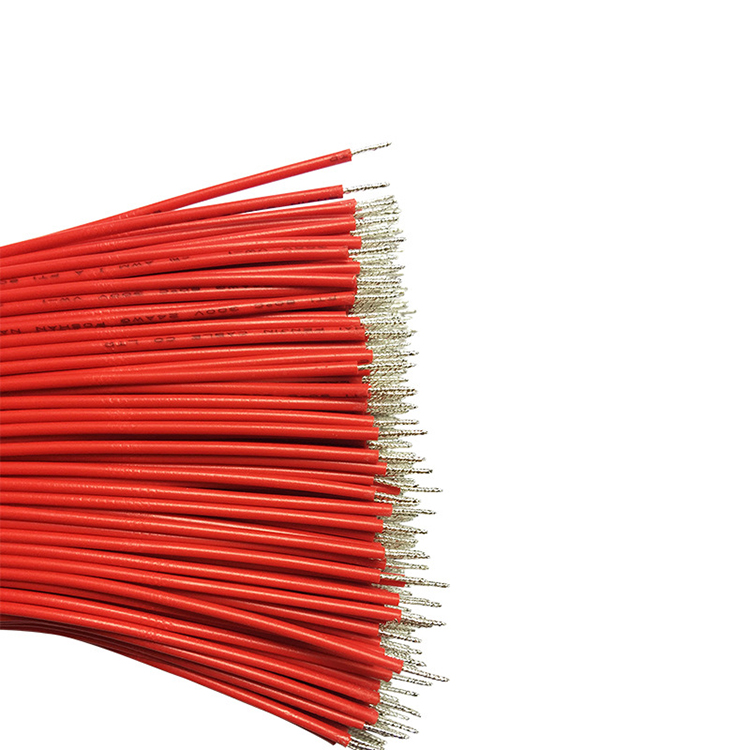

UL Style 1032 Electronic Wire
UL Style 1032 Electronic Wire is a versatile cable designed for internal wiring in electronic and electrical equipment. It features copper conductors with PVC insulation, ensuring durability and flexibility. Rated at 300V, this wire is suitable for control panels, medical devices, and industrial applications. It meets UL & CUL standards and complies with RoHS, ensuring safety and environmental friendliness. With a temperature rating of up to 90°C, it offers reliable performance in various conditions.
-
UL Style 1032
-
Zhongxin
-
85444221
| Quantity: | |
|---|---|
Product Description
wuxi zhonghui's UL Style 1032 Electronic Wire is a versatile cable designed for internal wiring in electronic and elec
trical equipment. It features copper conductors with PVC insulation, ensuring durability and flexibility. Rated at 300V, this wire is suitable for control panels, medical devices, and industrial applications. It meets UL & CUL standards and complies with RoHS, ensuring safety and environmental friendliness. With a temperature rating of up to 90°C, it offers reliable performance in various conditions.
Performance Parameter
导体 Conductor | 绝缘 Insulation | 最大导体电阻 MAX.COND Resistance (Ω/km, 20℃, DC) | |||||
线规 AWG | 构成 (No./mm) | 外径 Nom.Dia. (mm) | 绝缘厚度 Nom.Thick. (mm) | 外径 Nom.Dia. (mm) | 包装长度 Unit Length m (ft) | ||
24 | 11/0.16 | 0.61 | 0.76 | 2.20 | 610 (2000) | 93.25 | |
22 | 17/0.16 | 0.76 | 0.76 | 2.35 | 610 (2000) | 55.00 | |
20 | 26/0.16 | 0.94 | 0.76 | 2.55 | 610 (2000) | 34.60 | |
18 | 41/0.16 | 1.18 | 0.76 | 3.78 | 305 (1000) | 21.80 | |
16 | 26/0.254 | 1.49 | 0.76 | 3.10 | 305 (1000) | 14.64 | |
14 | 41/0.254 | 1.88 | 0.76 | 3.50 | 305 (1000) | 9.25 | |
12 | 65/0.254 | 2.36 | 0.76 | 4.00 | 305 (1000) | 5.82 | |
10 | 105/0.254 | 3.00 | 0.76 | 4.60 | 305 (1000) | 3.66 | |
9 | 131/0.254 | 3.70 | 0.76 | 5.30 | 100 | 2.96 | |
8 | 168/0.254 | 4.20 | 1.14 | 6.50 | 100 | 2.35 | |
7 | 210/0.254 | 4.70 | 1.14 | 7.00 | 100 | 1.87 | |
6 | 266/0.254 | 5.30 | 1.52 | 8.40 | 100 | 1.48 | |
5 | 329/0.254 | 5.80 | 1.52 | 9.00 | 100 | 1.17 | |
4 | 420/0.254 | 6.60 | 1.52 | 9.70 | 100 | 0.928 | |
3 | 532/0.254 | 7.50 | 1.52 | 10.5 | 100 | 0.744 | |
2 | 665/0.254 | 8.40 | 1.52 | 11.5 | 100 | 0.590 | |
1 | 836/0.254 | 9.40 | 2.03 | 13.5 | 100 | 0.467 | |
1/0 | 1045/0.254 | 10.50 | 2.03 | 14.6 | 100 | 0.370 | |
产品认证 Certification |
|
| |||||
Specifications
| Parameter | Details |
|---|---|
| Reference Standard | UL758, UL1581 |
| Conductor | Tinned or Bare, Stranded or Solid Copper (28AWG to 500kcmil) |
| Insulation Material | Lead-Free PVC, PASS ROHS |
| Voltage Rating | 1000V AC or 1200V DC |
| Operating Temperature | 90℃ |
| Bending Radius | 4 x Outer Diameter |
UL Style 1032 Electronic Wire
Rating Temp: 90°C
Rating Volt.: 1000V AC or 1200V DC
Reference Standard: UL758, UL1581
Conductor: Preferentially tinned copper stranded, or bare copper stranded, or single conductor (28AWG to 500kcmil).
Insulation: Lead-free PVC insulation, ROHS-compliant.
Rating Volt.: 1000V AC or 1200V DC
Reference Standard: UL758, UL1581
Conductor: Preferentially tinned copper stranded, or bare copper stranded, or single conductor (28AWG to 500kcmil).
Insulation: Lead-free PVC insulation, ROHS-compliant.
Product Design
The UL Style 1032 Electronic Wire is designed for reliable performance in electronic and electrical applications. It features a stranded bare or tinned copper conductor for excellent conductivity and flexibility. The wire uses PVC insulation, which is ROHS compliant, ensuring environmental safety. It is rated for temperatures up to 80℃ and a voltage of 300V, making it suitable for various electronic devices and appliances.
Product Features
- Uniform Insulation Thickness: Ensures precise and efficient stripping and cutting, reducing processing time and minimizing material waste.
- Flame Resistance: Passed UL VW-1 and CSA FT1 vertical flame tests, demonstrating excellent flame resistance for enhanced safety in electronic applications.
- Material Compliance: Lead-free PVC insulation meets ROHS standards, ensuring environmental sustainability and compliance with global regulations.
- Versatile Applications: Designed for internal use in electronic and electrical equipment, offering reliable performance in various industrial and consumer applications.
Product Advantages
- Reliable Electrical Performance: Rated for 1000V AC or 1200V DC, ensuring stable operation under high-voltage conditions.
- Durability: High-quality tinned or bare copper conductors provide excellent conductivity and corrosion resistance, extending the lifespan of the wire.
- Easy Installation: Uniform insulation thickness simplifies handling, stripping, and termination, making it ideal for complex wiring systems.
- Cost-Effective: Combines superior performance with compliance standards, reducing long-term maintenance costs and ensuring compliance with industry regulations.

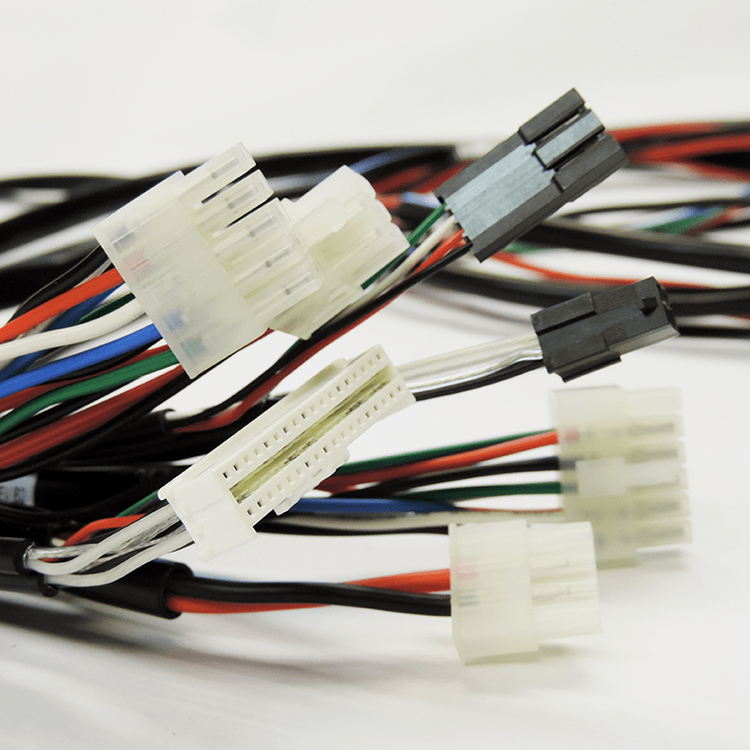

Product Applications
This electronic wire is widely used in household appliances, electronic devices, and industrial equipment. Its reliable performance and safety features make it ideal for internal wiring in applications such as computers, printers, and other office equipment. The UL Style 1032 wire provides stable and efficient power transmission, ensuring the smooth operation of connected devices.
This electronic wire is widely used in household appliances, electronic devices, and industrial equipment. Its reliable performance and safety features make it ideal for internal wiring in applications such as computers, printers, and other office equipment. The UL Style 1032 wire provides stable and efficient power transmission, ensuring the smooth operation of connected devices.
FAQ (Frequently Asked Questions)
- What is the temperature rating of UL Style 1032 Electronic Wire?
The UL Style 1032 Electronic Wire has a temperature rating of 90°C, making it suitable for applications requiring high-temperature resistance. - What voltage rating does this wire support?
This wire is rated for 1000V AC or 1200V DC, ensuring reliable performance in high-voltage electronic and electrical systems. - What materials are used for the conductor?
The conductor is made of preferentially tinned copper stranded, bare copper stranded, or a single conductor, available in sizes ranging from 28AWG to 500kcmil. - Is the insulation environmentally friendly?
Yes, the insulation is lead-free PVC and ROHS-compliant, ensuring environmental sustainability and adherence to global regulations. - What flame resistance tests has this wire passed?
The wire has passed the UL VW-1 and CSA FT1 vertical flame tests, demonstrating excellent flame resistance for enhanced safety. - What are the typical applications for this wire?
This wire is designed for internal use in electronic and electrical equipment, such as industrial machinery, consumer electronics, and control systems. - Is this wire easy to install?
Yes, the uniform insulation thickness ensures easy stripping and cutting, simplifying installation and reducing processing time. - What standards does this wire comply with?
The wire complies with UL758 and UL1581 standards, ensuring reliability and performance in demanding applications.
9.Can this wire be used in harsh environments?
Yes, its high-temperature rating, flame resistance, and durable insulation make it suitable for use in challenging environmental conditions.
10.What are the advantages of using tinned copper conductors?
Tinned copper conductors offer excellent conductivity, corrosion resistance, and longevity, enhancing the wire’s performance and lifespan.
11.How should this wire be stored?
To maintain optimal performance, store the wire in a dry, cool environment away from direct sunlight and moisture.
12.Is this wire suitable for automotive applications?
While primarily designed for electronic and electrical equipment, its high performance and compliance with standards make it suitable for certain automotive applications.
While primarily designed for electronic and electrical equipment, its high performance and compliance with standards make it suitable for certain automotive applications.
13.What is the primary benefit of uniform insulation thickness?
Uniform insulation thickness ensures precise stripping and cutting, reducing material waste and improving installation efficiency.
Uniform insulation thickness ensures precise stripping and cutting, reducing material waste and improving installation efficiency.
14.Does this wire require special maintenance?
No, the wire is designed for low maintenance, but regular inspections are recommended to ensure optimal performance.
No, the wire is designed for low maintenance, but regular inspections are recommended to ensure optimal performance.
15.Can this wire be used in outdoor applications?
While the wire is not specifically designed for outdoor use, its flame resistance and durability may make it suitable for certain protected outdoor environments.
While the wire is not specifically designed for outdoor use, its flame resistance and durability may make it suitable for certain protected outdoor environments.
