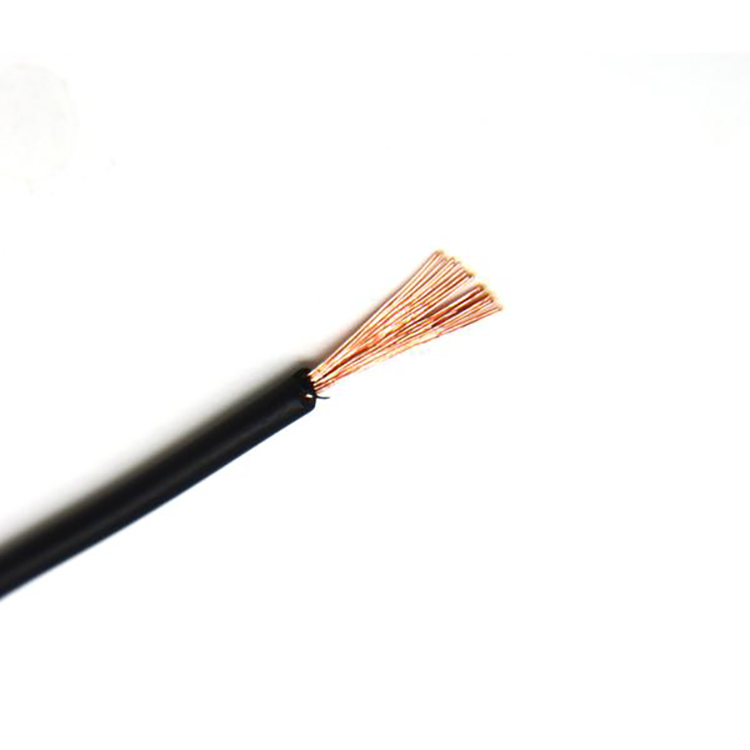

Versatile UL Style 10269 Electronic Wire

UL Style 10269 Electronic Wire is a high - quality wire designed for internal wiring in electronic and electrical equipment. It is widely used in various applications due to its excellent electrical performance and safety features. The wire is manufactured in accordance with UL758 and UL1581 standards, ensuring reliable and safe performance. It has a temperature rating of 80℃, 90℃, or 105℃ and a voltage rating of 1000V or 2000V. The conductor is preferably tinned copper stranded, but bare copper stranded or single conductor options are also available, ranging from 18AWG to 4/0AWG. The insulation is lead - free PVC, which is environmentally friendly and passes ROHS compliance.
  • UL Style 10269

  • Zhongxin

  • 85444921

Availability:
Quantity:
Product Description


Parameter

Details

Reference Standard

UL758, UL1581

Conductor

Tinned or Bare, Stranded or Solid Copper (18AWG to 4/0AWG)

Insulation Material

Lead - Free PVC, PASS ROHS

Voltage Rating

1000V or 2000V

Operating Temperature

80℃, 90℃, 105℃

Bending Radius

4 x Outer Diameter


导体

Conductor

绝缘     Insulation


最大导体电阻

MAX.COND

Resistance

(Ω/km, 20℃, DC)

线规 AWG

构成    (No./mm)

外径

Nom.Dia.

(mm)

绝缘厚度

Nom.Thick.

(mm)

外径

Nom.Dia.

(mm)

24

11/0.16

0.61

0.76

2.20

93.25

22

17/0.16

0.76

0.76

2.35

55.00

20

26/0.16

0.94

0.76

2.55

34.60

18

41/0.16

1.18

0.76

3.78

21.80

16

26/0.254

1.49

0.76

3.10

14.64

14

41/0.254

1.88

0.76

3.50

9.25

12

65/0.254

2.36

0.76

4.00

5.82

10

105/0.254

3.00

0.76

4.60

3.66

9

131/0.254

3.70

0.76

5.30

2.96

8

168/0.254

4.20

1.14

6.50

2.35

7

210/0.254

4.70

1.14

7.00

1.87

6

266/0.254

5.30

1.52

8.40

1.48

5

329/0.254

5.80

1.52

9.00

1.17

4

420/0.254

6.60

1.52

9.70

0.928


导体

Conductor

绝缘     Insulation


最大导体电阻

MAX.COND

Resistance

(Ω/km, 20℃, DC)

线规 AWG

构成    (No./mm)

外径

Nom.Dia.

(mm)

绝缘厚度

Nom.Thick.

(mm)

外径

Nom.Dia.

(mm)

3

532/0.254

7.50

1.52

10.5

0.744

2

665/0.254

8.40

1.52

11.5

0.590

1

836/0.254

9.40

2.03

13.5

0.467

1/0

1045/0.254

10.50

2.03

14.6

0.370

3/0

1672/0.254

13.00

2.03

17.5

0.236

4/0

2109/0.254

14.70

2.03

19.1

0.187

250kcmil

2516/0.254

16.00

2.41

21.4

0.158

300kcmil

2997/0.254

17.50

2.41

23.0

0.132

350kcmil

3478/0.254

18.90

2.41

24.2

0.114

400kcmil

3996/0.254

20.20

2.41

25.6

0.0997

450kcmil

4514/0.254

21.50

2.41

27.0

0.0886

500kcmil

4995/0.254

22.60

2.41

28.0

0.0798


Overview


The Versatile UL Style 10269 Electronic Wire is a multi-purpose electrical wire that offers a wide range of applications and excellent performance characteristics. With its UL certification, this wire meets strict safety and quality standards, ensuring reliable and safe electrical connections. Its versatility allows it to be used in various industries and applications, from electronics manufacturing to home wiring projects.


Features


Wide Range of Gauge Options: The UL Style 10269 Electronic Wire is available in a variety of gauge sizes, ranging from small gauges suitable for low-power applications to larger gauges for higher current-carrying requirements. This wide range of options makes it suitable for a diverse set of electrical applications, allowing users to select the appropriate wire gauge based on their specific needs.

Excellent Electrical Characteristics: The wire features high-quality copper conductors that provide low electrical resistance, enabling efficient power and signal transmission. The insulation material has good electrical insulation properties, reducing the risk of electrical shorts and leakage. This ensures stable and reliable electrical performance in different operating conditions.

Durable and Resistant Construction: The outer insulation of the UL Style 10269 wire is made of a durable thermoplastic material that offers resistance to abrasion, moisture, and chemicals. This makes the wire suitable for use in environments where it may be exposed to rough handling or harsh conditions. The insulation also provides mechanical protection to the internal conductors, extending the wire's lifespan.

Easy Installation: The wire's flexibility and softness make it easy to handle and install. It can be easily routed through conduits, cable trays, or tight spaces, reducing the time and effort required for installation. The smooth surface of the insulation also makes it easier to strip and terminate the wire, facilitating quick and efficient connections.


Application


Electronics Manufacturing: In the electronics manufacturing industry, the Versatile UL Style 10269 Electronic Wire is used for wiring printed circuit boards, connecting components, and creating internal wiring harnesses. Its wide range of gauge options and excellent electrical performance make it suitable for various electronic devices, from small consumer electronics to complex industrial control systems.

Home and Building Wiring: For residential and commercial building wiring projects, the wire can be used for lighting circuits, power outlets, and low-voltage applications such as doorbells and security systems. Its compliance with safety standards ensures the safety of occupants and the proper functioning of electrical systems.

Appliance Wiring: The UL Style 10269 wire is commonly used in the wiring of household appliances, including refrigerators, washing machines, and dishwashers. Its durability and resistance to heat and moisture make it suitable for the demanding operating conditions of these appliances.


FAQ


Q: How do I choose the right gauge of the Versatile UL Style 10269 Electronic Wire for my project?

A: To choose the right gauge, you need to consider the current-carrying requirements of your application, the length of the wire run, and the voltage drop limitations. Refer to electrical codes and the wire's ampacity chart to determine the appropriate gauge for your specific needs.

Q: Can the wire be used in wet environments?

A: The wire's insulation provides some resistance to moisture, but it is not designed for continuous immersion in water. For wet environments, it is recommended to use a wire with enhanced waterproofing features or install the wire in a protected conduit.

Q: Does the UL Style 10269 Electronic Wire require any special tools for installation?

A: Basic electrical tools such as wire strippers, crimpers, and pliers are usually sufficient for installing the wire. However, for larger gauge wires or more complex installations, specialized tools may be required.
