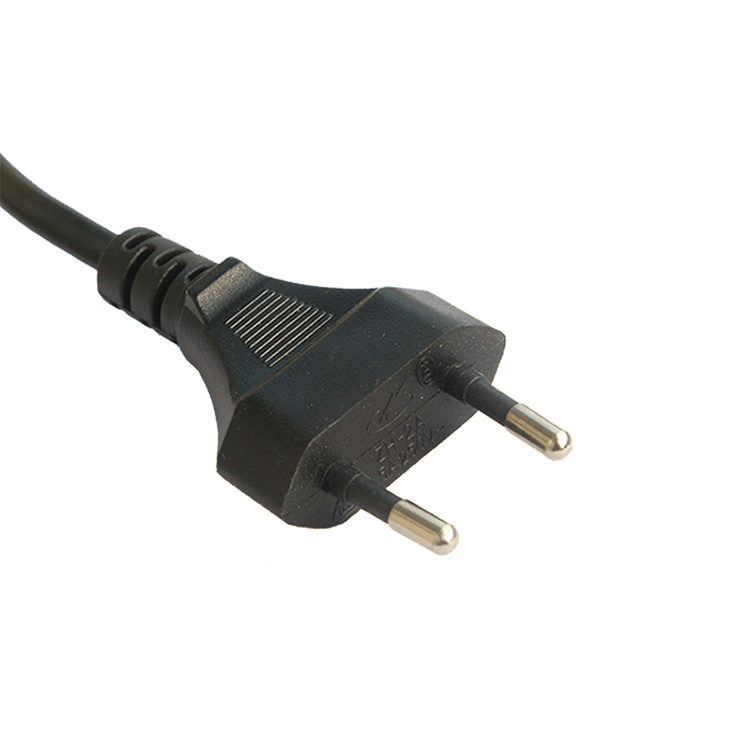

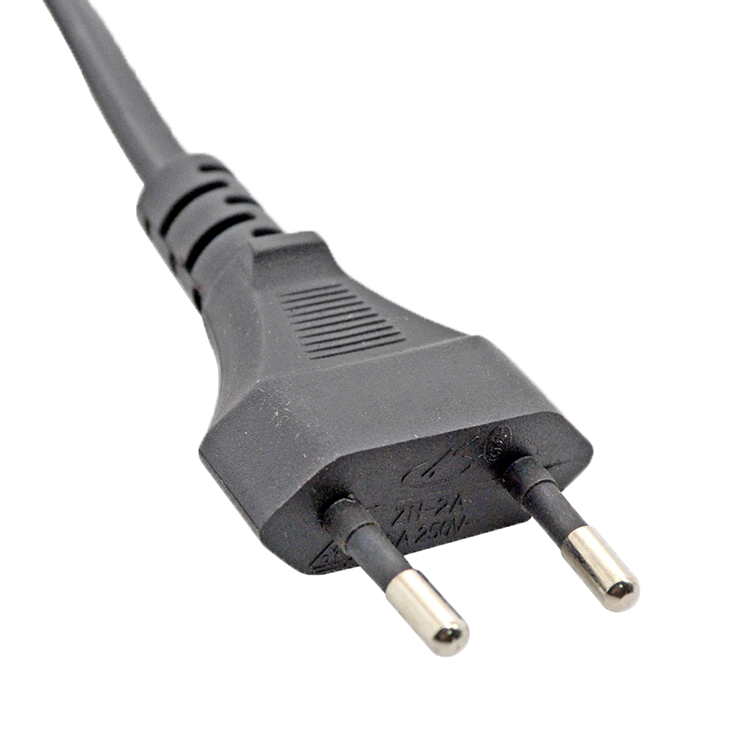

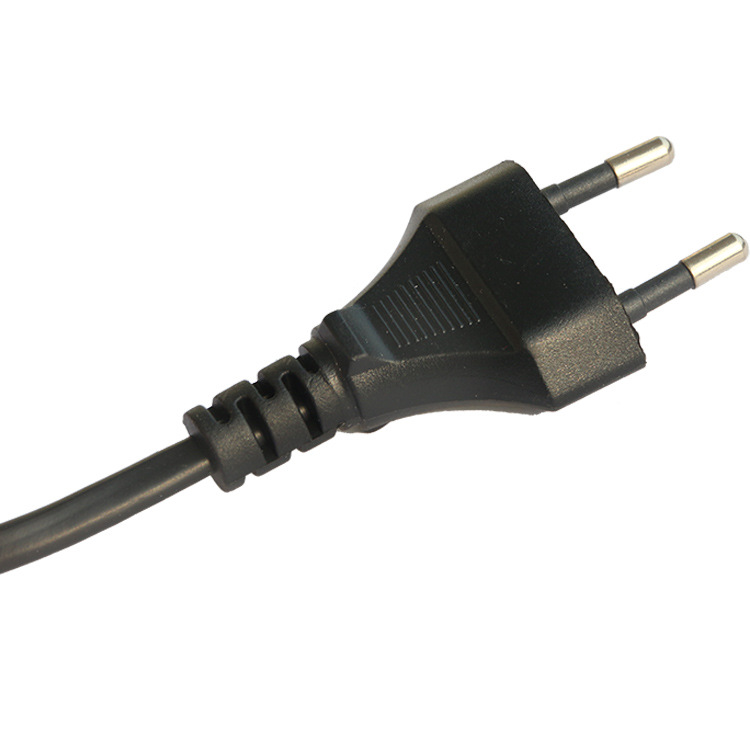

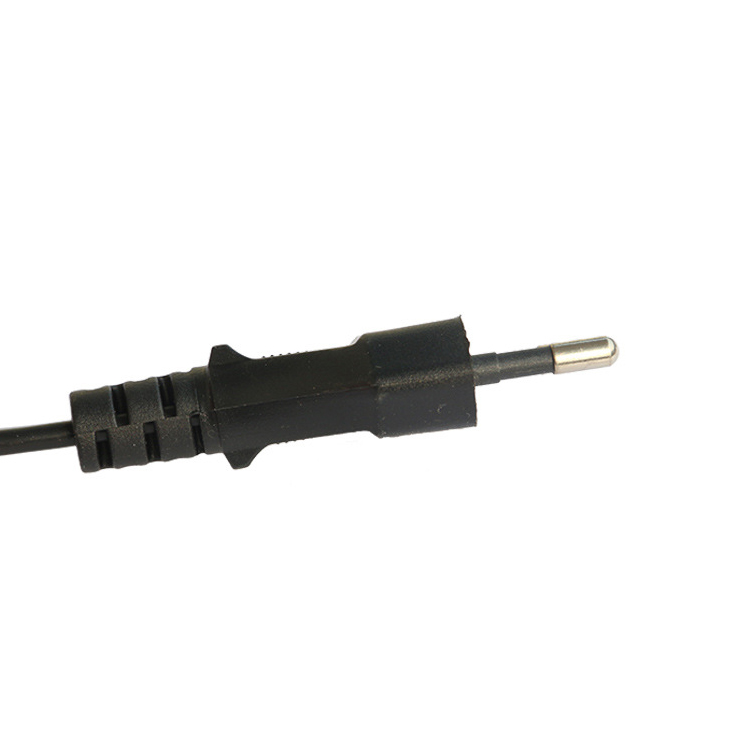

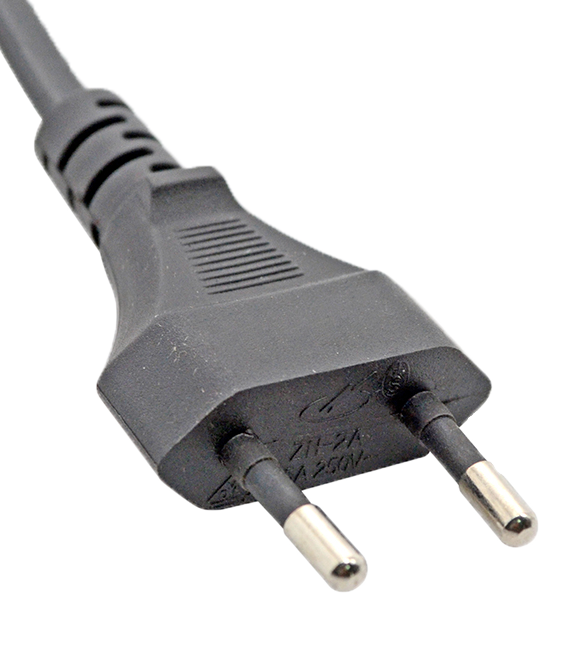

ZH-2A Power Supply Cord
ZH-2A Power Supply Cord: Premium 2.5A/250V Power Cable Compliant with EN 50075 & Swiss Standards
The ZH-2A Power Supply Cord delivers reliable power transmission with stranded copper conductors and durable PVC insulation, ensuring superior conductivity, flexibility, and environmental resistance. Certified by KC and TUV Rheinland, it offers versatile cord configurations for diverse electrical applications.
- Compliant with EN 50075 standard, approved by KC & TUV Rheinland (OCP 0004)
- Available in multiple wire types: H03VVH2-F/H05VVH2-F/H03VV-F/H05VV-F (0.5-1.0mm²)
- Rated for 2.5A/250V with 18AWG/2C to 14AWG/2C conductor options
- Features uniform insulation thickness for easy installation and optimal performance
The ZH-2A Power Supply Cord delivers reliable power transmission with stranded copper conductors and durable PVC insulation, ensuring superior conductivity, flexibility, and environmental resistance. Certified by KC and TUV Rheinland, it offers versatile cord configurations for diverse electrical applications.
- Compliant with EN 50075 standard, approved by KC & TUV Rheinland (OCP 0004)
- Available in multiple wire types: H03VVH2-F/H05VVH2-F/H03VV-F/H05VV-F (0.5-1.0mm²)
- Rated for 2.5A/250V with 18AWG/2C to 14AWG/2C conductor options
- Features uniform insulation thickness for easy installation and optimal performance
-
ZH-2A
-
Zhongxin
-
85444221
| Quantity: | |
|---|---|
Product Description
Product Description
The ZH-2A Power Supply Cord stands as a meticulously engineered power delivery component, specifically tailored for integration into Swiss electrical systems. Crafted with a smooth, resilient PVC outer jacket, this cord offers a premium tactile feel while remaining highly flexible, preventing tangles and simplifying routing in tight installation spaces. It serves as a dependable lifeline for a wide array of devices, ensuring that electricity flows consistently without interruption. By addressing the strict requirements of modern electrical environments, this cord eliminates the common frustrations of loose connections and brittle insulation, providing procurement managers and product designers with a component they can trust for long-term deployment.
Product Design & Application Compatibility
The physical architecture of the ZH-2A is optimized for both durability and precise fitment. Featuring a secure, satisfying click upon insertion, the plug is molded to exact tolerances. It is rated for a current of 2.5A and a voltage of 250V, making it an ideal match for regional power grids. Meeting the stringent EN 50075 standard, the design guarantees exceptional operational safety. Beyond basic functionality, this cord is widely compatible and capable of stably driving various household appliances, security monitoring systems, IT communication equipment, LED lighting arrays, and light industrial instruments, offering a true plug-and-play experience that integrates seamlessly into diverse product ecosystems.
Available Cord Configurations
To accommodate specific mechanical and spatial requirements, the ZH-2A is available with multiple cord variations. Each option maintains the core 2.5A and 250V rating while offering different structural benefits for specific installation environments:
- H03VVH2-F 2×0.5-0.75mm²: A flat, lighter-duty cord suitable for general applications where space-saving routing is necessary.
- H05VVH2-F 2×0.75-1.0mm²: A thicker flat cord designed for general applications requiring enhanced mechanical protection.
- H03VV-F 2×0.5-0.75mm²: A round profile cord providing excellent flexibility for general applications involving frequent movement.
- H05VV-F 2×0.75-1.0mm²: A robust round cord suitable for general applications, offering superior resistance to physical abrasion.
Product Specifications
When selecting electrical components for large-scale manufacturing or assembly, precision in technical specifications is paramount. The ZH-2A is manufactured to exact dimensional and electrical tolerances, ensuring that every unit performs identically to the last. The internal copper conductors are drawn and stranded to provide minimal electrical resistance, which translates to less heat generation and more efficient power delivery. Below is the comprehensive data sheet detailing the exact parameters, certifications, and physical options available. These specifications form the foundation of the cord's reliability, allowing engineers to confidently specify this component in their final product designs.
| Parameter | Value |
|---|---|
| Type No. | ZH-2A |
| Standard | EN 50075 |
| Amperage | 2.5A |
| Voltage | 250V |
| Conductor Size | 18AWG/2C, 16AWG/2C, 14AWG/2C |
| Wire Types | H03VVH2-F 2×0.5-0.75mm², H05VVH2-F 2×0.75-1.0mm², H03VV-F 2×0.5-0.75mm², H05VV-F 2×0.75-1.0mm² |
| Approvals | KC, TUV Rheinland seguranc,a OCP 0004 |
| Color | Black, white, or gray |
| Length | Customizable |
Performance Parameter
Evaluating the performance parameters of the ZH-2A reveals its capability to maintain consistent electrical transmission under varying operational demands. The synergy between the specified amperage, voltage, and the chosen wire type dictates the thermal and electrical stability of the connection. By adhering strictly to the EN 50075 standard, this cord guarantees that performance remains optimal even during prolonged usage cycles, effectively preventing voltage drops that could impair sensitive connected equipment.
| Type No. | Standard | Approvals | Available with cords |
|---|---|---|---|
| ZH-2A | 2.5A 250V~ EN 50075 | KC, TUV Rheinland | H03VVH2-F 2×0.5-0.75mm2 H05VVH2-F 2×0.75-1.0mm2 H03VV-F 2×0.5-0.75mm2 H05VV-F 2×0.75-1.0mm2 |
Product Features
The feature set of the ZH-2A is deliberately engineered to provide maximum versatility and reliability for equipment manufacturers. Every aspect, from the internal copper stranding to the external connector molding, is designed to facilitate easy integration and long-lasting performance.
Conductor Sizes
Available in 18AWG/2C, 16AWG/2C, and 14AWG/2C, the cord can handle different power requirements, allowing for precise matching to the current draw of specific devices without unnecessary bulk.
Wire Types
Compatible with a variety of wire types, including H03VVH2-F 2×0.5-0.75mm², H05VVH2-F 2×0.75-1.0mm², H03VV-F 2×0.5-0.75mm², and H05VV-F 2×0.75-1.0mm², providing options for both flat and round profiles.
Connector Design
The connector on the other end allows for easy interfacing with various devices and appliances. The precision molding ensures a snug fit that resists accidental disconnections caused by vibration or movement.
Approvals & Certification
The cord is rigorously tested and approved by KC and TUV Rheinland with the file number seguranc,a OCP 0004, offering undeniable proof of its safety and compliance for international market entry.
Customization & Volume Flexibility
We provide flexible cable lengths, specific color matching (including standard black, white, or gray), and OEM/ODM plug specification tailoring. Combined with tiered volume benefits, this ensures enterprise clients receive a highly personalized power solution that aligns perfectly with their unique product aesthetics and assembly line requirements.
Product Advantages
Choosing the ZH-2A brings measurable benefits to the final product's lifecycle. Beyond merely conducting electricity, this cord acts as a protective barrier and a reliable conduit, significantly reducing the likelihood of field failures and customer complaints.
- ✔ Compliance with Standards: The ZH-2A meets the requirements of EN 50075, ensuring it is suitable for use in Swiss electrical systems. This strict adherence guarantees that the plug geometry and electrical insulation are perfectly matched to local receptacles.
- ✔ Durable Construction & Quality Control: Made with premium materials, the cord is resistant to wear and tear, providing long-lasting performance. Before leaving the facility, it undergoes rigorous quality control, enduring tens of thousands of bending tests, insertion/extraction fatigue trials, and extreme high/low-temperature aging processes to ensure it maintains stable power transmission under complex and harsh working conditions.
- ✔ Safe and Efficient Protection Mechanisms: The cord delivers a stable power supply, ensuring the safe and efficient operation of connected devices. It features built-in safety designs to handle potential overloads, overvoltage, and short circuits. Paired with a flame-retardant insulation jacket, it thoroughly mitigates fire hazards and the risk of equipment damage.
- ✔ Energy Efficiency & Eco-Compliance: Aligning with global sustainability targets, the cord complies with high-level energy efficiency standards and RoHS directives. It utilizes low-heat, low-loss green materials that not only perform safely but also assist procurement teams in achieving their corporate environmental responsibility goals.
Product Transportation
Ensuring that electrical components arrive in factory-fresh condition is a critical step in the supply chain. Our logistics and packaging protocols are designed to protect the structural integrity and aesthetic finish of every cord during international transit.
Packaging
The cords are carefully packaged in standard export cartons to prevent damage during transit. These heavy-duty, moisture-resistant boxes are structurally reinforced to withstand stacking pressure, ensuring the PVC jackets remain free from scuffs, indentations, or crushing.
Handling
They should be handled with care to avoid exposure to sharp objects or extreme temperatures. Proper palletization and shrink-wrapping are utilized to keep batches secure and organized as they move through distribution centers.
Storage
Store in a dry, cool environment to maintain the integrity of the cord. Keeping the inventory away from direct sunlight and excessive humidity prevents premature aging of the insulation materials, guaranteeing readiness for assembly.
FAQ (Frequently Asked Questions)
1. Q: What are the key features of the ZH-2A Power Supply Cord?
A: The ZH-2A Power Supply Cord features a current rating of 2.5A and a voltage rating of 250V. It uses stranded bare or tinned copper conductors that provide excellent conductivity and flexibility, alongside durable PVC insulation and jacketing that resists environmental wear. It meets the EN 50075 standard and is comprehensively approved by KC and TUV Rheinland with the file number seguranc,a OCP 0004.
2. Q: What standards does the ZH-2A Power Supply Cord comply with?
A: The ZH-2A Power Supply Cord strictly complies with the EN 50075 standard, which is the benchmark for ensuring quality and safety for various electrical systems utilizing this specific plug profile. This compliance guarantees that the cord will interface flawlessly with appropriate wall outlets without risking electrical arcing or mechanical looseness.
3. Q: What are the available color options for the ZH-2A Power Supply Cord?
A: To ensure aesthetic harmony with your final product designs, the ZH-2A Power Supply Cord is available in standard black, white, or gray. Additional color matching can be discussed for specialized production runs depending on specific project requirements.
4. Q: Is the ZH-2A Power Supply Cord environmentally friendly?
A: Yes, the ZH-2A Power Supply Cord is environmentally friendly. It meets ROHS standards, ensuring that it is free from restricted hazardous substances. It uses materials that are safe for the environment, supporting modern manufacturing efforts to reduce ecological footprints while maintaining top-tier electrical performance.
Warranty & After-Sales Support
We understand that reliable components are the backbone of your manufacturing success. To mitigate procurement risks and ensure complete peace of mind, we provide comprehensive after-sales backing for the ZH-2A Power Supply Cord. Our commitment includes a long-term warranty promise covering manufacturing defects, flexible return and exchange policies to accommodate unforeseen production shifts, and a dedicated technical support team guaranteed to respond within 12 hours to address any integration queries or performance evaluations.
