UL Style 3386 Electronic Wire

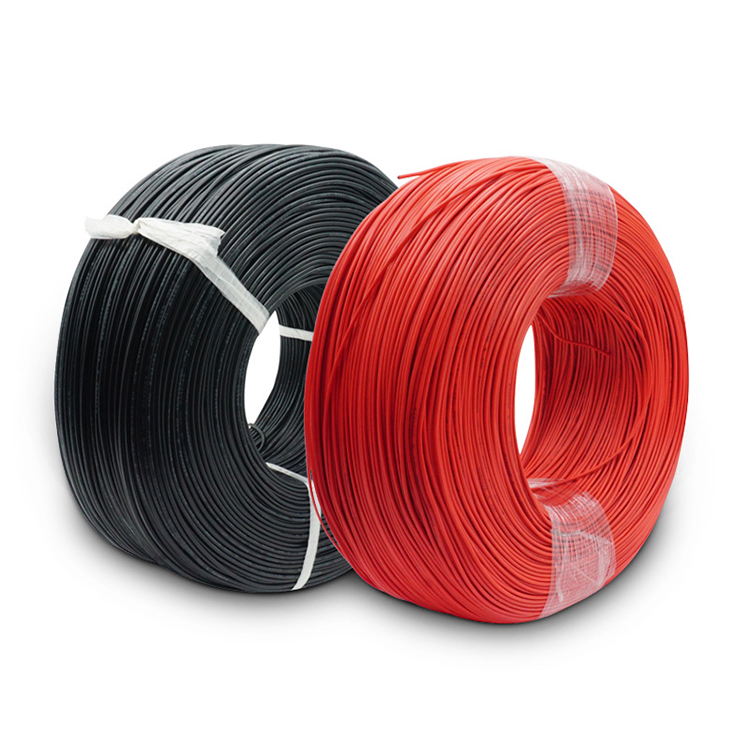

The UL Style 3386 Electronic Wire is a high-quality wire designed for internal wiring in electrical and electronic devices. It features a rated temperature of 105℃ and a rated voltage of 600V, ensuring stable performance in demanding conditions. The wire uses cross-linked polyethylene (XLPE) insulation, which is flame-retardant and passes the UL VW-1 and CSA FT1 vertical flame tests. It is available in various AWG sizes from 32 to 4/0, with options for solid or stranded, tinned or bare copper conductors. The uniform insulation thickness makes it easy to strip and cut, facilitating installation. Additionally, it is environmentally friendly, meeting RoHS standards and using halogen-free materials. This wire is widely used in household appliances, electronic instruments, communication equipment, and automotive electronics, providing reliable power and signal transmission.
-
UL Style 3386
-
Zhongxin
-
85444221
| Quantity: | |
|---|---|
Product Description
wuxi zhonghui's UL Style 3386 Electronic Wire is a high-quality wire designed for internal wiring in electrical and electronic devices. It features a rated temperature of 105℃ and a rated voltage of 600V, ensuring stable performance in demanding conditions. The wire uses cross-linked polyethylene (XLPE) insulation, which is flame-retardant and passes the UL VW-1 and CSA FT1 vertical flame tests. It is available in various AWG sizes from 32 to 4/0, with options for solid or stranded, tinned or bare copper conductors. The uniform insulation thickness makes it easy to strip and cut, facilitating installation. Additionally, it is environmentally friendly, meeting RoHS standards and using halogen-free materials. This wire is widely used in household appliances, electronic instruments, communication equipment, and automotive electronics, providing reliable power and signal transmission.
Specifications
Parameter | Details |
Reference Standard | UL758, UL1581 |
Conductor | Tinned or Bare, Stranded or Solid Copper (30AWG to 4/0AWG) |
Insulation Material | Lead - Free XLPO, PASS ROHS |
Voltage Rating | 600V |
Operating Temperature | 105℃ |
Bending Radius | 4 x Outer Diameter |
Performance Parameter
导体 Conductor | 绝缘 Insulation | 最大导体电阻 MAX.COND Resistance (Ω/km, 20℃, DC) | ||||
线规 AWG | 构成 (No./mm) | 外径 Nom.Dia. (mm) | 绝缘厚度 Nom.Thick. (mm) | 外径 Nom.Dia. (mm) | ||
30 | 7/0.10 | 0.30 | 0.76 | 1.90 | 381 | |
28 | 7/0.127 | 0.38 | 0.76 | 2.00 | 239 | |
26 | 7/0.16 | 0.48 | 0.76 | 2.10 | 150 | |
24 | 11/0.16 | 0.61 | 0.76 | 2.20 | 94.2 | |
22 | 17/0.16 | 0.76 | 0.76 | 2.35 | 59.4 | |
20 | 26/0.16 | 0.94 | 0.76 | 2.55 | 36.7 | |
18 | 16/0.254 | 1.15 | 0.76 | 2.80 | 23.2 | |
16 | 26/0.254 | 1.50 | 0.76 | 3.15 | 14.6 | |
14 | 41/0.254 | 1.88 | 0.76 | 3.55 | 8.96 | |
12 | 65/0.254 | 2.36 | 0.76 | 4.05 | 5.64 | |
10 | 105/0.254 | 3.10 | 0.76 | 4.90 | 3.546 | |
8 | 168/0.254 | 4.25 | 1.15 | 6.60 | 2.23 | |
6 | 266/0.254 | 5.35 | 1.53 | 8.50 | 1.403 | |
4 | 420/0.254 | 6.70 | 1.53 | 9.80 | 0.882 | |
2 | 665/0.254 | 8.45 | 1.53 | 11.60 | 0.5548 | |
1 | 836/0.254 | 9.50 | 2.04 | 13.70 | 0.4398 | |
1/0 | 1045/0.254 | 10.60 | 2.04 | 14.80 | 0.3487 | |
2/0 | 1330/0.254 | 12.00 | 2.04 | 16.20 | 0.2766 | |
3/0 | 1672/0.254 | 13.45 | 2.04 | 17.60 | 0.2194 | |
4/0 | 2109/0.254 | 14.85 | 2.04 | 19.00 | 0.1722 | |
