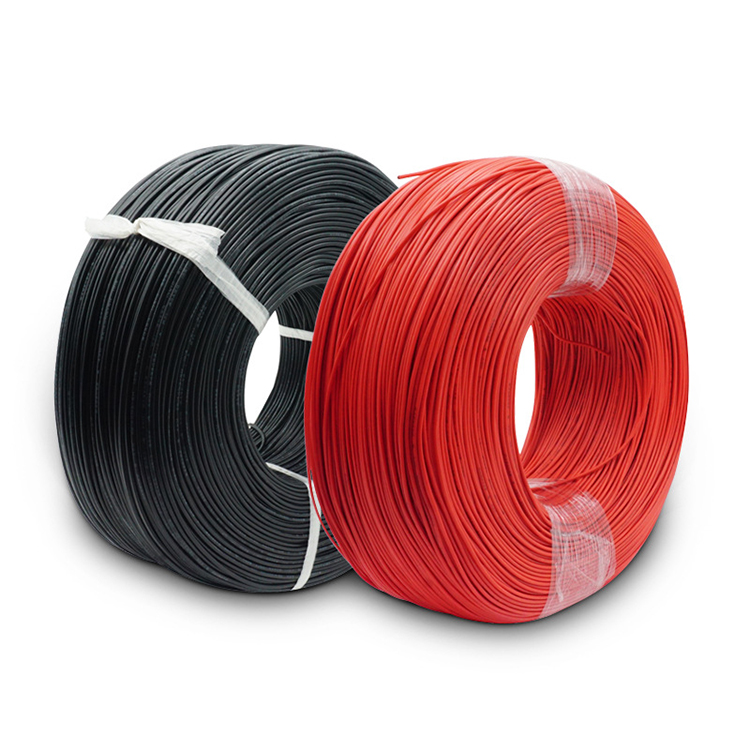

UL Style 1569 Electronic Wire
UL Style 1569 Electronic Wire is designed for internal wiring in electronic and electrical equipment. It features a rated voltage of 300V and is available in rated temperatures of 80°C, 90°C, and 105°C. Constructed with solid or stranded tinned or bare copper conductors ranging from 30 to 2AWG, it uses PVC insulation for durability and flexibility. The wire passes UL VW-1 and CSA FT1 vertical flame tests, ensuring safety in various applications. Its uniform insulation thickness makes it easy to strip and cut, facilitating installation. Compliant with RoHS standards, it is environmentally friendly and suitable for general electronic and electrical equipment internal connections.
-
UL Style 1569
-
Zhongxin
-
85444221
| Quantity: | |
|---|---|
Product Description
wuxi zhonghui's UL Style 1569 Electronic Wire is designed for internal wiring in electronic and electrical equipment. It features a rated voltage of 300V and is available in rated temperatures of 80°C, 90°C, and 105°C. Constructed with solid or stranded tinned or bare copper conductors ranging from 30 to 2AWG, it uses PVC insulation for durability and flexibility. The wire passes UL VW-1 and CSA FT1 vertical flame tests, ensuring safety in various applications. Its uniform insulation thickness makes it easy to strip and cut, facilitating installation. Compliant with RoHS standards, it is environmentally friendly and suitable for general electronic and electrical equipment internal connections.
Specifications
| Parameter | Details |
|---|---|
| Reference Standard | UL758, UL1581 |
| Conductor | Tinned or Bare, Stranded or Solid Copper (28AWG to 2AWG) |
| Insulation Material | Lead-Free PVC, PASS ROHS |
| Voltage Rating | 300V |
| Operating Temperature | 80℃, 90℃, 105℃ |
| Bending Radius | 4 x Outer Diameter |
Performance Parameter
导体 Conductor | 绝缘 Insulation | 最大导体电阻 MAX.COND Resistance (Ω/km, 20℃, DC) | ||||
线规 AWG | 构成 (No./mm) | 外径 Nom.Dia. (mm) | 绝缘厚度 Nom.Thick. (mm) | 外径 Nom.Dia. (mm) | ||
26 | 7/0.16 | 0.48 | 0.38 | 1.30 | 148.94 | |
24 | 11/0.16 | 0.61 | 0.38 | 1.43 | 93.25 | |
22 | 17/0.16 | 0.76 | 0.38 | 1.58 | 55.00 | |
20 | 26/0.16 | 0.94 | 0.38 | 1.76 | 34.60 | |
18 | 41/0.16 | 1.18 | 0.38 | 2.00 | 21.80 | |
16 | 26/0.254 | 1.49 | 0.38 | 2.32 | 14.64 | |
14 | 41/0.254 | 1.88 | 0.38 | 2.70 | 9.25 | |
12 | 65/0.254 | 2.36 | 0.38 | 3.20 | 5.82 | |
10 | 105/0.254 | 3.00 | 0.38 | 4.00 | 3.66 | |
9 | 131/0.254 | 3.70 | 0.76 | 5.30 | 2.96 | |
8 | 168/0.254 | 4.20 | 0.76 | 5.80 | 2.35 | |
7 | 210/0.254 | 4.70 | 0.76 | 6.30 | 1.87 | |
6 | 266/0.254 | 5.30 | 0.76 | 6.90 | 1.48 | |
5 | 329/0.254 | 5.80 | 0.76 | 7.50 | 1.17 | |
4 | 420/0.254 | 6.60 | 0.76 | 8.20 | 0.928 | |
3 | 532/0.254 | 7.50 | 0.76 | 9.10 | 0.744 | |
2 | 665/0.254 | 8.40 | 0.76 | 10.0 | 0.590 | |
产品认证 Certification |
|
| ||||
Product Design
The UL Style 1569 Electronic Wire is designed for reliable performance in various electrical applications. It features a stranded bare or tinned copper conductor for excellent conductivity and flexibility. The wire uses PVC insulation and jacketing, which are ROHS compliant, ensuring environmental safety. With a temperature rating of up to 80℃ and a voltage rating of 300V, it is suitable for use in electronic devices and appliances.
The UL Style 1569 Electronic Wire is designed for reliable performance in various electrical applications. It features a stranded bare or tinned copper conductor for excellent conductivity and flexibility. The wire uses PVC insulation and jacketing, which are ROHS compliant, ensuring environmental safety. With a temperature rating of up to 80℃ and a voltage rating of 300V, it is suitable for use in electronic devices and appliances.
UL Style 1569 Electronic Wire is designed for internal wiring in electronic and electrical equipment. Key features include:
- Temperature Ratings: Available in 80°C, 90°C, and 105°C, ensuring adaptability to various operating conditions.
- Voltage Rating: Rated at 300V, suitable for standard electrical applications.
- Conductor: Preferentially tinned copper stranded, or bare copper stranded or single conductor, ranging from 28AWG to 2AWG, providing excellent conductivity and flexibility.
- Insulation: Lead-free PVC insulation that passes ROHS certification, ensuring environmental safety and durability.
- Uniform Insulation Thickness: Ensures easy stripping and cutting, facilitating installation and processing.
- Flame Resistance: Passes UL VW-1 and CSA FT1 vertical flame tests, ensuring safety in various applications.
Product Advantages
- Safety: Certified to meet strict safety standards, ensuring reliable performance in electronic and electrical equipment.
- Durability: Constructed with high-quality materials that resist wear and tear, ensuring long-term performance.
- Flexibility: Available in a wide range of conductor sizes and temperature ratings, making it adaptable to different environments and applications.
- Environmental Friendly: Lead-free PVC insulation and ROHS compliance ensure reduced environmental impact.
- Ease of Use: Uniform insulation thickness makes it easy to strip and cut, simplifying installation and reducing labor costs.
- Wide Range of Applications: Suitable for internal wiring in various electronic and electrical equipment, providing a versatile solution for power and signal connections.
Product Applications

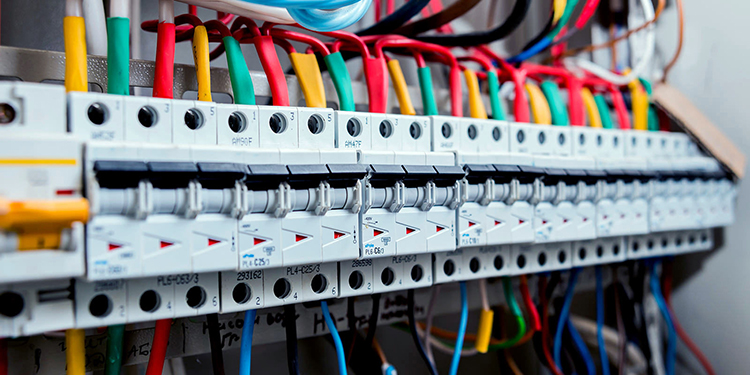

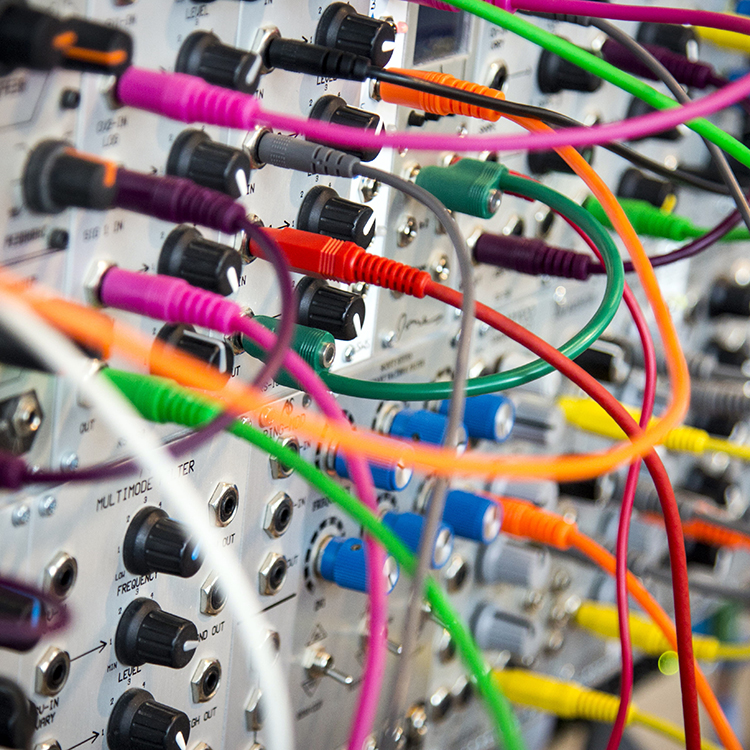

This electronic wire is widely used in household appliances, electronic devices, and industrial equipment. Its reliable performance and safety features make it ideal for internal wiring in various applications. The UL Style 1569 wire provides stable and efficient power transmission, ensuring the smooth operation of connected devices.
This electronic wire is widely used in household appliances, electronic devices, and industrial equipment. Its reliable performance and safety features make it ideal for internal wiring in various applications. The UL Style 1569 wire provides stable and efficient power transmission, ensuring the smooth operation of connected devices.
FAQ (Frequently Asked Questions)
- What temperature ratings are available for UL Style 1569 Electronic Wire?
UL Style 1569 Electronic Wire is available in temperature ratings of 80°C, 90°C, and 105°C, ensuring adaptability to various operating conditions. - What is the voltage rating of this wire?
This wire has a voltage rating of 300V, making it suitable for standard electrical applications. - What standards does this wire comply with?
This wire complies with UL758 and UL1581 standards, ensuring adherence to safety and quality regulations. - What type of conductor is used in this wire?
The wire uses preferentially tinned copper stranded, or bare copper stranded or single conductor, ranging from 28AWG to 2AWG, ensuring excellent conductivity and flexibility. - What is the insulation material used in this wire?
The insulation material used is lead-free PVC, which passes ROHS certification, ensuring environmental safety and resistance to wear and tear. - What is the minimum bending radius for this wire?
The minimum bending radius is 4 times the outer diameter of the wire, ensuring flexibility without causing damage during installation or use. - What are typical applications for this product?
This wire is suitable for internal wiring in various electronic and electrical equipment, providing a versatile solution for power and signal connections. - How should I clean and maintain this wire?
Regularly inspect the wire for damage. Clean it with a mild detergent and water. Avoid using abrasive cleaners or harsh chemicals that could damage the insulation. - Can this wire be used outdoors?
Yes, the wire is suitable for both indoor and outdoor use due to its durable jacketing, which provides resistance to environmental stress and UV exposure. - What are the advantages of using this wire?
UL Style 1569 Electronic Wire offers safety, durability, flexibility, and compliance with international standards, making it an ideal choice for power and signal connections in electronic and electrical equipment. - What is the difference between tinned and bare copper conductors?
Tinned copper conductors offer better corrosion resistance and are ideal for harsh environments, while bare copper conductors are more cost-effective and suitable for general use. - How do I choose the right wire gauge for my application?
Select a wire gauge based on the specific current requirements of your device or environment. For example, choose a smaller gauge (e.g., 2AWG) for high-current applications or a larger gauge (e.g., 28AWG) for low-current applications.
