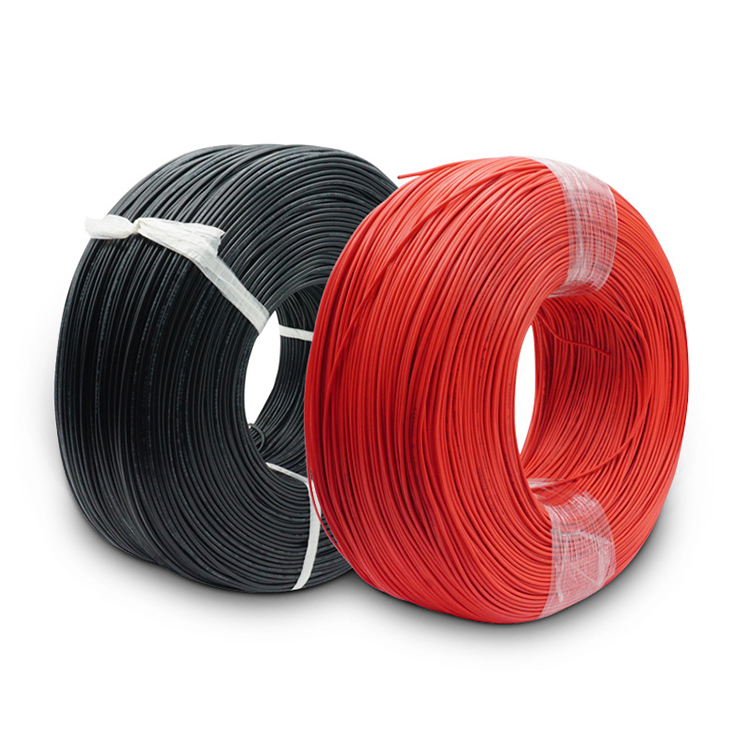

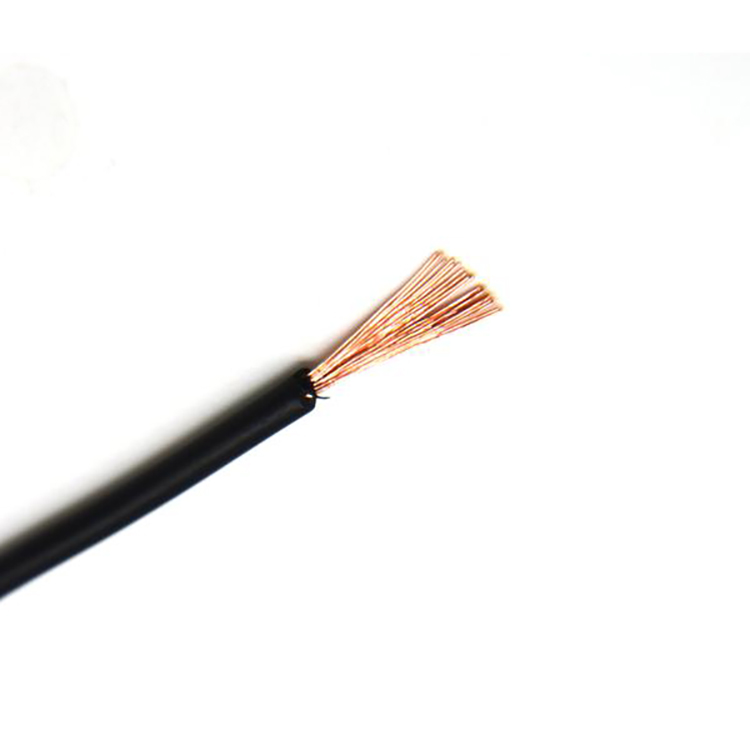

UL Style 1284 Electronic Wire
The UL Style 1284 Electronic Wire is a high-quality wire designed for internal wiring in electrical and electronic devices. It features PVC insulation, providing excellent temperature, pressure, and aging resistance. Rated for 105°C and 600V AC, this wire is suitable for applications such as motor leads, internal wiring of appliances, computers, test equipment, and other office and control equipment. It is available in various AWG sizes from 8 to 2, with options for solid or stranded, tinned or bare copper conductors. The wire is RoHS compliant and meets standards like UL 758 and CSA CL1251, ensuring reliability and safety in demanding environments.
-
UL Style 1284
-
Zhongxin
-
85444221
| Quantity: | |
|---|---|
Product Description
wuxi zhonghui's UL Style 1284 Electronic Wire is a high-quality wire designed for internal wiring in electrical and electronic devices. It features PVC insulation, providing excellent temperature, pressure, and aging resistance. Rated for 105°C and 600V AC, this wire is suitable for applications such as motor leads, internal wiring of appliances, computers, test equipment, and other office and control equipment. It is available in various AWG sizes from 8 to 2, with options for solid or stranded, tinned or bare copper conductors. The wire is RoHS compliant and meets standards like UL 758 and CSA CL1251, ensuring reliability and safety in demanding environments.
Specifications
Parameter | Details |
Reference Standard | UL758, UL1581 |
Conductor | Tinned or Bare, Stranded or Solid Copper (8AWG to 500kcmil) |
Insulation Material | Lead - Free PVC, Oil - Resistant (Optional), PASS ROHS |
Voltage Rating | 600V |
Operating Temperature | 105℃ |
Bending Radius | 4 x Outer Diameter |
Performance Parameter
导体 Conductor | 绝缘 Insulation | 最大导体电阻 MAX.COND Resistance (Ω/km, 20℃, DC) | ||||
线规 AWG | 构成 (No./mm) | 外径 Nom.Dia. (mm) | 绝缘厚度 Nom.Thick. (mm) | 外径 Nom.Dia. (mm) | ||
8 | 168/0.254 | 4.20 | 2.03 | 8.30 | 2.35 | |
7 | 210/0.254 | 4.70 | 2.03 | 8.80 | 1.87 | |
6 | 266/0.254 | 5.30 | 2.03 | 9.40 | 1.48 | |
5 | 329/0.254 | 5.80 | 2.03 | 10.0 | 1.17 | |
4 | 420/0.254 | 6.60 | 2.03 | 10.7 | 0.928 | |
3 | 532/0.254 | 7.50 | 2.03 | 11.5 | 0.744 | |
2 | 665/0.254 | 8.40 | 2.03 | 12.5 | 0.590 | |
1 | 836/0.254 | 9.40 | 2.03 | 13.5 | 0.467 | |
1/0 | 1045/0.254 | 10.50 | 2.03 | 14.6 | 0.370 | |
2/0 | 1330/0.254 | 11.90 | 2.03 | 16.0 | 0.297 | |
3/0 | 1672/0.254 | 13.00 | 2.03 | 17.5 | 0.236 | |
4/0 | 2109/0.254 | 14.70 | 2.03 | 19.1 | 0.187 | |
250kcmil | 2516/0.254 | 16.00 | 2.41 | 21.4 | 0.158 | |
300kcmil | 2997/0.254 | 17.50 | 2.41 | 23.0 | 0.132 | |
350kcmil | 3478/0.254 | 18.90 | 2.41 | 24.2 | 0.114 | |
400kcmil | 3996/0.254 | 20.20 | 2.41 | 25.6 | 0.0997 | |
450kcmil | 4514/0.254 | 21.50 | 2.41 | 27.0 | 0.0886 | |
500kcmil | 4995/0.254 | 22.60 | 2.41 | 28.0 | 0.0798 | |
产品认证 Certification |
|
| ||||
Product Description:
The UL Style 1284 Electronic Wire is designed for reliable performance in various electrical applications. It features a stranded bare or tinned copper conductor for excellent conductivity and flexibility. The wire uses XLPO insulation, ensuring high thermal stability and resistance to environmental stress. Rated for 125℃ and 300V, it meets standards such as UL758 and UL1581, guaranteeing safety and reliability. The uniform insulation thickness ensures easy stripping and cutting, enhancing installation efficiency.
Product Design:
The UL Style 1284 Electronic Wire is constructed with stranded bare or tinned copper conductors for superior conductivity and flexibility. The XLPO insulation provides excellent thermal stability and resistance to environmental factors. The design ensures uniform insulation thickness for easy installation and optimal performance. It is available in various AWG sizes from 32 to 10, making it suitable for different power requirements. The wire is also ROHS compliant, ensuring environmental safety.
The UL Style 1284 Electronic Wire is constructed with stranded bare or tinned copper conductors for superior conductivity and flexibility. The XLPO insulation provides excellent thermal stability and resistance to environmental factors. The design ensures uniform insulation thickness for easy installation and optimal performance. It is available in various AWG sizes from 32 to 10, making it suitable for different power requirements. The wire is also ROHS compliant, ensuring environmental safety.
Technical Features
- Uniform Insulation Thickness: Ensures easy stripping and cutting during installation.
- Conductor: Tinned or bare, stranded or solid copper conductors (8AWG to 500kcmil), providing excellent flexibility and conductivity.
- Insulation Material: Lead - free PVC insulation, which is durable and environmentally friendly. Oil - resistant insulation is available as an optional feature.
- Voltage Rating: 600V, making it suitable for a wide range of electrical systems.
- Temperature Rating: 105℃, making it suitable for high - temperature environments.
Product Advantages
- High - Quality Conductors: The wire uses tinned or bare copper conductors, providing excellent electrical conductivity and mechanical strength.
- Durable Insulation: The lead - free PVC insulation is durable and environmentally friendly, ensuring long - term performance.
- Flame Retardancy: The wire has passed the UL VW - 1 and CSA FT1 vertical flame tests, ensuring enhanced fire safety.
- Versatile Applications: Suitable for a wide range of electronic and electrical equipment, including consumer electronics, industrial machinery, and communication systems.
Product Applications:
This electronic wire is widely used in household appliances, electronic devices, and industrial equipment. Its reliable performance and safety features make it ideal for internal wiring in applications such as computers, printers, and other office equipment. The UL Style 1284 wire provides stable and efficient power transmission, ensuring the smooth operation of connected devices. Whether used in residential, commercial, or industrial settings, this wire offers durable and safe electrical connections.
This electronic wire is widely used in household appliances, electronic devices, and industrial equipment. Its reliable performance and safety features make it ideal for internal wiring in applications such as computers, printers, and other office equipment. The UL Style 1284 wire provides stable and efficient power transmission, ensuring the smooth operation of connected devices. Whether used in residential, commercial, or industrial settings, this wire offers durable and safe electrical connections.
FAQ (Frequently Asked Questions)
1. Q: What is the UL Style 1284 Electronic Wire used for?
A:
The UL Style 1284 Electronic Wire is designed for internal wiring in electronic and electrical devices. It is suitable for applications such as motor leads, internal wiring of appliances, computers, test equipment, and other office and control equipment.
A:
The UL Style 1284 Electronic Wire is designed for internal wiring in electronic and electrical devices. It is suitable for applications such as motor leads, internal wiring of appliances, computers, test equipment, and other office and control equipment.
2. Q: What are the key features of the UL Style 1284 Electronic Wire?
A:The UL Style 1284 Electronic Wire features PVC insulation, providing excellent temperature, pressure, and aging resistance. It is rated for 105°C and 600V AC. It is available in various AWG sizes from 8 to 2, with options for solid or stranded, tinned or bare copper conductors.
3. Q: What applications is the UL Style 1284 Electronic Wire suitable for?
A:The UL Style 1284 Electronic Wire is suitable for a wide range of applications, including motor leads, internal wiring of appliances, computers, test equipment, and other office and control equipment. It provides reliable power and signal transmission for these devices.
4. Q: How should I install and use the UL Style 1284 Electronic Wire?
A:Ensure the wire is installed in accordance with local electrical codes and standards. Avoid excessive bending or stretching. Use appropriate connectors and terminations to ensure a secure connection. Regularly inspect the wire for any signs of damage or wear.
5. Q: How should I maintain the UL Style 1284 Electronic Wire?
A:Regularly inspect the wire for physical damage or wear. Keep the wire clean and free from dirt and debris. Ensure connections are secure and free from corrosion. Replace the wire immediately if any damage is detected.
6. Q: Is the UL Style 1284 Electronic Wire environmentally friendly?
A:Yes, the UL Style 1284 Electronic Wire is environmentally friendly. It meets RoHS standards and uses materials that are safe for the environment.
7. Q: What standards does the UL Style 1284 Electronic Wire comply with?
A:The UL Style 1284 Electronic Wire complies with standards such as UL 758 and CSA CL1251, ensuring quality and safety for various electrical systems.
