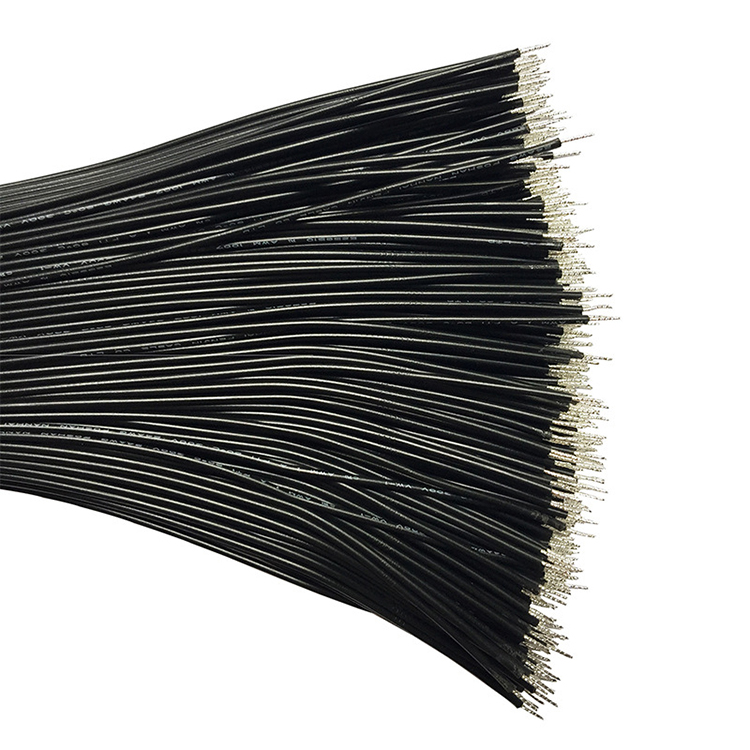

UL Style 1283 Electronic Wire
UL Style 1283 Electronic Wire
Product Description
UL Style 1283 Electronic Wire is a high-quality wire designed for internal wiring in electronic and electrical equipment. It is widely used in various applications due to its excellent electrical performance and safety features. The wire is manufactured in accordance with UL758 and UL1581 standards, ensuring reliable and safe performance. It has a temperature rating of 105℃ and a voltage rating of 600V. The conductor is preferably tinned copper stranded, but bare copper stranded or single conductor options are also available, ranging from 8AWG to 2AWG. The insulation is lead-free PVC, which is environmentally friendly and passes ROHS compliance. Additionally, oil-resistant insulation is available as an optional feature.
Product Description
UL Style 1283 Electronic Wire is a high-quality wire designed for internal wiring in electronic and electrical equipment. It is widely used in various applications due to its excellent electrical performance and safety features. The wire is manufactured in accordance with UL758 and UL1581 standards, ensuring reliable and safe performance. It has a temperature rating of 105℃ and a voltage rating of 600V. The conductor is preferably tinned copper stranded, but bare copper stranded or single conductor options are also available, ranging from 8AWG to 2AWG. The insulation is lead-free PVC, which is environmentally friendly and passes ROHS compliance. Additionally, oil-resistant insulation is available as an optional feature.
-
UL Style 1283
-
Zhongxin
-
85444221
| Quantity: | |
|---|---|
Product Description
wuxi zhonghui's UL Style 1283 Electronic Wire
Product Description
The UL Style 1283 Electronic Wire is a high-quality wire designed for internal wiring in electronic and electrical equipment. It has the following specifications:
Rating Temperature: The wire has a temperature rating of 105℃, allowing it to withstand higher temperature environments.
Rating Voltage: The wire has a rating voltage of 600V, making it suitable for a wide range of electronic applications.
Reference Standard: The wire complies with the international standards UL758 and UL1581, ensuring quality and safety.
Conductor: The wire features a preferentially tinned copper stranded conductor, or alternatively, a bare copper stranded or single conductor. The wire is available in sizes ranging from 8AWG to 2AWG, providing options for different wiring needs.
Insulation: The insulation material used is lead-free PVC, which meets the requirements of ROHS regulations. It provides protection and insulation for the conductor. Additionally, an optional oil-resistant insulation is available for applications that require resistance to oil and other similar substances.
Product Specifications
| Parameter | Value |
|---|---|
| Rating Temp | 105℃ |
| Rating Volt. | 600V |
| Reference Standard | UL758, UL1581 |
| Conductor | Preferentially tinned copper stranded, or bare copper stranded or single conductor, 8AWG~2AWG |
| Insulation | Lead-free PVC insulation, Oil Resistant (Optional), Passed ROHS |
Performance Parameter
导体 Conductor | 绝缘 Insulation | 最大导体电阻 MAX.COND Resistance (Ω/km, 20℃, DC) | ||||
线规 AWG | 构成 (No./mm) | 外径 Nom.Dia. (mm) | 绝缘厚度 Nom.Thick. (mm) | 外径 Nom.Dia. (mm) | ||
8 | 168/0.254 | 4.20 | 1.52 | 7.30 | 2.35 | |
7 | 210/0.254 | 4.70 | 1.52 | 7.80 | 1.87 | |
6 | 266/0.254 | 5.30 | 1.52 | 8.40 | 1.48 | |
5 | 329/0.254 | 5.80 | 1.52 | 9.00 | 1.17 | |
4 | 420/0.254 | 6.60 | 1.52 | 9.70 | 0.928 | |
3 | 532/0.254 | 7.50 | 1.52 | 10.5 | 0.744 | |
2 | 665/0.254 | 8.40 | 1.52 | 11.5 | 0.590 | |
产品认证 Certification |
|
| ||||
Product Features:
The wire has uniform insulation thickness, ensuring easy stripping and cutting during installation. It has also passed the UL VW-1 and CSA FT1 vertical flame tests, ensuring its fire resistance and safety.
The UL Style 1283 Electronic Wire is commonly used for internal wiring in various electronic and electrical equipment, including appliances, computers, and control panels. Its high temperature rating allows for use in applications where higher temperatures may be present. The tinned or bare copper conductor ensures good electrical conductivity, while the lead-free PVC insulation provides protection and insulation.
This wire is reliable and durable, meeting the necessary standards for electronic wiring applications. Its compliance with international standards and adherence to ROHS regulations ensure its quality and environmental friendliness. Whether used in consumer electronics or industrial equipment, the UL Style 1283 Electronic Wire provides a safe and efficient solution for internal wiring needs.
Product Advantages
- High-Quality Conductors: The wire uses tinned or bare copper conductors, providing excellent electrical conductivity and mechanical strength.
- Durable Insulation: The lead-free PVC insulation is durable and environmentally friendly, ensuring long-term performance.
- Flame Retardancy: The wire has passed the UL VW-1 and CSA FT1 vertical flame tests, ensuring enhanced fire safety.
- Versatile Applications: Suitable for a wide range of electronic and electrical equipment, including consumer electronics, industrial machinery, and communication systems.

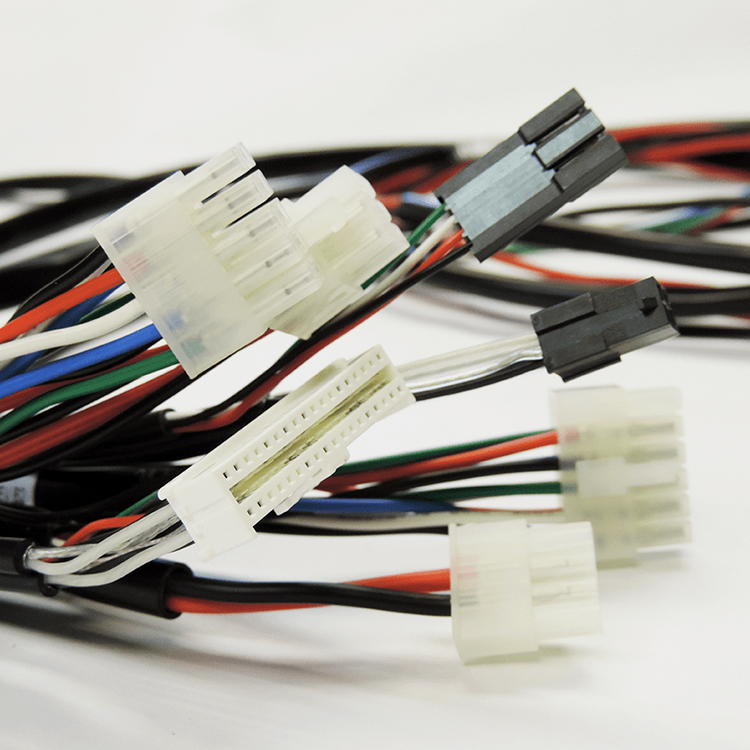

Applications
Consumer Electronics: Ideal for internal wiring in consumer electronics such as TVs, radios, and computers.
Industrial Machinery: Suitable for internal wiring in industrial machinery and equipment.
Communication Systems: Used in communication systems for signal transmission.
Appliances: Suitable for internal wiring in various appliances and equipment.
Transportation & Storage

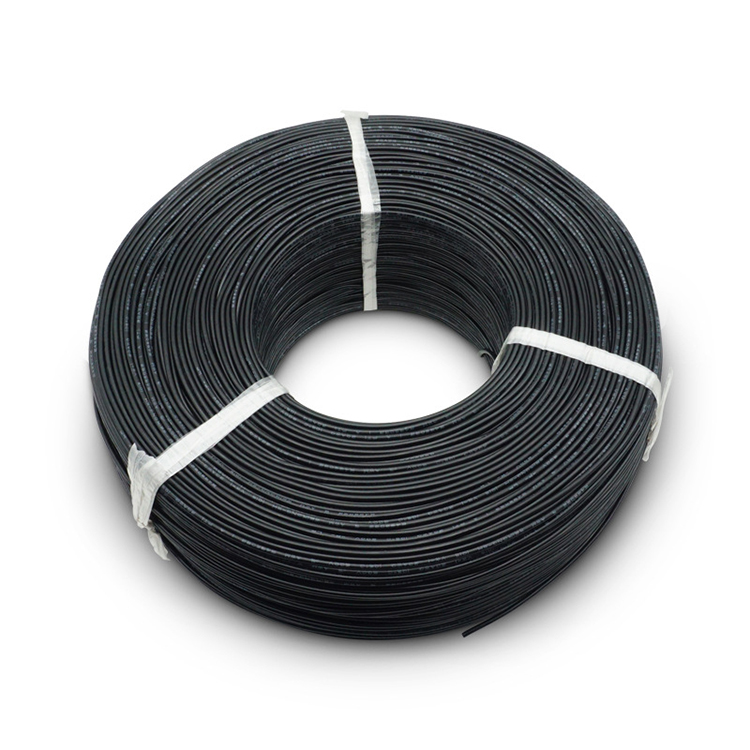

Packaging: The wire is supplied in coils with protective wrapping to prevent damage during transit.
Handling: Designed for easy loading and unloading; avoid sharp bends or excessive tension to maintain wire integrity.
Storage: Store in a dry, ventilated environment away from direct sunlight and corrosive substances to ensure long-term performance.
Applications
Consumer Electronics: Ideal for internal wiring in consumer electronics such as TVs, radios, and computers.
Industrial Machinery: Suitable for internal wiring in industrial machinery and equipment.
Communication Systems: Used in communication systems for signal transmission.
Appliances: Suitable for internal wiring in various appliances and equipment.
Transportation & Storage
Packaging: The wire is supplied in coils with protective wrapping to prevent damage during transit.
Handling: Designed for easy loading and unloading; avoid sharp bends or excessive tension to maintain wire integrity.
Storage: Store in a dry, ventilated environment away from direct sunlight and corrosive substances to ensure long-term performance.
FAQ (Frequently Asked Questions)
1. Q: What is the UL Style 1283 Electronic Wire used for?
A:
The UL Style 1283 Electronic Wire is designed for internal wiring in electronic and electrical devices. It is suitable for applications such as motor leads, internal wiring of appliances, computers, test equipment, and other office and control equipment.
A:
The UL Style 1283 Electronic Wire is designed for internal wiring in electronic and electrical devices. It is suitable for applications such as motor leads, internal wiring of appliances, computers, test equipment, and other office and control equipment.
2. Q: What are the key features of the UL Style 1283 Electronic Wire?
A:The UL Style 1283 Electronic Wire features PVC insulation, providing excellent temperature, pressure, and aging resistance. It is rated for 105°C and 600V AC. It is available in various AWG sizes from 8 to 2, with options for solid or stranded, tinned or bare copper conductors.
3. Q: What applications is the UL Style 1283 Electronic Wire suitable for?
A:The UL Style 1283 Electronic Wire is suitable for a wide range of applications, including motor leads, internal wiring of appliances, computers, test equipment, and other office and control equipment. It provides reliable power and signal transmission for these devices.
4. Q: What standards does the UL Style 1283 Electronic Wire comply with?
A:The UL Style 1283 Electronic Wire complies with standards such as UL 758 and CSA CL1251, ensuring quality and safety for various electrical systems.
5.Q: Which port is the nearest from you?
A: Only 40 minutes from Shanghai by high-speed rail
6.Q: What's the leading time?
A: Delivery will be arranged within 1-3 weeks after advance payment
7.Q：What's the After-service time?
A：We will reply Within 12 hours as soon as possible
