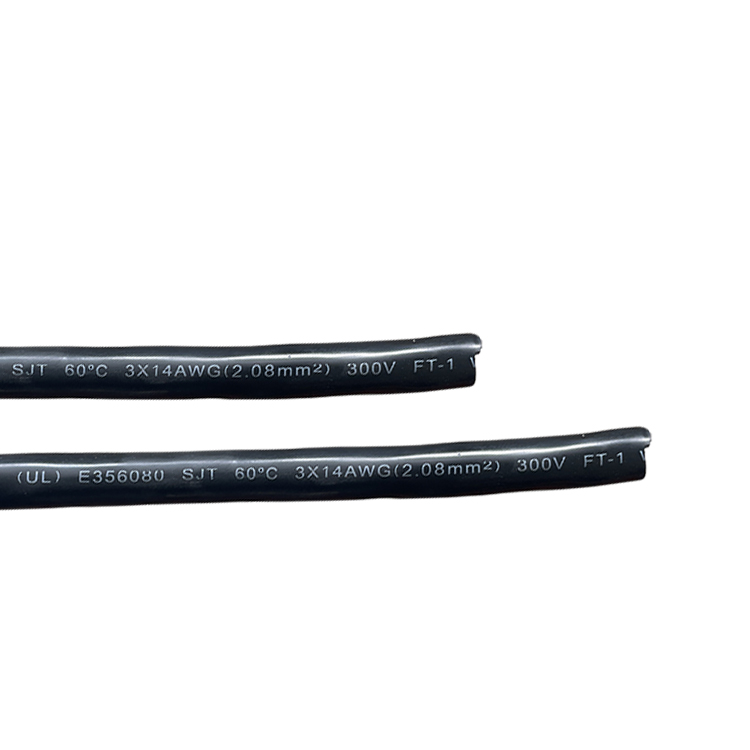

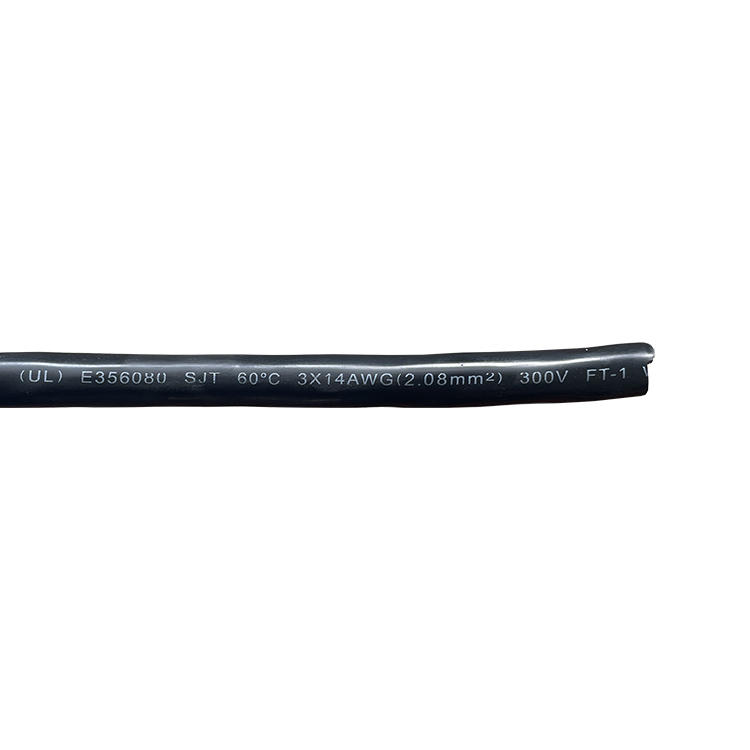

SJT Ordinary PVC Sheathed Cord
The SJT Ordinary PVC Sheathed Cord is a versatile cable designed for general-purpose electrical applications. It features excellent flexibility and durability, making it suitable for use in various environments. The cable is constructed with stranded copper conductors and PVC insulation and jacketing, ensuring resistance to moisture, chemicals, and mechanical stress. It meets standards such as UL and is commonly used in household appliances, electronic devices, and industrial equipment. The SJT cord is ideal for internal wiring and provides reliable performance in standard electrical systems.
-
SJT
-
zhongxin
-
854449
| Quantity: | |
|---|---|
Product Description
wuxi zhonghui's SJT Ordinary PVC Sheathed Cord is a versatile cable designed for general-purpose electrical applications. It features excellent flexibility and durability, making it suitable for use in various environments. The cable is constructed with stranded copper conductors and PVC insulation and jacketing, ensuring resistance to moisture, chemicals, and mechanical stress. It meets standards such as UL and is commonly used in household appliances, electronic devices, and industrial equipment. The SJT cord is ideal for internal wiring and provides reliable performance in standard electrical systems.
| Product Specifications | Details |
|---|---|
| Product Name | SJT Ordinary PVC Sheathed Cord |
| Rating Temp | 60℃, 75℃, 90℃, 105℃ |
| Rating Volt. | 300V |
| Reference Standard | UL62, UL2556 |
| Conductor | Stranded bare or tinned copper conductor |
| Insulation | PVC, ROHS compliant |
| Jacket | PVC, ROHS compliant |
| Application | Internal & exterior wiring for electronic appliances, power instruments, and auto equipments |
Performance Parameter
C×AWG | Insulation | Jacket | Max Resistance (Ω/km, 20℃) | ||||
Nom.Thick. (mm) | Nom.Dia. (mm) | Nom.Thick. (mm) | Nom.Dia. (mm) | ||||
2× | 18 | 0.76 | 2.75 | 0.76 | 7.20 | 23.2 | |
16 | 0.76 | 3.05 | 0.76 | 7.80 | 14.6 | ||
14 | 0.76 | 3.45 | 0.76 | 8.70 | 8.96 | ||
12 | 0.76 | 3.95 | 1.14 | 10.50 | 5.64 | ||
10 | 1.14 | 5.30 | 1.52 | 14.00 | 3.55 | ||
3× | 18 | 0.76 | 2.75 | 0.76 | 7.60 | 23.2 | |
16 | 0.76 | 3.05 | 0.76 | 8.30 | 14.6 | ||
14 | 0.76 | 3.45 | 0.76 | 9.20 | 8.96 | ||
12 | 0.76 | 3.95 | 1.14 | 11.00 | 5.64 | ||
10 | 1.14 | 5.30 | 1.52 | 14.65 | 3.55 | ||
4× | 18 | 0.76 | 2.75 | 0.76 | 8.30 | 23.2 | |
16 | 0.76 | 3.05 | 0.76 | 9.10 | 14.6 | ||
14 | 0.76 | 3.45 | 0.76 | 10.05 | 8.96 | ||
12 | 0.76 | 3.95 | 1.14 | 12.05 | 5.64 | ||
10 | 1.14 | 5.30 | 1.52 | 16.10 | 3.55 | ||
5× | 18 | 0.76 | 2.75 | 0.76 | 9.10 | 23.2 | |
16 | 0.76 | 3.05 | 0.76 | 9.90 | 14.6 | ||
14 | 0.76 | 3.45 | 0.76 | 11.00 | 8.96 | ||
12 | 0.76 | 3.95 | 1.14 | 13.20 | 5.64 | ||
10 | 1.14 | 5.30 | 1.52 | 17.60 | 3.55 | ||
Certification |
|
| |||||
SJT Ordinary PVC Sheathed Cord
Product Design
The SJT Ordinary PVC Sheathed Cord is designed for general-purpose applications. It features a stranded copper conductor and PVC insulation and jacketing, providing excellent flexibility and durability. Rated for 300V and temperatures up to 75°C, it meets standards such as UL62 and UL2556. The design ensures easy installation and reliable performance in various electrical systems.
The SJT Ordinary PVC Sheathed Cord is designed for general-purpose applications. It features a stranded copper conductor and PVC insulation and jacketing, providing excellent flexibility and durability. Rated for 300V and temperatures up to 75°C, it meets standards such as UL62 and UL2556. The design ensures easy installation and reliable performance in various electrical systems.
Product Features
- Temperature and Voltage Rating: Available with temperature ratings of 60℃, 75℃, 90℃, and 105℃, and a voltage rating of 300V, ensuring reliable performance in various environments.
- Standards Compliance: Adheres to UL62 and UL2556 standards, guaranteeing quality and safety for industrial and commercial applications.
- Conductor Type: Features stranded bare or tinned copper conductors for excellent conductivity and flexibility.
- Insulation and Jacket: Utilizes PVC insulation and jacketing, which are ROHS compliant, ensuring environmental safety.
- Application Versatility: Suitable for internal and external wiring in electronic appliances, power instruments, and automotive equipment.
Product Advantages
- Enhanced Safety: Compliance with international standards ensures safe operation in various environments.
- Durability: High-quality materials and construction ensure long-lasting performance, even in demanding conditions.
- Versatility: Suitable for a wide range of applications, including industrial machinery and electrical equipment.
- Environmental Friendliness: ROHS compliance ensures the product is safe for the environment.
- Wide Application Range: Ideal for electronic appliances, power instruments, and automotive equipment, providing stable and reliable performance in critical systems.
Product Applications
This cord is widely used in household appliances, commercial equipment, and industrial machinery. It is suitable for internal wiring in devices like lamps, fans, and small motors. The SJT cord provides a safe and efficient power connection, making it ideal for applications requiring flexibility and durability.
This cord is widely used in household appliances, commercial equipment, and industrial machinery. It is suitable for internal wiring in devices like lamps, fans, and small motors. The SJT cord provides a safe and efficient power connection, making it ideal for applications requiring flexibility and durability.
FAQ (Frequently Asked Questions)
- What temperature ratings are available for SJT Ordinary PVC sheathed cord?
SJT Ordinary PVC sheathed cord is available in temperature ratings of 60℃, 75℃, 90℃, and 105℃, making it suitable for a wide range of operating conditions. - What is the voltage rating of this cord?
The cord is rated for 300V, which is ideal for standard electrical applications in electronic appliances and power tools. - What materials are used for insulation and jacketing?
Both the insulation and jacketing are made of PVC (Polyvinyl Chloride) that meets ROHS compliance standards, ensuring environmental safety and durability. - What are typical applications for this product?
This cord is commonly used for internal and exterior wiring in electronic appliances, power instruments, and automotive equipment, offering reliable performance in diverse environments. - Is this product certified to any standards?
Yes, SJT Ordinary PVC sheathed cord complies with UL62 and UL2556 standards, ensuring safety, quality, and adherence to industry requirements. - What factors affect the price of this cord?
The price depends on factors such as the length, temperature rating, voltage capacity, and quantity ordered. For specific pricing, please contact our sales team.
