SJOW
zhongxin
854449
Availability: | |
---|---|
Quantity: | |
Product Specifications | Details |
---|---|

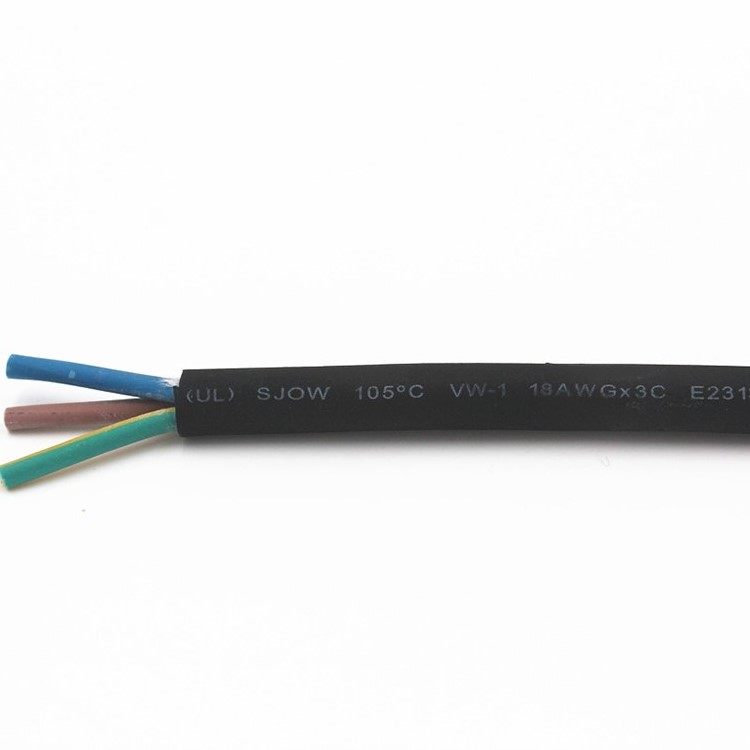

Product Name | SJOW Oil-resistant Heavy Duty Rubber Sheathed Cord |
Rating Temp | 60℃, 75℃, 90℃, 105℃ |
Rating Volt. | 300V |
Reference Standard | UL62, UL2556 |
Conductor | Stranded bare or tinned copper conductor |
Insulation | EPR, ROHS compliant |
Jacket | CPE, ROHS compliant |
Application | Internal & exterior wiring for electronic appliances, power instruments, and auto equipments |
规格 C×AWG | 绝缘 Insulation | 护套 Jacket | 最大导体电阻 Max Resistance (Ω/km, 20℃) | ||||
厚度 Nom.Thick. (mm) | 外径 Nom.Dia. (mm) | 厚度 Nom.Thick. (mm) | 外径 Nom.Dia. (mm) | ||||
2× | 18 | 0.76 | 2.75 | 0.76 | 7.20 | 23.6 | |
16 | 0.76 | 3.05 | 0.76 | 7.80 | 14.9 | ||
14 | 0.76 | 3.50 | 0.76 | 8.70 | 9.34 | ||
12 | 0.76 | 3.95 | 1.14 | 10.30 | 5.88 | ||
3× | 18 | 0.76 | 2.75 | 0.76 | 7.60 | 23.6 | |
16 | 0.76 | 3.05 | 0.76 | 8.30 | 14.9 | ||
14 | 0.76 | 3.50 | 0.76 | 9.30 | 9.34 | ||
12 | 0.76 | 3.95 | 1.14 | 11.00 | 5.88 | ||
4× | 18 | 0.76 | 2.75 | 0.76 | 8.30 | 23.6 | |
16 | 0.76 | 3.05 | 0.76 | 9.00 | 14.9 | ||
14 | 0.76 | 3.50 | 0.76 | 10.20 | 9.34 | ||
12 | 0.76 | 3.95 | 1.14 | 12.00 | 5.88 | ||
5× | 18 | 0.76 | 2.75 | 0.76 | 9.10 | 23.6 | |
16 | 0.76 | 3.05 | 0.76 | 9.90 | 14.9 | ||
14 | 0.76 | 3.50 | 0.76 | 11.90 | 9.34 | ||
12 | 0.76 | 3.95 | 1.14 | 13.20 | 5.88 |
The SJOW Oil-resistant heavy duty rubber sheathed cord is a specialized electrical cable designed to withstand tough industrial environments and demanding applications. With its oil-resistant and heavy-duty construction, this cord provides a reliable and durable power connection in settings where exposure to oils, chemicals, moisture, and mechanical stress is common. It is engineered to meet the high standards of industrial power distribution, ensuring safe and efficient operation of electrical equipment.
Exceptional Oil Resistance: The outer sheath of the SJOW cord is made of a specially formulated rubber compound that offers excellent resistance to a wide range of oils, including mineral oils, lubricants, and hydraulic fluids. This makes it ideal for use in automotive workshops, manufacturing plants, and other industrial settings where oil exposure is prevalent. The oil resistance of the sheath prevents degradation and swelling, ensuring the cord's integrity and performance over time.
Heavy-Duty Construction: Built to withstand heavy mechanical stress, the SJOW cord features a robust internal structure with multiple layers of reinforcement. The conductors are made of high-purity copper for optimal electrical conductivity, and the cord is designed to resist pulling, bending, and abrasion. This heavy-duty construction allows the cord to endure the rigors of industrial use, such as being dragged, stepped on, or subjected to repeated flexing.
Moisture and Chemical Resistance: In addition to its oil resistance, the SJOW cord's rubber sheath also provides protection against moisture and common chemicals. It can withstand exposure to water, solvents, and mild acids and alkalis, making it suitable for use in wet or chemically harsh environments. The cord's moisture resistance prevents electrical shorts and corrosion of the internal conductors, ensuring long-term reliability.
High Temperature Tolerance: Capable of operating within a wide temperature range, the SJOW cord can withstand both high and low temperatures. It can function effectively in hot industrial processes as well as in cold storage facilities or outdoor applications in freezing conditions. The cord's temperature-resistant properties prevent the rubber sheath from cracking or melting, maintaining its performance and safety.
Industrial Machinery: The SJOW Oil-resistant heavy duty rubber sheathed cord is widely used to power industrial machinery, such as machine tools, presses, and conveyor systems. Its ability to withstand oil, heat, and mechanical stress makes it a reliable choice for ensuring continuous operation of these critical pieces of equipment.
Automotive and Aviation Maintenance: In automotive repair shops and aviation maintenance facilities, the cord is used for powering diagnostic equipment, lifts, and other tools. Its oil resistance is particularly valuable in these environments, where oils and lubricants are commonly used.
Outdoor and Marine Applications: For outdoor power distribution in construction sites, mining operations, and marine vessels, the SJOW cord can withstand the harsh outdoor conditions, including exposure to sunlight, rain, and saltwater. Its durability and resistance to various elements make it suitable for these demanding applications.
