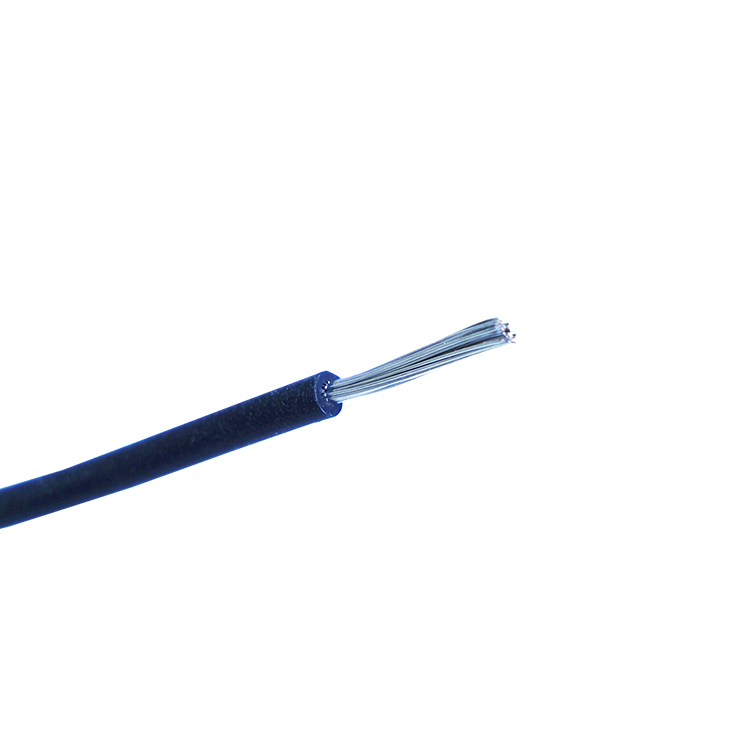

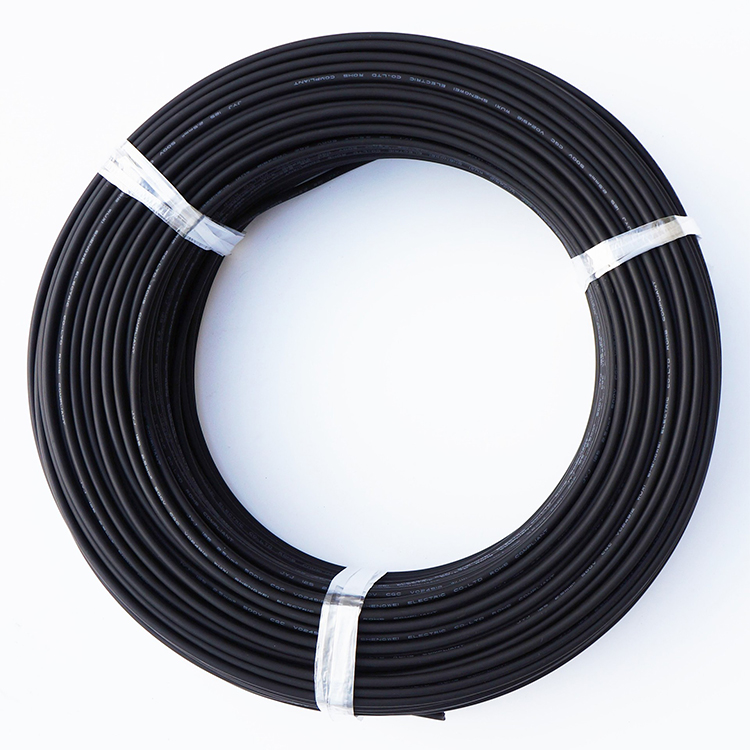

JYJ125 JYJ150 750V High Temperature Resistant Motor Lead Wire
The JYJ125 and JYJ150 750V High Temperature Resistant Motor Lead Wire is designed for reliable performance in high-temperature environments. Rated for temperatures up to 125℃ and 150℃, these wires feature stranded copper conductors and XLPO insulation, ensuring excellent thermal stability and durability. They comply with RoHS standards, making them environmentally friendly. Suitable for F and H insulation class motors, they provide safe and efficient power transmission in industrial applications.
-
JYJ125 JYJ150 750V
-
Zhongxin
-
85444221
| Quantity: | |
|---|---|
Product Description
wuxi zhonghui's The JYJ125 and JYJ150 750V High Temperature Resistant Motor Lead Wire is designed for reliable performance in high-temperature environments. Rated for temperatures up to 125℃ and 150℃, these wires feature stranded copper conductors and XLPO insulation, ensuring excellent thermal stability and durability. They comply with RoHS standards, making them environmentally friendly. Suitable for F and H insulation class motors, they provide safe and efficient power transmission in industrial applications.
Performance Parameter
Conductor | Insulation | MAX Resistance (Ω/km, 20℃, DC) | |||
mm2 | Construction (No./mm) | Nom.Dia. (mm) | Nom.Thick. (mm) | Nom.Dia. (mm) | |
0.5 | 16/0.20 | 0.92 | 0.60 | 2.25 | 40.1 |
0.75 | 24/0.20 | 1.13 | 0.60 | 2.40 | 26.7 |
1 | 32/0.20 | 1.31 | 0.60 | 2.60 | 20.0 |
1.5 | 30/0.25 | 1.58 | 0.70 | 3.05 | 13.7 |
2.5 | 49/0.25 | 2.02 | 0.70 | 3.60 | 8.21 |
4 | 56/0.30 | 2.60 | 0.70 | 4.10 | 5.09 |
6 | 84/0.30 | 3.42 | 0.80 | 5.20 | 3.39 |
10 | 84/0.40 | 4.56 | 0.90 | 6.30 | 1.95 |
16 | 126/0.40 | 5.60 | 1.00 | 8.00 | 1.24 |
25 | 196/0.40 | 6.95 | 1.00 | 9.20 | 0.795 |
35 | 276/0.40 | 8.74 | 1.00 | 10.90 | 0.565 |
50 | 396/0.40 | 10.46 | 1.20 | 13.20 | 0.393 |
70 | 360/0.50 | 12.50 | 1.20 | 15.20 | 0.277 |
95 | 475/0.50 | 13.73 | 1.40 | 17.00 | 0.210 |
| Product Specifications | Details |
|---|---|
| Product Name | JYJ125, JYJ150 750V High Temperature Resistant Motor Lead Wire |
| Rating Temp | 125℃, 150℃ |
| Rating Volt. | 750V |
| Reference Standard | Enterprise standard |
| Conductor | Stranded bare or tinned copper conductor |
| Insulation | XLPO, ROHS compliant |
| Application | For lead wiring of F, H insulation class motor |
JYJ125 & JYJ150 750V High - Temperature - Resistant Motor Lead Wire: A
Comprehensive Guide
Product Description:
The JYJ125 and JYJ150 750V High Temperature Resistant Motor Lead Wires are designed for reliable performance in high-temperature environments. They feature excellent thermal stability and mechanical strength, making them suitable for demanding applications. These wires are rated for temperatures up to 125℃ and 150℃, respectively, and have a voltage rating of 750V. Made with stranded bare or tinned copper conductors and XLPO insulation, they ensure excellent conductivity and durability. The insulation and jacket are ROHS compliant, ensuring environmental safety.
The JYJ125 and JYJ150 750V High Temperature Resistant Motor Lead Wires are designed for reliable performance in high-temperature environments. They feature excellent thermal stability and mechanical strength, making them suitable for demanding applications. These wires are rated for temperatures up to 125℃ and 150℃, respectively, and have a voltage rating of 750V. Made with stranded bare or tinned copper conductors and XLPO insulation, they ensure excellent conductivity and durability. The insulation and jacket are ROHS compliant, ensuring environmental safety.
Product Design:
These motor lead wires are engineered with stranded bare or tinned copper conductors for superior conductivity and flexibility. The XLPO insulation provides excellent thermal stability and resistance to environmental stress. The design ensures uniform insulation thickness for easy installation and stripping. The JYJ125 and JYJ150 meet enterprise standards for quality and safety, making them ideal for high-temperature applications. The cables are designed to withstand extreme conditions, ensuring long-lasting performance. Product Features
- Temperature and Voltage Rating: Rated for 125℃ and 150℃, with a voltage rating of 750V, ensuring reliable performance in high-temperature environments.
- Standards Compliance: Adheres to enterprise standards, guaranteeing quality and safety for demanding applications.
- Conductor Type: Features stranded bare or tinned copper conductors for excellent conductivity and flexibility.
- Insulation: Utilizes XLPO insulation, which is ROHS compliant, ensuring environmental safety.
- Application: Specifically designed for lead wiring of F and H insulation class motors, providing reliable performance in industrial and high-temperature applications.
Product Advantages
- Enhanced Safety: Compliance with enterprise standards ensures safe operation in high-temperature environments.
- Durability: High-quality materials and construction ensure long-lasting performance, even in demanding conditions.
- Versatility: Suitable for various applications, including industrial machinery and electrical equipment.
- Environmental Friendliness: ROHS compliance ensures the product is safe for the environment.
- Wide Application Range: Ideal for F and H insulation class motors, providing stable and reliable performance in critical applications.
Product Applications:
The JYJ125 and JYJ150 are specifically designed for use in F and H class insulation motors. They are widely used in industrial settings, such as in pumps, fans, and motors, where high-temperature resistance is crucial. These wires are also suitable for applications in marine environments and other areas where thermal stability and durability are required. Their ability to operate efficiently in harsh conditions makes them a reliable choice for various motor lead wire requirements.
The JYJ125 and JYJ150 are specifically designed for use in F and H class insulation motors. They are widely used in industrial settings, such as in pumps, fans, and motors, where high-temperature resistance is crucial. These wires are also suitable for applications in marine environments and other areas where thermal stability and durability are required. Their ability to operate efficiently in harsh conditions makes them a reliable choice for various motor lead wire requirements.
FAQ (Frequently Asked Questions)
1. Q: What is the JYJ125/JYJ150 750V High Temperature Resistant Motor Lead Wire used for?
A:
The JYJ125/JYJ150 750V High Temperature Resistant Motor Lead Wire is designed for lead wiring of F and H insulation class motors. It is suitable for industrial and high-temperature applications, providing reliable performance in demanding environments.
A:
The JYJ125/JYJ150 750V High Temperature Resistant Motor Lead Wire is designed for lead wiring of F and H insulation class motors. It is suitable for industrial and high-temperature applications, providing reliable performance in demanding environments.
2. Q: What are the key features of the JYJ125/JYJ150 750V High Temperature Resistant Motor Lead Wire?
A:The JYJ125/JYJ150 Motor Lead Wire features a temperature rating of 125℃ and 150℃, with a voltage rating of 750V. It uses stranded bare or tinned copper conductors and XLPO insulation, which is ROHS compliant. It meets enterprise standards for quality and safety.
3. Q: How should I install and use the JYJ125/JYJ150 750V High Temperature Resistant Motor Lead Wire?
A:Ensure the cable is installed in accordance with local electrical codes and standards. Avoid excessive bending or stretching. Use appropriate connectors and terminations to ensure a secure connection. Regularly inspect the cable for any signs of damage or wear.
4. Q: How should I maintain the JYJ125/JYJ150 750V High Temperature Resistant Motor Lead Wire?
A:Regularly inspect the cable for physical damage or wear. Keep the cable clean and free from dirt and debris. Ensure connections are secure and free from corrosion. Replace the cable immediately if any damage is detected.
5. Q: Is the JYJ125/JYJ150 750V High Temperature Resistant Motor Lead Wire environmentally friendly?
A:Yes, the JYJ125/JYJ150 750V High Temperature Resistant Motor Lead Wire is environmentally friendly. It meets ROHS standards and uses materials that are safe for the environment.
6. Q: What standards does the JYJ125/JYJ150 750V High Temperature Resistant Motor Lead Wire comply with?
A:The JYJ125/JYJ150 750V High Temperature Resistant Motor Lead Wire complies with enterprise standards, ensuring quality and safety for various electrical systems.
7. Q: What are the common applications for the JYJ125/JYJ150 750V High Temperature Resistant Motor Lead Wire?
A:The JYJ125/JYJ150 750V High Temperature Resistant Motor Lead Wire is commonly used in industrial machinery, electrical equipment, and other applications requiring reliable performance in high-temperature environments. It is ideal for F and H insulation class motors.
