How to Choose the Right Power Cord Size?

Selecting the wrong power cord size is not just a connectivity issue; it is a direct operational risk. Such oversights frequently lead to catastrophic equipment damage, localized overheating, and completely failed safety audits. In commercial, industrial, and high-density IT environments, standardizing power delivery requires rigorous attention. You must consistently evaluate continuous load demands against exact cable specifications. Relying on assumptions easily compromises the stability of your entire electrical infrastructure.

This guide provides a robust technical decision framework. You will discover exactly how to evaluate, size, and select the appropriate cables. We detail the exact criteria needed to meet specific hardware demands. Furthermore, you will learn how to navigate strict environmental compliance requirements. Proper sizing eliminates unnecessary downtime. It also protects your hardware investments from premature failure and electrical hazards.

Key Takeaways

• Wire Gauge Determines Capacity: The thickness of the internal conductive copper (measured in AWG or mm²) directly dictates the maximum safe amperage. Lower AWG numbers mean thicker wires and higher capacities.

• Length Compounds Risk: Extended cable runs suffer from voltage drop, requiring an upsize in wire gauge to maintain stable power delivery to the hardware.

• Environment Dictates Material: Selecting between heavy-duty industrial jackets and a light PVC sheathed flexible cord depends entirely on temperature exposure, chemical presence, and mechanical wear.

• Connectors Must Match Equipment: Understanding standard NEMA (North American) and IEC (International) power cord types ensures compatibility with existing power distribution units (PDUs) and hardware.

The Business Cost of Incorrect Power Cord Sizing

Many organizations underestimate the operational hazards of improper cable sizing. Treating power delivery components as generic commodities creates massive vulnerabilities. We categorize these severe risks into three distinct areas.

1. Thermal and Fire Hazards: Undersized cords push past their designated ampacity limits. This excess current generates severe heat within the conductors. High temperatures quickly degrade the outer insulation. Eventually, this thermal stress exposes bare copper, creating severe fire risks. We frequently see thermal meltdowns in poorly planned data centers.

2. Equipment Degradation (Voltage Drop): Cords stretching too long or running too thin cause significant voltage drops. Voltage drops occur right at the equipment end. Power supplies and motors compensate by drawing more current. Drawing excessive current burns out internal components prematurely. Your hardware lifecycle shortens drastically under these conditions.

3. Compliance and Liability: Failing to use properly sized cords voids equipment warranties. Regulatory bodies mandate strict electrical standards. Uncertified cables routinely result in failed OSHA inspections. Non-compliance also violates NEC guidelines and local regulatory inspections. You expose your organization to unnecessary legal and operational liabilities.

Common Mistake: Never assume a cable functions safely just because the plug fits the receptacle. Always verify the gauge matches your expected load.

The Core Evaluation Matrix: Gauge, Amperage, and Voltage

Choosing the correct specifications requires a clear understanding of fundamental electrical properties. You must evaluate wire gauge, load limits, and voltage ratings together. This matrix forms the foundation of safe power delivery.

Decoding Wire Gauge (AWG vs. Metric)

We measure the thickness of the internal electrical wire using specific standardized systems. North America uses the American Wire Gauge (AWG) standard. The rest of the world typically uses the metric cross-sectional area (mm²). The AWG system uses an inverse relationship. A lower AWG number indicates a thicker copper conductor. For example, an 18 AWG cable is much thinner than a 12 AWG cable. Thicker conductors carry significantly more current without overheating.

Below is a standard reference chart comparing gauge sizes and typical ampacity limits.

Matching Ampacity to Load

You must locate the specific power draw requirements on your equipment. Manufacturers print these details on the device nameplate. You usually find the draw listed in Amps or Watts. If the device only lists Watts, simply divide Watts by Volts to find the Amperage.

Industry professionals rely on the 80% Rule. Continuous loads should never consume more than 80% of a cable’s maximum rated capacity. Continuous loads run for three hours or longer. Leaving a 20% buffer ensures a safe thermal margin. It prevents the internal copper from exceeding safe operating temperatures.

Voltage Ratings

Voltage ratings differ entirely from amperage limits. The insulation thickness dictates the voltage rating. Standard office environments generally use 125V cables. Commercial data centers often require 250V cables. Higher industrial settings demand 300V or 600V ratings. Matching the voltage rating prevents dielectric breakdown. Dielectric breakdown happens when high voltage punches through inadequate insulation. This event causes immediate short circuits.

The Length Factor: Mitigating Voltage Drop

Physical distance completely alters electrical performance. You cannot evaluate a cable solely by its gauge. You must factor in the total run length to maintain system stability.

The Physics of Resistance

Electrical conductors naturally resist the flow of electrons. This resistance increases linearly alongside cable length. Pushing electricity through an exceptionally long cord consumes energy. This consumed energy turns into heat. Consequently, less usable power actually reaches your connected device. We call this phenomenon voltage drop. Significant voltage drop forces hardware components to work harder, accelerating wear and tear.

When to Upsize the Gauge

Standard sizing rules generally apply safely up to 25 or 50 feet. Beyond these thresholds, you must adjust your strategy. A standard rule of thumb dictates dropping one AWG size for extended runs. For instance, if a 25-foot run requires a 16 AWG cable, a 75-foot run might demand a 14 AWG cable. Increasing the conductor thickness compensates directly for the expected voltage drop. This proactive step guarantees stable power delivery across large facilities.

Cable Management Realities

Upsizing cable gauges introduces physical management challenges. Thicker cables resist bending. They possess a much larger bend radius. You must balance the need for thicker cables against physical conduit space. Rack routing becomes difficult when managing stiff, heavy-duty cords.

Best Practice: Always measure conduit space before ordering upgraded cables. Ensure your server racks can accommodate the wider bend radius of 12 AWG or 10 AWG cords.

Navigating Power Cord Types and Jacket Ratings

Understanding plug standards and exterior insulation ensures absolute compatibility. You must select the right materials to survive your specific deployment environment.

Categorizing Connectors

You will encounter two primary standardization systems globally. North America uses the NEMA standard. NEMA 5-15P and 5-20P plugs dominate general commercial and office use. Conversely, international IT environments strictly utilize IEC 60320 standards. You frequently see C13/C14 and C19/C20 power cord types in data centers. C13/C14 combinations handle standard server loads. C19/C20 combinations manage higher capacity blade servers and PDUs. Correctly identifying these connectors prevents frustrating deployment delays.

Selecting the Right Jacket (Insulation)

The exterior jacket protects the internal conductors from environmental destruction. Choosing the correct compound prevents premature degradation.

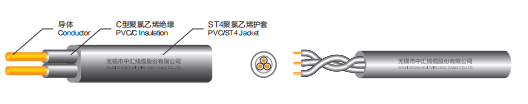

• Light/Indoor Use: Clean, climate-controlled environments rarely damage cables. You can specify a light PVC sheathed flexible cord for standard office spaces. Designations like SVT or SJT indicate these lighter jackets. They offer excellent flexibility. They work perfectly where mechanical abuse remains low.

• Harsh/Industrial Use: Industrial settings present severe chemical and physical threats. You must require heavy-duty thermoset or elastomer jackets. Designations like SOOW or SEOW represent these rugged builds. They provide critical oil resistance. They survive extreme temperature fluctuations and outdoor UV exposure.

Compliance, Testing, and Supplier Shortlisting

Treating every cable as critical infrastructure demands a strict procurement process. Evaluating supplier credibility guarantees long-term electrical safety.

Verifying Certifications

You must demand cords bearing recognized safety marks. Look for UL, cUL, CSA, or CE stamps on the product itself. Never rely on generic manufacturer claims. Third-party testing laboratories verify these safety marks. They subject the cables to extreme thermal and physical stress tests. Using a certified power cord ensures it meets the exact specifications printed on its jacket.

Material Compliance

Global deployments require strict adherence to environmental directives. Top suppliers ensure their materials comply with modern mandates like RoHS and REACH. These directives restrict hazardous substances like lead and cadmium in manufacturing. Ensuring compliance protects your organization during international shipping and local environmental audits.

Evaluating Supplier Transparency

Trustworthy suppliers demonstrate complete transparency. Look for vendors providing comprehensive specification sheets. They should willingly share cross-sectional diagrams of their products. They must provide precise manufacturing tolerance data. Avoid suppliers hiding their technical specifications behind vague marketing terms.

Next Steps

Start by conducting a thorough audit of your current maximum power draws. Determine the exact required lengths for your upcoming deployment. Account for optimal routing paths. Finally, request specification sheets and physical samples from your shortlisted vendors. Test these samples mechanically before committing to a massive order.

Conclusion

Properly sizing a power cord requires balancing amperage, gauge, length, and environmental factors to ensure stable and safe operation. You must calculate accurate load demands while anticipating voltage drops across long distances. Selecting the correct insulation material remains equally critical to surviving specific environmental hazards.

Never treat power cords as generic commodities. Treat them as critical infrastructure components. Strictly match technical specifications to the documented demands of your hardware. Implement an auditing process for your current cables today, and replace any undersized links before they trigger system failures.

FAQ

Q: Can I use a lower AWG power cord than my equipment originally came with?

A: Yes, using a lower AWG (thicker wire) is generally safe and often recommended for longer distances, provided the connectors and voltage ratings match. Thicker copper handles current more efficiently and reduces the risk of overheating. It provides an excellent safety margin for continuous loads.

Q: How do I calculate the right size if my equipment only lists Watts?

A: Provide the basic formula: Amps = Watts / Volts. Once you determine the amperage, match it to the correct AWG rating. Always advise adding a 20-25% safety margin for continuous operation to prevent thermal degradation.

Q: What is the difference between SJT and SOOW power cord types?

A: Highlight the jacket material and application. SJT is a PVC jacket for standard indoor use, perfectly suited for offices and basic IT environments. Meanwhile, SOOW is a rubber-based jacket rated for severe outdoor, oil, and water exposure. SOOW easily survives harsh industrial abuse.
