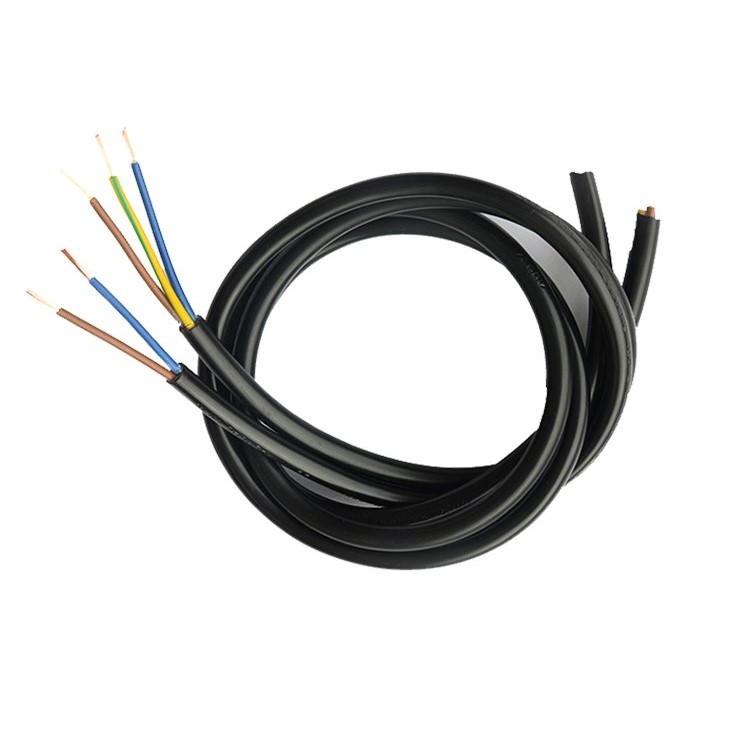

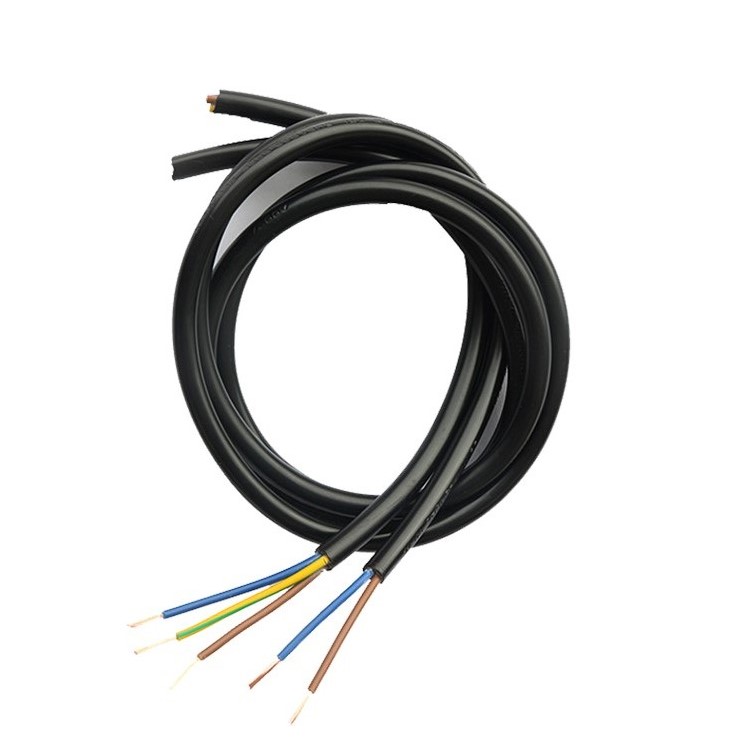

H05VVH2-F/H05VV-F Ordinary PVC Sheathed Flexible Cord
The H05VVH2-F/H05VV-F Ordinary PVC Sheathed Flexible Cord is a versatile cable designed for general-purpose internal wiring of electronic and electrical equipment. It features stranded tinned or bare copper conductors, PVC insulation, and PVC jacketing, ensuring excellent flexibility and durability. Rated for 300/500V and a temperature range of -40℃ to +70℃, this cable is suitable for use in various environments, including home appliances, office equipment, and industrial applications. It meets standards such as VDE0281 and IEC227, and passes the DIN VDE HD 405.1 vertical flame test, providing reliable fire safety. The uniform insulation thickness ensures easy stripping and cutting, making installation quick and efficient. Additionally, it is resistant to acid, alkali, oil, moisture, and mold, making it ideal for both indoor and outdoor applications
-
H05VVH2-F/H05VV-F
-
zhongxin
-
854449
| Quantity: | |
|---|---|
Product Description
wuxi zhonghui's H05VVH2-F/H05VV-F Ordinary PVC Sheathed Flexible Cord is a versatile cable designed for general-purpose internal wiring of electronic and electrical equipment. It features stranded tinned or bare copper conductors, PVC insulation, and PVC jacketing, ensuring excellent flexibility and durability. Rated for 300/500V and a temperature range of -40℃ to +70℃, this cable is suitable for use in various environments, including home appliances, office equipment, and industrial applications. It meets standards such as VDE0281 and IEC227, and passes the DIN VDE HD 405.1 vertical flame test, providing reliable fire safety. The uniform insulation thickness ensures easy stripping and cutting, making installation quick and efficient. Additionally, it is resistant to acid, alkali, oil, moisture, and mold, making it ideal for both indoor and outdoor applications
Performance Parameter
| Product Specifications | Details |
|---|---|
| Conductor | Stranded bare or tinned copper conductor |
| Insulation | PVC, ROHS compliant |
| Jacket | PVC, ROHS compliant |
| Temperature Rating | 70℃ |
| Voltage Rating | 300/500V |
| Reference Standard | VDE0281, IEC227 |
Model | Cxmm² | Insulation | Jacket | Max Resistance | |||
Nom.Thick.(mm) | Nom.Dia.(mm) | Nom.Thick.(mm) | Nom.Dia.(mm) | ||||
H05VV-F | 2x | 0.75 | 0.6 | 2.35 | 0.8 | 6.30 | 26.0 |
H05VVH2-F | 4.0x6.3 | ||||||
H05VV-F | 1.0 | 0.6 | 2.55 | 0.8 | 6.7 | 19.5 | |
H05VVH2-F | 4.2x6.8 | ||||||
H05VV-F | 1.5 | 0.7 | 3.05 | 0.8 | 7.7 | 13.3 | |
H05VV-F | 2.5 | 0.8 | 3.70 | 1.0 | 9.4 | 7.98 | |
H05VV-F | 3x | 0.75 | 0.6 | 2.35 | 0.8 | 6.7 | 26.0 |
1.0 | 0.6 | 2.55 | 0.8 | 7.1 | 19.5 | ||
1.5 | 0.7 | 3.05 | 0.9 | 8.4 | 13.3 | ||
2.5 | 0.8 | 3.70 | 1.1 | 10.2 | 7.98 | ||
H05VV-F | 4x | 0.75 | 0.6 | 2.35 | 0.8 | 7.3 | 26.0 |
1.0 | 0.6 | 2.55 | 0.9 | 8.0 | 19.5 | ||
1.5 | 0.7 | 3.05 | 1.0 | 9.4 | 13.3 | ||
2.5 | 0.8 | 3.70 | 1.1 | 10.2 | 7.98 | ||
H05VV-F | 5x | 0.75 | 0.6 | 2.35 | 0.9 | 8.2 | 26.0 |
1.0 | 0.6 | 2.55 | 0.9 | 8.7 | 19.5 | ||
1.5 | 0.7 | 3.05 | 1.1 | 10.1 | 13.3 | ||
2.5 | 0.8 | 3.70 | 1.2 | 12.4 | 7.98 | ||
Certification | VDE KC SAA CCC | ||||||
H05VVH2-F/H05VV-F Ordinary PVC Sheathed Flexible Cord
Product Description:
The H05VVH2-F/H05VV-F Ordinary PVC Sheathed Flexible Cord is a versatile cable designed for general-purpose applications. It features excellent flexibility and durability, making it suitable for a wide range of uses. This cable is widely used in household appliances, commercial equipment, and various types of portable electrical devices where flexibility and reliable performance are crucial.
Product Design:
The H05VVH2-F/H05VV-F cable is designed with a stranded bare or tinned copper conductor for good conductivity and flexibility. It uses PVC insulation and sheathing, which are ROHS compliant, ensuring environmental safety. The cable meets standards such as UL62 and UL2556, guaranteeing safety and reliability. Available in various wire configurations, it ensures compatibility with different power requirements.
Product Features
- Temperature and Voltage Rating: Rated for 70℃ and 300/500V, ensuring reliable performance in standard electrical applications.
- Standards Compliance: Adheres to VDE0281 and IEC227 standards, guaranteeing quality and safety for various electrical systems.
- Conductor Type: Features stranded bare or tinned copper conductors for excellent conductivity and flexibility.
- Insulation and Jacket: Utilizes PVC insulation and jacketing, which are ROHS compliant, ensuring environmental safety.
- Application Versatility: Suitable for internal and external wiring in electronic appliances, power instruments, and automotive equipment.
- Uniform Insulation Thickness: Ensures easy stripping and cutting, facilitating efficient installation.
- Flame Resistance: Passes the DIN VDE HD 405.1 vertical flame test, providing excellent fire safety.
Product Advantages
- Enhanced Safety: Compliance with international standards and flame resistance ensure safe operation in various environments.
- Durability: High-quality materials and construction ensure long-lasting performance, even in demanding conditions.
- Versatility: Suitable for a wide range of applications, including internal and external wiring in electronic appliances, power instruments, and automotive equipment.
- Ease of Use: Uniform insulation thickness allows for easy stripping and cutting, making installation quick and efficient.
- Environmental Friendliness: ROHS compliance ensures the product is safe for the environment.
- Wide Application Range: Ideal for general-purpose electronic and electrical equipment power connections, providing stable and reliable performance.
Product Applications:
This cable is commonly used for internal wiring in electronic appliances, power tools, and portable equipment. Its flexibility and durability make it ideal for applications where frequent movement or bending is required. The H05VVH2-F/H05VV-F is suitable for both indoor and outdoor use, providing reliable power connections in various environments.
FAQ (Frequently Asked Questions)
1. Q: What is the H05VVH2-F/H05VV-F Ordinary PVC Sheathed Flexible Cord used for?
A:
The H05VVH2-F/H05VV-F Ordinary PVC Sheathed Flexible Cord is designed for internal and external wiring in electronic appliances, power instruments, and automotive equipment. It is suitable for general-purpose electrical applications requiring reliable and safe power connections.
A:
The H05VVH2-F/H05VV-F Ordinary PVC Sheathed Flexible Cord is designed for internal and external wiring in electronic appliances, power instruments, and automotive equipment. It is suitable for general-purpose electrical applications requiring reliable and safe power connections.
2. Q: What are the key features of the H05VVH2-F/H05VV-F Ordinary PVC Sheathed Flexible Cord?
A:The H05VVH2-F/H05VV-F Ordinary PVC Sheathed Flexible Cord features stranded bare or tinned copper conductors, PVC insulation and jacketing that is ROHS compliant, a temperature rating of 70℃, and a voltage rating of 300/500V. It meets standards such as VDE0281 and IEC227.
3. Q: What applications is the H05VVH2-F/H05VV-F Ordinary PVC Sheathed Flexible Cord suitable for?
A:The H05VVH2-F/H05VV-F Ordinary PVC Sheathed Flexible Cord is suitable for a wide range of applications, including internal and external wiring in electronic appliances, power instruments, and automotive equipment. It provides reliable performance in various electrical systems.
4. Q: How should I install and use the H05VVH2-F/H05VV-F Ordinary PVC Sheathed Flexible Cord?
A:Ensure the cable is installed in accordance with local electrical codes and standards. Avoid excessive bending or stretching. Use appropriate connectors and terminations to ensure a secure connection. Regularly inspect the cable for any signs of damage or wear.
5. Q: How should I maintain the H05VVH2-F/H05VV-F Ordinary PVC Sheathed Flexible Cord?
A:Regularly inspect the cable for physical damage or wear. Keep the cable clean and free from dirt and debris. Ensure connections are secure and free from corrosion. Replace the cable immediately if any damage is detected.
6. Q: Is the H05VVH2-F/H05VV-F Ordinary PVC Sheathed Flexible Cord environmentally friendly?
A:Yes, the H05VVH2-F/H05VV-F Ordinary PVC Sheathed Flexible Cord is environmentally friendly. It meets ROHS standards and uses materials that are safe for the environment.
7. Q: What standards does the H05VVH2-F/H05VV-F Ordinary PVC Sheathed Flexible Cord comply with?
A:The H05VVH2-F/H05VV-F Ordinary PVC Sheathed Flexible Cord complies with standards such as VDE0281 and IEC227, ensuring quality and safety for various electrical systems.
