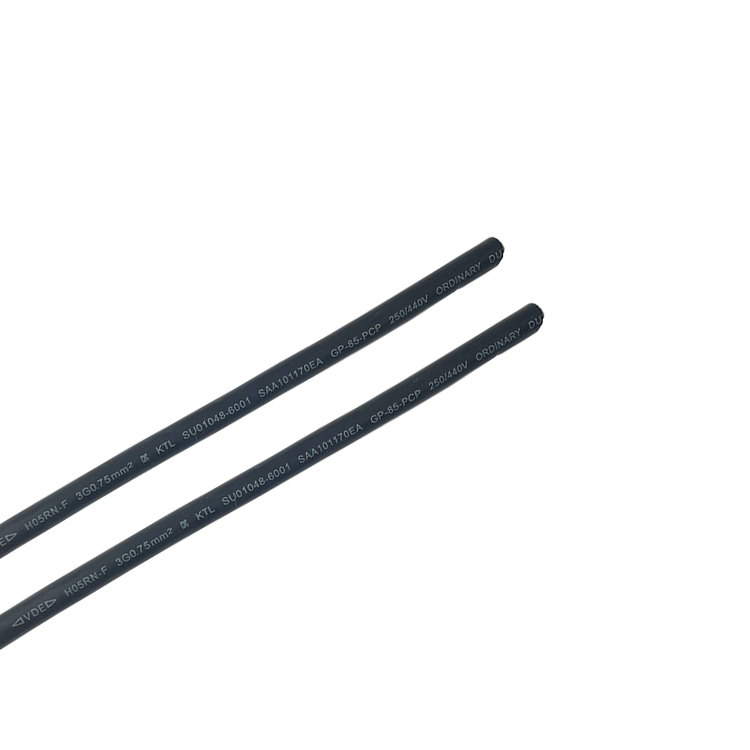

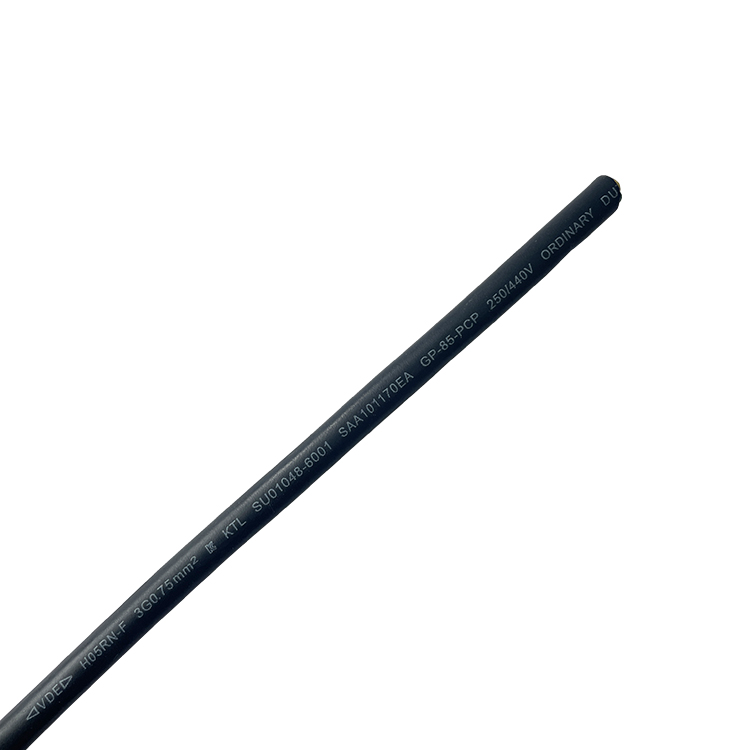

H05RN-F Ordinary Cross-linked Flexible Flexible Cable
The H05RN-F Ordinary Cross-linked Flexible Flexible Cable is a versatile and high-quality cable suitable for various applications. It features a flexible design and is made with cross-linked polyethylene (XLPE) insulation, providing excellent resistance to mechanical stress and harsh environments. This cable is commonly used in domestic and commercial settings for power supply and electrical connections. It is reliable, durable, and easy to install, making it a popular choice for a wide range of applications.
-
H05RN-F
-
Zhongxin
-
85444221
| Quantity: | |
|---|---|
Product Description
wuxi zhonghui's H05RN-F Ordinary Cross-linked Flexible Flexible Cable is a versatile and high-quality cable suitable for various applications. It features a flexible design and is made with cross-linked polyethylene (XLPE) insulation, providing excellent resistance to mechanical stress and harsh environments. This cable is commonly used in domestic and commercial settings for power supply and electrical connections. It is reliable, durable, and easy to install, making it a popular choice for a wide range of applications.
Performance Parameters
C×mm2 | Insulation | Jacket | Max Resistance (Ω/km, 20℃) | |||||
Nom.Thick. (mm) | Nom.Dia. (mm) | Nom.Thick. (mm) | Nom.Dia. (mm) | |||||
2× | 0.75 | 0.6 | 2.40 | 0.8 | 6.55 | 26 | ||
1.0 | 0.6 | 2.55 | 0.9 | 7.05 | 19.5 | |||
3× | 0.75 | 0.6 | 2.40 | 0.9 | 7.12 | 26 | ||
1.0 | 0.6 | 2.55 | 0.9 | 7.45 | 19.5 | |||
Certification |
|
|
| |||||
| ||||||||
Product Description:
The H05RN-F Ordinary Cross-linked Flexible Flexible Cable is a high-quality cable designed for various applications. It has a rating temperature of 60℃ and a rating voltage of 300/500V. This cable complies with the reference standard EN50525-2-21:2011, ensuring its quality and adherence to industry standards.
The conductor of this cable is made of stranded bare or tinned copper, providing excellent conductivity and flexibility. The insulation is EI4 rated and is compliant with ROHS regulations, ensuring safety and environmental compliance. The jacket is EM2 rated and also complies with ROHS regulations.
Product Design:
The H05RN-F Ordinary Cross-linked Flexible Cable is designed for versatile applications, featuring stranded bare or tinned copper conductors and cross-linked polyolefin (XLPO) insulation. Rated for 90℃, it meets standards like IEC 60227-5 and offers excellent flexibility and durability. Its XLPO insulation ensures high thermal stability and resistance to environmental stress, while the flexible design facilitates easy installation. Ideal for industrial and residential electrical systems, it provides reliable performance and safe power transmission.
Application:
This cable is suitable for internal and exterior wiring for electronic appliances, power instruments, and auto equipment. It is commonly used in various industries for power transmission and electrical connections.
Product Features:
High Temperature Rating: The cable has a rating temperature of 60℃, allowing it to withstand high operating temperatures.
High Voltage Rating: With a rating voltage of 300/500V, this cable is suitable for various power applications.
Stranded Conductor: The cable features a stranded bare or tinned copper conductor, providing flexibility and excellent conductivity.
Compliance with Standards: The cable complies with the reference standard EN50525-2-21:2011, ensuring its quality and adherence to industry requirements.
Safe and Environmentally Friendly: The insulation and jacket of the cable are both ROHS compliant, ensuring safety and environmental compliance.
Product Advantages:
Versatile Application: This cable is suitable for internal and exterior wiring for electronic appliances, power instruments, and auto equipment, providing a reliable solution for various industries.
Flexibility: The stranded conductor and flexible design of the cable make it easy to install and maneuver in different applications.
High-Quality Materials: The cable is made with high-quality materials, including stranded copper conductors and ROHS compliant insulation and jacket, ensuring durability and longevity.
Safety and Compliance: The cable's insulation and jacket are both ROHS compliant, ensuring safety and environmental compliance.
Reliable Performance: The H05RN-F Ordinary Cross-linked Flexible Flexible Cable offers reliable power transmission and electrical connections, making it a trusted choice for various applications.
FAQ (Frequently Asked Questions)
What is the temperature rating of the H05RN-F Ordinary Cross-linked Flexible Flexible Cable?
The cable has a temperature rating of 60℃.
What is the voltage rating of the cable?
The cable is rated for a voltage of 300/500V.
What is the reference standard for this cable?
The cable complies with the reference standard EN50525-2-21:2011.
What type of conductor is used in this cable?
The cable uses a stranded bare or tinned copper conductor.
Is the cable insulation and jacket compliant with ROHS regulations?
Yes, the insulation is rated as EI4 and complies with ROHS standards. The jacket is rated as EM2 and also complies with ROHS standards.
What are the typical applications for this cable?
This cable is commonly used for internal and exterior wiring in electronic appliances, power instruments, and auto equipment.
