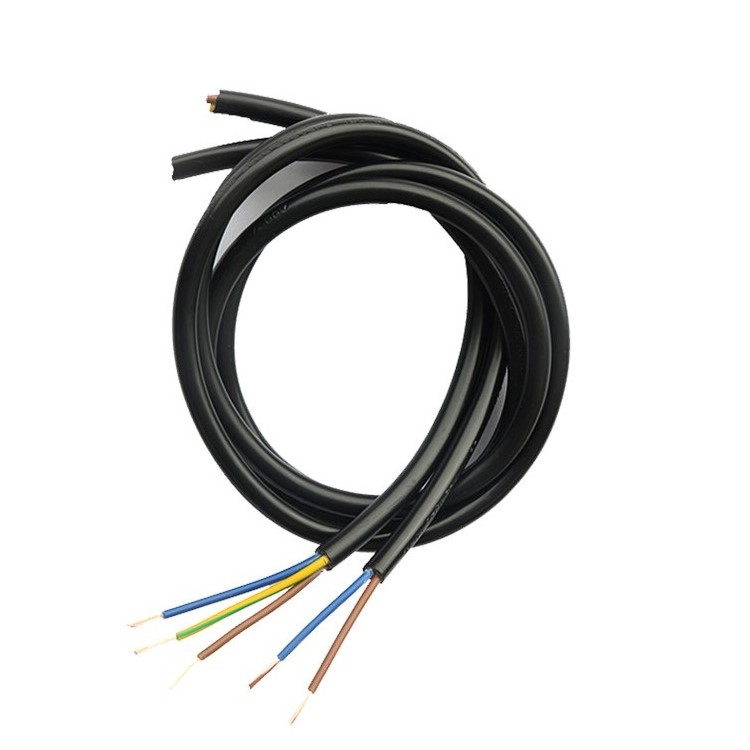

H03VVH2-F/H03VV-F Light PVC Sheathed Cord
The H03VVH2-F/H03VV-F Light PVC Sheathed Cord is a flexible and reliable cable designed for general-purpose internal wiring of electronic and electrical equipment. It features a rated voltage of 300/300V and a temperature rating of 70℃. The cable uses stranded tinned or bare copper conductors in sizes ranging from 0.5 to 0.75mm². It has PVC insulation and jacketing, which are ROHS compliant, ensuring environmental safety. The uniform insulation thickness ensures easy stripping and cutting, facilitating installation. Additionally, it passes the DIN VDE HD 405.1 vertical flame test, providing excellent fire safety. It is resistant to acid, alkali, oil, moisture, and mold, making it suitable for various applications such as general electronic and electrical equipment power connections.
-
H03VVH2-F/H03VV-F
-
zhongxin
-
854449
| Quantity: | |
|---|---|
Product Description
wuxi zhonghui's H03VVH2-F/H03VV-F Light PVC Sheathed Cord is a flexible and reliable cable designed for general-purpose internal wiring of electronic and electrical equipment. It features a rated voltage of 300/300V and a temperature rating of 70℃. The cable uses stranded tinned or bare copper conductors in sizes ranging from 0.5 to 0.75mm². It has PVC insulation and jacketing, which are ROHS compliant, ensuring environmental safety. The uniform insulation thickness ensures easy stripping and cutting, facilitating installation. Additionally, it passes the DIN VDE HD 405.1 vertical flame test, providing excellent fire safety. It is resistant to acid, alkali, oil, moisture, and mold, making it suitable for various applications such as general electronic and electrical equipment power connections.
| Product Specifications | Details |
|---|---|
| Conductor | Stranded bare or tinned copper conductor |
| Insulation | PVC, ROHS compliant |
| Jacket | PVC, ROHS compliant |
| Temperature Rating | 70℃ |
| Voltage Rating | 300/300V |
| Reference Standard | VDE0281, IEC227 |
Performance Parameter
Style | C×mm2 | Insulation | Jacket | Max Resistance (Ω/km, 20℃) | |||||
Nom.Thick. (mm) | Nom.Dia. (mm) | Nom.Thick. (mm) | Nom.Dia. (mm) | ||||||
H03VV-F | 2× | 0.5 | 0.5 | 1.96 | 0.6 | 5.20 | 39.0 | ||
H03VVH2-F | 0.6 | 3.2×5.2 | |||||||
H03VV-F | 0.75 | 0.5 | 2.15 | 0.6 | 5.50 | 26.0 | |||
H03VVH2-F | 0.6 | 3.4×5.6 | |||||||
H03VV-F | 3× | 0.5 | 0.5 | 1.96 | 0.6 | 5.50 | 39.0 | ||
H03VV-F | 0.75 | 0.5 | 2.15 | 0.6 | 5.90 | 26.0 | |||
Certification |
|
|
| ||||||
Product Details: H03VVH2-F/H03VV-F Light PVC Sheathed Cord
Product Description:
The H03VVH2-F/H03VV-F Light PVC Sheathed Cord is a versatile solution for general-purpose electrical applications. It offers reliable performance in various environments, combining flexibility with durability. This cable is commonly used for internal wiring in household appliances, commercial equipment, and portable electrical devices where flexibility and resistance to environmental factors are important.
Product Design:
The H03VVH2-F/H03VV-F cable is designed with stranded bare or tinned copper conductors for excellent conductivity and flexibility. It uses PVC insulation and sheathing, which are ROHS compliant, ensuring environmental safety. The design ensures uniform insulation thickness for easy installation and stripping. Rated for 300V and temperatures up to 70°C, it meets standards such as UL62 and UL2556. Available in various wire configurations, it ensures compatibility with different power requirements.
The H03VVH2-F/H03VV-F cable is designed with stranded bare or tinned copper conductors for excellent conductivity and flexibility. It uses PVC insulation and sheathing, which are ROHS compliant, ensuring environmental safety. The design ensures uniform insulation thickness for easy installation and stripping. Rated for 300V and temperatures up to 70°C, it meets standards such as UL62 and UL2556. Available in various wire configurations, it ensures compatibility with different power requirements.
Product Features
- Temperature and Voltage Rating: Rated for 70℃ and 300/300V, ensuring reliable performance in standard electrical applications.
- Standards Compliance: Adheres to VDE0281 and IEC227 standards, guaranteeing quality and safety for various electrical systems.
- Conductor Type: Features stranded bare or tinned copper conductors for excellent conductivity and flexibility.
- Insulation and Jacket: Utilizes PVC insulation and jacketing, which are ROHS compliant, ensuring environmental safety.
- Application Versatility: Suitable for internal and external wiring in electronic appliances, power instruments, and automotive equipment.
- Uniform Insulation Thickness: Ensures easy stripping and cutting, facilitating efficient installation.
- Flame Resistance: Passes the DIN VDE HD 405.1 vertical flame test, providing excellent fire safety.
Product Advantages
- Enhanced Safety: Compliance with international standards and flame resistance ensure safe operation in various environments.
- Durability: High-quality materials and construction ensure long-lasting performance, even in demanding conditions.
- Versatility: Suitable for a wide range of applications, including internal and external wiring in electronic appliances, power instruments, and automotive equipment.
- Ease of Use: Uniform insulation thickness allows for easy stripping and cutting, making installation quick and efficient.
- Environmental Friendliness: ROHS compliance ensures the product is safe for the environment.
- Wide Application Range: Ideal for general-purpose electronic and electrical equipment power connections, providing stable and reliable performance.
Product Applications:
This cable is widely used in household appliances, commercial equipment, and portable electrical devices. Its flexibility and durability make it suitable for both indoor and outdoor applications. The H03VVH2-F/H03VV-F is ideal for connecting power tools, small appliances, and various types of portable equipment, providing reliable and safe power connections in residential, commercial, and industrial settings.
This cable is widely used in household appliances, commercial equipment, and portable electrical devices. Its flexibility and durability make it suitable for both indoor and outdoor applications. The H03VVH2-F/H03VV-F is ideal for connecting power tools, small appliances, and various types of portable equipment, providing reliable and safe power connections in residential, commercial, and industrial settings.
FAQ (Frequently Asked Questions)
1. Q: What is the H03VVH2-F/H03VV-F Light PVC Sheathed Cord used for?
A:
The H03VVH2-F/H03VV-F Light PVC Sheathed Cord is designed for internal and external wiring in electronic appliances, power instruments, and automotive equipment. It is suitable for general-purpose electrical applications requiring reliable and safe power connections.
A:
The H03VVH2-F/H03VV-F Light PVC Sheathed Cord is designed for internal and external wiring in electronic appliances, power instruments, and automotive equipment. It is suitable for general-purpose electrical applications requiring reliable and safe power connections.
2. Q: What are the key features of the H03VVH2-F/H03VV-F Light PVC Sheathed Cord?
A:The H03VVH2-F/H03VV-F Light PVC Sheathed Cord features stranded bare or tinned copper conductors, PVC insulation and jacketing that is ROHS compliant, a temperature rating of 70℃, and a voltage rating of 300/300V. It meets standards such as VDE0281 and IEC227.
3. Q: What applications is the H03VVH2-F/H03VV-F Light PVC Sheathed Cord suitable for?
A:The H03VVH2-F/H03VV-F Light PVC Sheathed Cord is suitable for a wide range of applications, including internal and external wiring in electronic appliances, power instruments, and automotive equipment. It provides reliable performance in various electrical systems.
4. Q: How should I install and use the H03VVH2-F/H03VV-F Light PVC Sheathed Cord?
A:Ensure the cable is installed in accordance with local electrical codes and standards. Avoid excessive bending or stretching. Use appropriate connectors and terminations to ensure a secure connection. Regularly inspect the cable for any signs of damage or wear.
5. Q: How should I maintain the H03VVH2-F/H03VV-F Light PVC Sheathed Cord?
A:Regularly inspect the cable for physical damage or wear. Keep the cable clean and free from dirt and debris. Ensure connections are secure and free from corrosion. Replace the cable immediately if any damage is detected.
6. Q: Is the H03VVH2-F/H03VV-F Light PVC Sheathed Cord environmentally friendly?
A:Yes, the H03VVH2-F/H03VV-F Light PVC Sheathed Cord is environmentally friendly. It meets ROHS standards and uses materials that are safe for the environment.
