Ultimate Guide to Selecting ARC Welding Cable for Industrial Welding Applications

Industrial welding demands precision, extreme durability, and relentless power delivery. Yet, many facilities overlook a critical component connecting the power source to the workpiece: the cable. Your electrical leads act as the primary arteries for your welding operations. If you compromise on these connections, you jeopardize the entire system.

Improper cable selection triggers severe operational risks. You might experience sudden voltage drops across the circuit. Dangerous thermal degradation can occur during heavy use. When you undersize or misapply these leads, you invite unexpected downtime. You also exhaust your welders and risk violating strict OSHA regulations. Every drop in voltage weakens your arc stability and ruins weld integrity.

This guide offers a definitive framework for evaluating, sizing, and procuring the right products. You will learn how to calculate precise ampacity limits for your specific industrial parameters. We will explore how to choose the correct jacket materials for harsh environments. Ultimately, you will build safe, compliant, and highly efficient welding setups.

Key Takeaways

• Total circuit length (lead plus ground) dictates AWG sizing, not just the power source output.

• Jacket material selection must align directly with environmental hazards (abrasion, oil, extreme temperatures) to ensure longevity.

• Higher copper strand counts improve flexibility and reduce operator fatigue but require specific termination methods.

• Factoring in duty cycle prevents over-specifying and controls procurement costs without sacrificing safety.

The Cost of Improper Selection in High-Demand Environments

Choosing the wrong cable size or material creates immediate cascading failures on the shop floor. Operators often blame the welding machine for poor performance. In reality, the wiring infrastructure usually causes these specific industrial bottlenecks. By using properly specified ARC Welding Cable, you eliminate the hidden electrical resistance dragging down your operational efficiency.

Equipment Strain

Undersized cables severely throttle electrical flow. They cause massive voltage drops across the entire circuit. Your welding machines must work much harder to push the required current. This constant overcompensation degrades internal power source components rapidly. Inverter boards overheat, and transformer coils burn out prematurely. You shorten the overall lifespan of expensive industrial welding equipment.

Weld Quality Deficiencies

A poor cable setup directly hurts your weld pool dynamics. Electrical resistance fluctuates wildly when wires overheat. This inconsistent amperage delivery at the stinger or torch creates severe structural defects. Operators often encounter frustrating porosity. You might also see a dangerous lack of fusion in thick metal joints. Arc wandering becomes a constant battle, forcing costly rework.

Safety & Compliance Risks

Pushing high current through inadequate wiring generates extreme internal heat. Copper conductors expand rapidly, pushing against the external jacket. Eventually, the insulation melts or cracks open. This exposes live copper to grounded metal surfaces, creating lethal shock hazards. Meeting standard safety ratings like RoHS or ICEA prevents these dangerous thermal overloads. Compliance keeps facilities safe and avoids severe regulatory penalties.

The Core Sizing Framework: Ampacity, Distance, and Duty Cycle

Guessing your wire gauge leads to disastrous electrical consequences. You must employ a strict mathematical approach to cable sizing. This core framework relies on three interdependent variables. You must balance maximum current, the physical length of the circuit, and the equipment duty cycle.

Calculating Total Circuit Length

Many fabricators make a critical measuring error. They only measure the distance from the machine to the torch. You must measure the complete electrical loop. This includes the power lead running to the electrode plus the work clamp cable returning to the power source. A setup located 50 feet from the machine actually requires 100 feet of total wire. Electrical resistance accumulates over this entire distance. Longer runs require significantly larger American Wire Gauge (AWG) sizes to prevent voltage drop.

Factoring the Duty Cycle

Duty cycle defines how long a machine can operate safely within a ten-minute window. Industrial welding differs vastly from occasional hobby fabrication. You must match your wire gauge to your operational duty cycle.

• 20% Duty Cycle: Typical for light maintenance. The machine runs for two minutes, then cools for eight.

• 60% Duty Cycle: Standard for medium-heavy fabrication. It provides six continuous minutes of arc time.

• 100% Duty Cycle: Required for continuous automated welding.

Continuous automated cells require much thicker cables than intermittent manual welding. A 300-amp robotic welder demands heavier wiring than a 300-amp manual stick welder.

Cross-Referencing Ampacity Charts

You must map your maximum operational amperage to specific AWG sizes. Industrial systems typically range from 100A up to 600A. Wire sizes scale from #4 (smaller) up to massive 4/0 (largest). Always include a margin of safety. If your calculations land directly between two sizes, always step up to the next heavier gauge. This buffer prevents unexpected overheating during sudden current spikes.

Standard Welding Cable Sizing Reference Chart

Evaluating Jacket Materials for Environmental Defense

Copper carries the current, but the jacket protects the entire investment. Choosing the wrong outer insulation guarantees premature failure. You must evaluate your shop floor environment rigorously. Factors like dragging over concrete, chemical spills, and radiant heat destroy subpar insulation quickly. Investing in High-Quality ARC Welding Cable ensures the jacket chemistry matches your hardest industrial challenges.

EPDM (Ethylene Propylene Diene Monomer)

EPDM serves as the excellent baseline choice for standard indoor fabrication. It delivers high flexibility for manual operators navigating complex structural weldments. EPDM provides moderate abrasion resistance against smooth concrete floors. It handles standard temperature ratings effectively, usually ranging from -50°C to 105°C. For general manufacturing and enclosed fabrication shops, EPDM offers a highly reliable performance profile.

Neoprene & CPE (Chlorinated Polyethylene)

Harsh industrial environments rapidly destroy standard EPDM. You must deploy Neoprene or CPE jackets in aggressive settings. Petrochemical plants, offshore shipyards, and heavy machinery manufacturing demand these rugged materials. They offer superior resistance to cutting fluids, synthetic oils, and direct flame exposure. CPE also withstands intense UV radiation during outdoor construction. When heavy equipment rolls over your leads, CPE prevents the copper core from crushing.

Thermoplastic Alternatives

Some operations utilize thermoplastic elastomer (TPE) jackets for light-duty applications. Manufacturers position TPE as a cost-reduction alternative. However, you must understand its strict limitations. Thermoplastics lose flexibility dramatically in cold-weather performance. They stiffen and become incredibly difficult to drag. Furthermore, extreme radiant heat can soften TPE, making it vulnerable to tearing. Reserve thermoplastics strictly for climate-controlled, low-impact environments.

Copper Stranding and Flexibility Standards

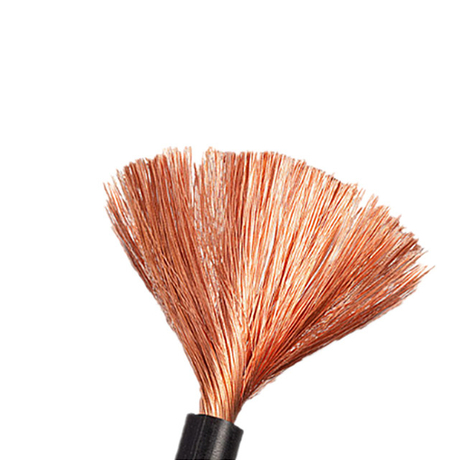

Wire flexibility dictates operator comfort and connection durability. A single solid piece of copper cannot bend. Therefore, manufacturers bundle hundreds or thousands of tiny copper strands together. The gauge of these individual strands determines how easily the finished product bends. Integrating highly stranded ARC Welding Cable directly influences daily productivity metrics.

Class K vs. Class M Stranding

Industrial standards divide stranding into two primary classes. You must specify the correct class for your application.

• Class K Stranding: Features 30 AWG individual copper strands. This provides standard flexibility suitable for most long stationary runs or ground leads.

• Class M Stranding: Utilizes much finer 34 AWG strands. This high-flexibility design creates a highly supple wire, perfect for dynamic movement.

Operator Ergonomics

Manual welders manipulate heavy stingers and TIG torches for eight hours a day. Stiff wires create severe wrist torque. This constant ergonomic strain accelerates operator fatigue and triggers repetitive motion injuries. Highly stranded, premium wiring reduces this wrist fatigue dramatically. When the lead drapes smoothly over the operator's shoulder, they maintain tighter arc control. Better ergonomics directly yield cleaner, more consistent bead profiles.

Robotic and Automated Applications

Robotic arms whip, twist, and bend leads thousands of times per shift. Standard stranding fails quickly under this relentless mechanical stress. The internal copper work-hardens and snaps. Continuous-flex robotic applications require highly specialized stranding designs. Manufacturers lay the copper strands in specific geometric bundles. This internal architecture prevents friction and breakage over millions of repetitive motion cycles.

Implementation Risks and Accessory Compatibility

Buying premium wire solves only half the problem. Most electrical failures occur at the connection points, not in the middle of the run. You must secure every termination flawlessly. Poor accessory compatibility creates dangerous bottlenecks that melt expensive components.

Termination Failures

Fine-stranded copper requires specialized connection techniques. You risk severe damage by using improper lugs. Loose crimps allow the fine strands to slip out under tension. This creates micro-arcing inside the lug housing. You must use specialized flared compression lugs designed specifically for fine-stranded wiring. Furthermore, apply heavy-duty, adhesive-lined heat shrink over every connection. This prevents corrosive oxidation and seals out industrial moisture at the critical joint.

Whip Cables (Pigtails)

Running a massive 4/0 wire directly to a stinger makes manual welding virtually impossible. It is simply too heavy. Experts solve this by splicing a "whip cable" or pigtail into the circuit. You step down to a smaller, highly flexible 10 to 15-foot lead at the electrode end. This intelligent setup balances overall circuit affordability. It keeps the main run heavy enough to carry the current while ensuring maximum operator comfort at the torch.

Connectors and Quick Disconnects

Industrial shops frequently use Dinse or Tweco-style quick disconnects to swap machines quickly. You must ensure these connectors match your exact ampacity and AWG specifications. Forcing a 2/0 wire into a 1/0 connector shears off outer copper strands. This drastically reduces current capacity. The mismatched connection acts as a resistor, generating massive localized heat. This bottleneck heating eventually melts the brass connector entirely.

Shortlisting and Procurement Checklist

Procuring bulk supplies requires strict engineering oversight. You cannot simply order based on a generic AWG number. Follow this standardized procedure to guarantee maximum performance and workplace safety. Sourcing High-Quality ARC Welding Cable requires verifying structural integrity before placing major orders.

1. Define the Maximum Parameters: Document the absolute highest amperage your machines will push. Calculate the longest potential circuit length your facility layout demands. Note the highest required duty cycle for your most aggressive welding procedures.

2. Audit the Environment: Walk the shop floor. Identify exposure to caustic chemicals, synthetic lubricants, or extreme ambient heat. Look for areas where forklifts or cranes might subject wiring to physical crushing.

3. Verify Certifications: Demand comprehensive supplier documentation. Ensure their spec sheets provide exact individual strand counts. Verify their temperature ratings. Confirm total compliance with local industrial codes, such as ICEA or UL standards.

4. Sample Testing: Never buy blind. Request physical samples before bulk procurement. Test lug compatibility on your standard shop crimpers. Measure the bend radius physically to ensure it meets your ergonomic expectations.

Conclusion

Securing the right electrical infrastructure separates highly efficient fabrication shops from struggling operations. You must evaluate three major pillars: size for the circuit length, jacket for the environmental hazards, and strand count for the operator's ergonomic needs. Ignoring any of these elements invites dangerous voltage drops and frustrating equipment failures.

When you push your infrastructure to continuous 100% duty cycle limits, always consult with your engineering teams or certified industrial suppliers. Do not rely on guesswork when sizing heavy-duty applications. We strongly recommend auditing your facility immediately. Review your current inventory against standardized ampacity and distance charts. Replace stiff, cracked, or undersized leads today to protect your welders and maximize your machine lifespan.

FAQ

Q: Can I use standard battery cable instead of dedicated welding cable?

A: No. Battery cables use much thicker, stiffer copper strands. They lack the extreme flexibility required for welding manipulation. Additionally, battery cable insulation cannot withstand the severe radiant heat, sparks, or slag generated during industrial fabrication. Using them causes rapid insulation failure and severe operator fatigue.

Q: Does AC vs. DC welding change the required cable size?

A: The standard ampacity charts apply universally to both AC and DC welding regarding wire gauge. However, high-frequency AC applications (like heavy aluminum TIG) can create unique electrical stress. You might require specialized high-dielectric insulation to prevent high-frequency current from leaking through the jacket to grounded surfaces.

Q: How often should industrial welding cables be inspected or replaced?

A: You should perform a visual inspection daily before striking an arc. Look closely for jacket compromises, deep cuts, or stiffened sections from heat damage. If you see visible bare copper at the connection points or notice the wire getting unusually hot during standard operation, replace it immediately.

Q: Why is my welding cable overheating at the machine connection?

A: Overheating usually stems from high resistance points, not an overall failure. You likely have loose mechanical connections at the terminal. It could also result from undersized quick-disconnects, improperly crimped lugs, or oxidized copper strands. Always clean the terminals, tighten the studs, and ensure your connectors match the exact wire gauge.
