ZH-3
Zhongxin
85444221
Availability: | |
---|---|
Quantity: | |

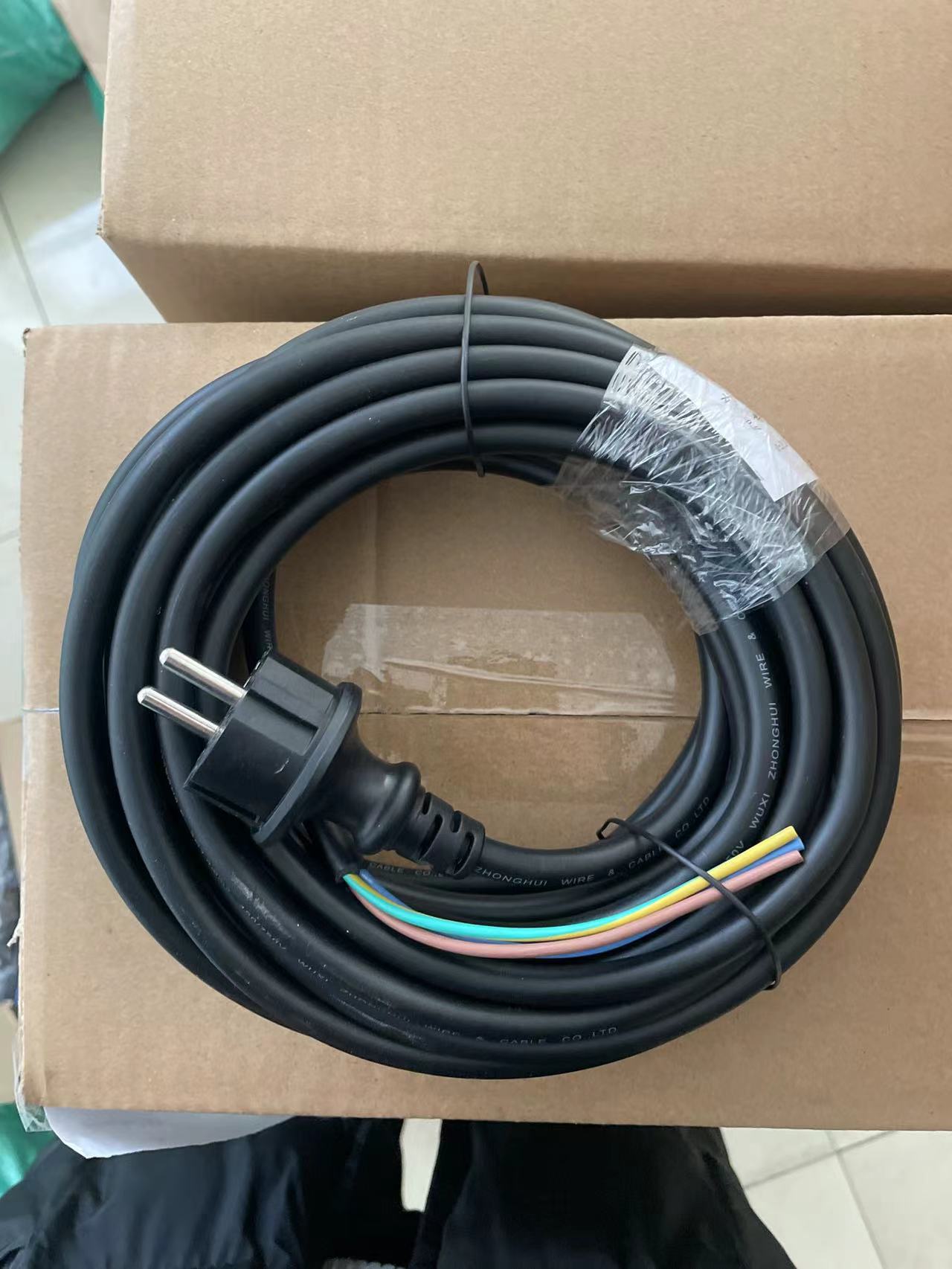

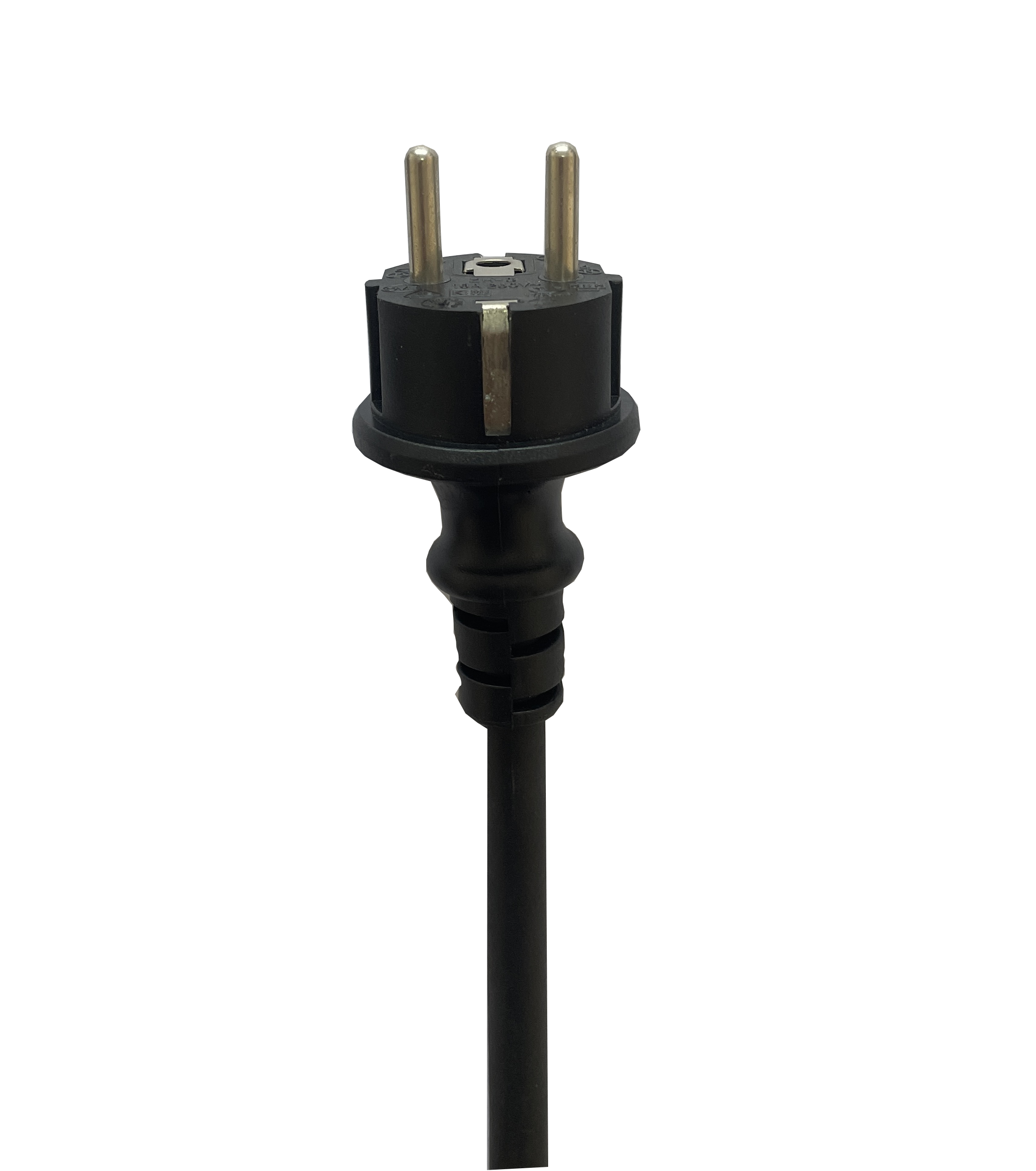

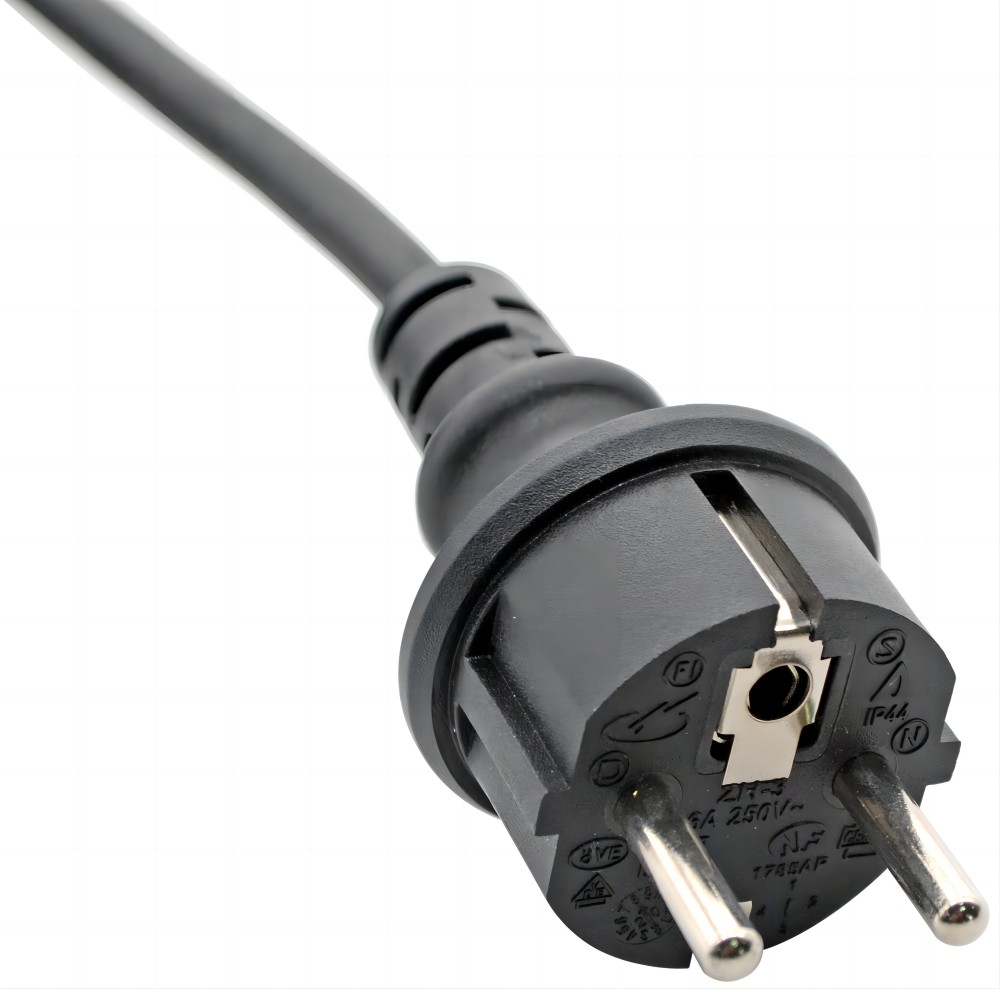

The ZH 3 Power Supply Cord is a high-quality, safety-certified cable designed for transmitting electrical power in medium to high-load applications. This cord features a multi-stranded copper conductor, enclosed in a robust thermoplastic insulation layer, surrounded by a durable outer sheath that protects against physical damage and environmental factors. The conductor configuration (typically three cores for grounded systems: live, neutral, and earth) ensures safe power distribution, with each wire color-coded according to international standards (e.g., brown for live, blue for neutral, green/yellow for earth).
Rated for 250V and a temperature range of -30°C to +90°C, ZH 3 is suitable for both indoor and outdoor use in moderate climates. The outer sheath is resistant to abrasion, sunlight, and mild chemical exposure, making it ideal for applications where the cord may be subjected to occasional physical stress. Available in various AWG sizes (16AWG to 10AWG), it can handle current loads from 10A to 15A, ensuring compatibility with a wide range of electrical devices and appliances.
Three-Conductor Grounded Design: Provides a safe path for fault currents, reducing the risk of electric shock in compliant installations.
Heavy-Duty Sheath: The outer layer resists cuts, abrasions, and UV degradation, extending the cord's lifespan in exposed environments.
High Thermal Tolerance: Maintains performance in warmer conditions, making it suitable for powering heat-generating devices like space heaters or industrial machinery.
Compliance with Global Standards: Meets safety certifications such as IEC 60227 and local regulations (e.g., CE, NEMA), ensuring use in international markets.
Flexible Stranded Conductors: Allow for easy termination and resistance to metal fatigue, even in applications with frequent plugging or minor movement.
The ZH 3 Power Supply Cord is widely used in:
Household Appliances: Connecting refrigerators, washing machines, and electric stoves, where reliable power transmission and grounding are essential for safety.
Industrial Equipment: Powering pumps, motors, and control panels in factories, offering durability against mechanical stress and moderate chemical exposure.
Commercial Installations: Used in office buildings for air conditioning units, servers, and large-scale printers, requiring high-current capacity and compliance with safety codes.
Outdoor Applications: Suitable for outdoor lighting, garden power tools, and temporary power setups in dry environments, thanks to its weather-resistant sheath.
Medical Devices: In non-critical medical equipment where grounded power is needed, ensuring patient and operator safety through proper earthing.Its combination of safety features, robust construction, and versatile current-handling capabilities makes ZH 3 a trusted choice for any application requiring a reliable, certified power supply solution.
Parameter | Value |
---|---|
Type No. | ZH-3 |
Standard | IEC 60884-1, DS-60884-2-D1, SFS 5610, NEK 502, SS 428 08 34, NF C 61-314, SFS 5610, NEN 1020 |
Amperage | 16A |
Voltage | 250V |
Conductor Size | 18AWG/2C, 16AWG/2C, 14AWG/2C |
Wire Types | H03VV-F 3G 0.75 mm², H05VV-F 3G 0.75-2.5 mm², H05RN-F 3G 0.75-1.0 mm², H07RN-F 3G 1.0-1.5 mm² |
Approvals | VDE, S+ seguranc,a OCP 0004 |
Color | Black, white, or gray |
Length | Customizable |
Performance Parameter
Type No. | Standard | Available with cords | Approvals |
ZH-3 16A 250V~ | DS-60884-2-D1 SFS 5610 NEK 502 IEC 60884-1 SS 428 08 34 NF C 61-314 SFS 5610 NEN 1020 NEK 502 | H03VV-F 3G 0.75 mm2 |
|
H05VV-F 3G 0.75-2.5 mm2 | |||
H05RN-F 3G 0.75-1.0 mm2 | |||
H07RN-F 3G 1.0-1.5 mm2 |
