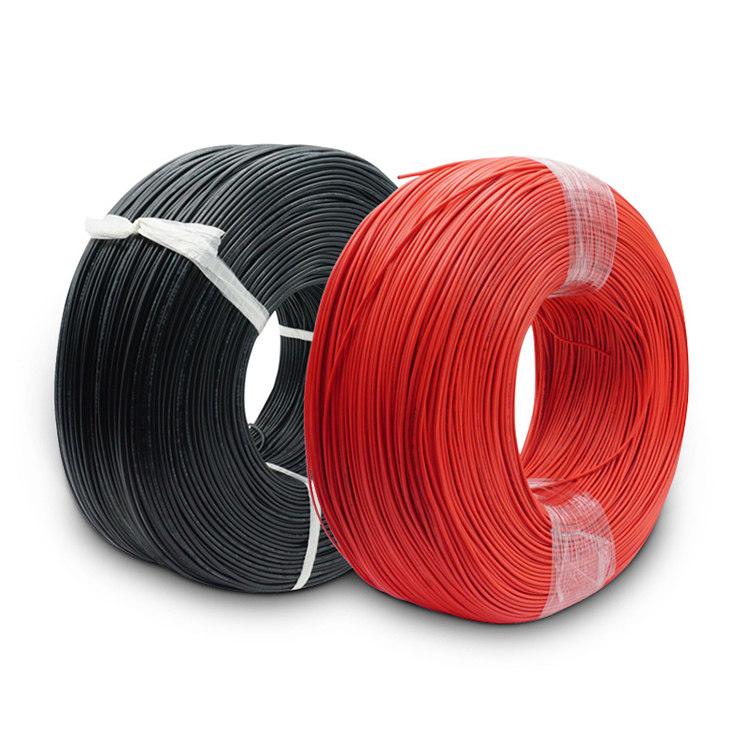

UL Style 3385 Electronic Wire
UL Style 3385 Electronic Wire is a high - quality wire designed for internal wiring in electronic and electrical equipment. It is widely used in various applications due to its excellent electrical performance and safety features. The wire is manufactured in accordance with UL758 and UL1581 standards, ensuring reliable and safe performance. It has a temperature rating of 105℃ and a voltage rating of 300V. The conductor is preferably tinned copper stranded, but bare copper stranded or single conductor options are also available, ranging from 32AWG to 10AWG. The insulation is lead - free XLPO, which is environmentally friendly and passes ROHS compliance.
-
UL Style 3385
-
Zhongxin
-
85444221
| Quantity: | |
|---|---|
Product Description
UL Style 3385 Electronic Wire
Product Description
UL Style 3385 Electronic Wire is a high - quality wire designed for internal wiring in electronic and electrical equipment. It is widely used in various applications due to its excellent electrical performance and safety features. The wire is manufactured in accordance with UL758 and UL1581 standards, ensuring reliable and safe performance. It has a temperature rating of 105℃ and a voltage rating of 300V. The conductor is preferably tinned copper stranded, but bare copper stranded or single conductor options are also available, ranging from 32AWG to 10AWG. The insulation is lead - free XLPO, which is environmentally friendly and passes ROHS compliance.
Specifications
| Parameter | Details |
|---|---|
| Reference Standard | UL758, UL1581 |
| Conductor | Tinned or Bare, Stranded or Solid Copper (32AWG to 10AWG) |
| Insulation Material | Lead-Free XLPO, PASS ROHS |
| Voltage Rating | 300V |
| Operating Temperature | 105℃ |
| Bending Radius | 4 x Outer Diameter |
Performance Parameter
导体 | 绝缘 Insulation | ||||
Conductor | 最大导体电阻 | ||||
MAX.COND Resistance | |||||
线规 AWG | 构成 (No./mm) | 外径 | 绝缘厚度 | 外径 | (Ω/km, 20℃, DC) |
Nom.Dia. | Nom.Thick. | Nom.Dia. | |||
(mm) | (mm) | (mm) | |||
30 | 7/0.10 | 0.3 | 0.38 | 1.15 | 381 |
28 | 7/0.127 | 0.38 | 0.38 | 1.2 | 239 |
26 | 7/0.16 | 0.48 | 0.38 | 1.3 | 148.94 |
24 | 11/0.16 | 0.61 | 0.38 | 1.43 | 93.25 |
22 | 17/0.16 | 0.76 | 0.38 | 1.58 | 55 |
20 | 26/0.16 | 0.94 | 0.38 | 1.76 | 34.6 |
18 | 41/0.16 | 1.18 | 0.38 | 2 | 21.8 |
16 | 26/0.254 | 1.49 | 0.38 | 2.32 | 14.64 |
14 | 41/0.254 | 1.88 | 0.38 | 2.7 | 9.25 |
12 | 65/0.254 | 2.36 | 0.38 | 3.2 | 5.82 |
10 | 105/0.254 | 3 | 0.38 | 4 | 3.66 |
产品认证 Certification |
|
| |||
Product Design:

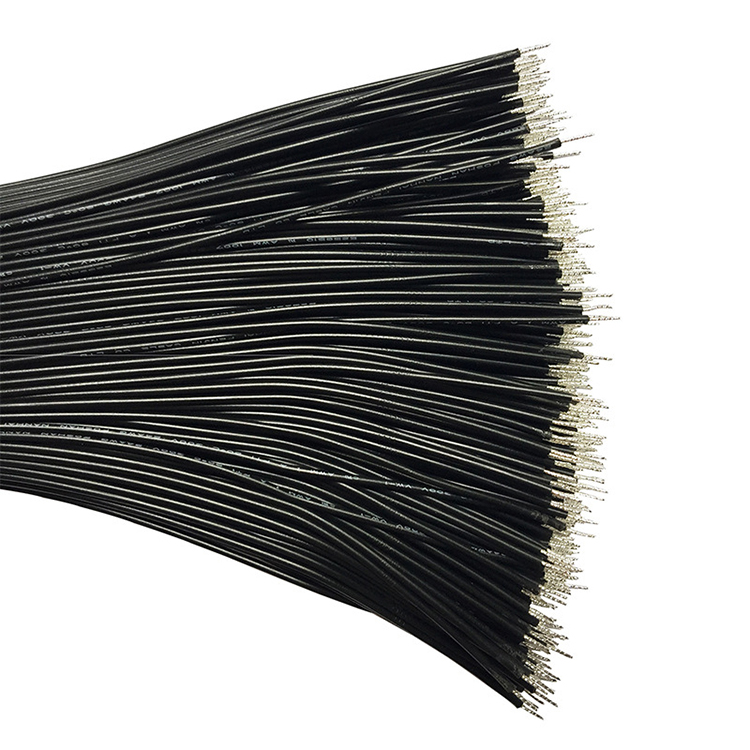

The UL Style 3385 Electronic Wire is constructed with stranded bare or tinned copper conductors for superior conductivity and flexibility. The XLPO insulation provides excellent thermal stability and resistance to environmental factors. The design ensures uniform insulation thickness for easy installation and optimal performance. It is available in various AWG sizes from 32 to 10, making it suitable for different power requirements. The wire is also ROHS compliant, ensuring environmental safety.
The UL Style 3385 Electronic Wire is constructed with stranded bare or tinned copper conductors for superior conductivity and flexibility. The XLPO insulation provides excellent thermal stability and resistance to environmental factors. The design ensures uniform insulation thickness for easy installation and optimal performance. It is available in various AWG sizes from 32 to 10, making it suitable for different power requirements. The wire is also ROHS compliant, ensuring environmental safety.
Technical Features
- Uniform Insulation Thickness: Ensures easy stripping and cutting during installation.
- Conductor: Tinned or bare, stranded or solid copper conductors (32AWG to 10AWG), providing excellent flexibility and conductivity.
- Insulation Material: Lead - free XLPO insulation, which is durable and environmentally friendly.
- Voltage Rating: 300V, making it suitable for low - voltage applications.
- Temperature Rating: 105℃, making it suitable for high - temperature environments.
Product Advantages
- High - Quality Conductors: The wire uses tinned or bare copper conductors, providing excellent electrical conductivity and mechanical strength.
- Durable Insulation: The lead - free XLPO insulation is durable and environmentally friendly, ensuring long - term performance.
- Flame Retardancy: The wire has passed the UL FT2 flame test, ensuring enhanced fire safety.

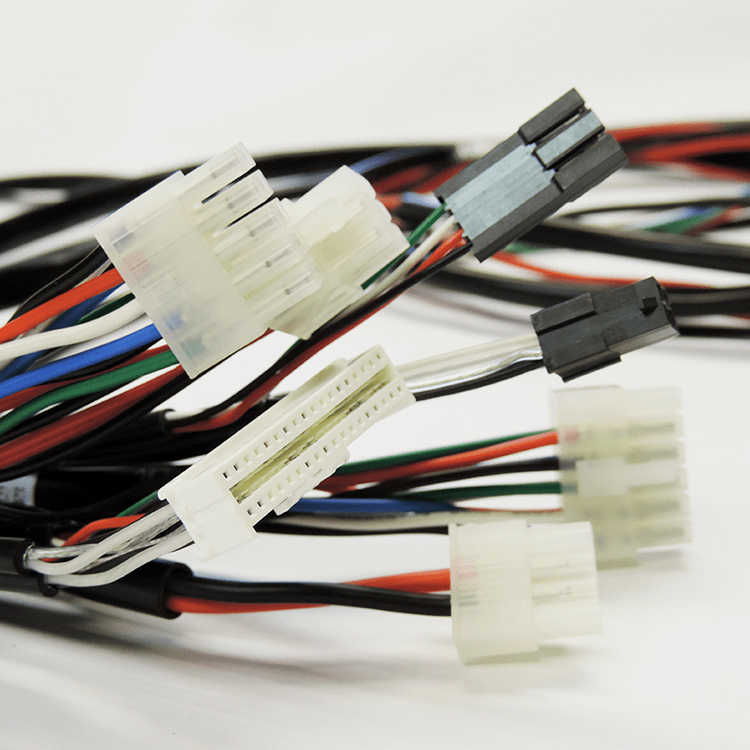

Applications
- Consumer Electronics: Ideal for internal wiring in consumer electronics such as TVs, radios, and computers.
- Industrial Machinery: Suitable for internal wiring in industrial machinery and equipment.
- Communication Systems: Used in communication systems for signal transmission.
- Appliances: Suitable for internal wiring in various appliances and equipment.
FAQ (Frequently Asked Questions)
1. Q: What are the key features of the UL Style 3385 Electronic Wire?
A:
The UL Style 3385 Electronic Wire features a rated temperature of 105℃ and a rated voltage of 300V. It uses cross-linked polyethylene (XLPE) insulation, which is flame-retardant and passes the UL VW-1 vertical flame test. It is available in various AWG sizes from 32 to 10, with options for solid or stranded, tinned or bare copper conductors.
The UL Style 3385 Electronic Wire features a rated temperature of 105℃ and a rated voltage of 300V. It uses cross-linked polyethylene (XLPE) insulation, which is flame-retardant and passes the UL VW-1 vertical flame test. It is available in various AWG sizes from 32 to 10, with options for solid or stranded, tinned or bare copper conductors.
2. Q: How should I install and use the UL Style 3385 Electronic Wire?
A:Ensure the wire is installed in accordance with local electrical codes and standards. Avoid excessive bending or stretching. Use appropriate connectors and terminations to ensure a secure connection. Regularly inspect the wire for any signs of damage or wear.
