UL Style 3289 Electronic Wire
The UL Style 3289 Electronic Wire is a high-performance cable designed for internal wiring in electrical and electronic equipment. It features irradiation-cross-linked polymeric insulation, providing excellent mechanical, flame-resistant, and electrical properties. This wire is constructed with stranded, soft-annealed tinned copper conductors and is commonly used for motor leads, coil leads, transformers, control panels, and appliance wiring. It meets standards such as UL 758 and UL 1581, ensuring safety and reliability. The cable is rated for temperatures up to 150°C and voltages of 600V AC or 750V DC. It is also RoHS compliant and passes the UL VW-1 and FT2 flame tests, making it suitable for applications requiring high fire resistance.
-
UL Style 3289
-
Zhongxin
-
85444221
| Quantity: | |
|---|---|
Product Description
wuxi zhonghui's UL Style 3289 Electronic Wire is a high-performance cable designed for internal wiring in electrical and electronic equipment. It features irradiation-cross-linked polymeric insulation, providing excellent mechanical, flame-resistant, and electrical properties. This wire is constructed with stranded, soft-annealed tinned copper conductors and is commonly used for motor leads, coil leads, transformers, control panels, and appliance wiring. It meets standards such as UL 758 and UL 1581, ensuring safety and reliability. The cable is rated for temperatures up to 150°C and voltages of 600V AC or 750V DC. It is also RoHS compliant and passes the UL VW-1 and FT2 flame tests, making it suitable for applications requiring high fire resistance.
Product Specifications
| Parameter | Value |
|---|---|
| Conductor | Tinned copper stranded, bare copper stranded, or single conductor (30AWG - 4/0AWG) |
| Insulation | Lead-free XLPO |
| Temperature Rating | 150℃ |
| Voltage Rating | 600V or 750V |
| Standards | UL758, UL1581 |
Performance Parameter
导体 Conductor | 绝缘 Insulation | 最大导体电阻 MAX.COND Resistance (Ω/km, 20℃, DC) | ||||
线规 AWG | 构成 (No./mm) | 外径 Nom.Dia. (mm) | 绝缘厚度 Nom.Thick. (mm) | 外径 Nom.Dia. (mm) | ||
30 | 7/0.10 | 0.30 | 0.76 | 1.90 | 381 | |
28 | 7/0.127 | 0.38 | 0.76 | 2.00 | 239 | |
26 | 7/0.16 | 0.48 | 0.76 | 2.10 | 150 | |
24 | 11/0.16 | 0.61 | 0.76 | 2.20 | 94.2 | |
22 | 17/0.16 | 0.76 | 0.76 | 2.35 | 59.4 | |
20 | 26/0.16 | 0.94 | 0.76 | 2.55 | 36.7 | |
18 | 16/0.254 | 1.15 | 0.76 | 2.80 | 23.2 | |
16 | 26/0.254 | 1.50 | 0.76 | 3.15 | 14.6 | |
14 | 41/0.254 | 1.88 | 0.76 | 3.55 | 8.96 | |
12 | 65/0.254 | 2.36 | 0.76 | 4.05 | 5.64 | |
10 | 105/0.254 | 3.10 | 0.76 | 4.90 | 3.546 | |
8 | 168/0.254 | 4.25 | 1.15 | 6.60 | 2.23 | |
6 | 266/0.254 | 5.35 | 1.53 | 8.60 | 1.403 | |
4 | 420/0.254 | 6.70 | 1.53 | 9.90 | 0.882 | |
2 | 665/0.254 | 8.45 | 1.53 | 11.60 | 0.5548 | |
1 | 836/0.254 | 9.50 | 2.03 | 13.70 | 0.4398 | |
1/0 | 1045/0.254 | 10.60 | 2.03 | 14.90 | 0.3487 | |
2/0 | 1330/0.254 | 12.00 | 2.03 | 16.20 | 0.2766 | |
3/0 | 1672/0.254 | 13.45 | 2.03 | 17.70 | 0.2194 | |
4/0 | 2109/0.254 | 14.85 | 2.03 | 19.10 | 0.1722 | |
产品认证 Certification |
|
| ||||
UL Style 3289 Electronic Wire
Product Description:
The UL Style 3289 Electronic Wire is a high-performance cable designed for internal wiring in electrical and electronic equipment. It features irradiation-cross-linked polymeric insulation, providing excellent mechanical, flame-resistant, and electrical properties. This wire is constructed with stranded, soft-annealed tinned copper conductors and is commonly used for motor leads, coil leads, transformers, control panels, and appliance wiring. It meets standards such as UL 758 and UL 1581, ensuring safety and reliability. The cable is rated for temperatures up to 150°C and voltages of 600V AC or 750V DC. It is also RoHS compliant and passes the UL VW-1 and FT2 flame tests, making it suitable for applications requiring high fire resistance.
Product Design:
The UL Style 3289 wire is designed with stranded, soft-annealed tinned copper conductors for superior conductivity and flexibility. The insulation is made of irradiated cross-linked polyethylene (XLPE), which is mechanically robust and resistant to most media, impregnation resins, and insulating varnishes. The design ensures uniform insulation thickness, facilitating easy stripping and cutting. It is available in a variety of American wire gauge (AWG) sizes, from 30 AWG to 4/0 AWG, and in multiple insulation colors for easy identification.
The UL Style 3289 wire is designed with stranded, soft-annealed tinned copper conductors for superior conductivity and flexibility. The insulation is made of irradiated cross-linked polyethylene (XLPE), which is mechanically robust and resistant to most media, impregnation resins, and insulating varnishes. The design ensures uniform insulation thickness, facilitating easy stripping and cutting. It is available in a variety of American wire gauge (AWG) sizes, from 30 AWG to 4/0 AWG, and in multiple insulation colors for easy identification.
Product Features
- Uniform Insulation Thickness: The precisely controlled insulation thickness not only enables hassle - free stripping and cutting but also guarantees uniform electrical performance throughout the wire .
- Flame - Retardant: The wire's ability to resist flames, as proven by the UL FT2 flame test, makes it a reliable choice for applications where fire safety is a top priority .
- Versatile Applications: UL Style 3289 Electronic Wire is widely used in the internal wiring of various electronic and electrical equipment, such as industrial control systems, power supplies, and high - voltage devices .
Product Advantages
- High - Temperature Resistance: With a temperature rating of 150℃, UL Style 3289 Electronic Wire can withstand high - temperature environments, ensuring stable performance in demanding applications .
- Versatile Voltage Options: Available in 600V and 750V ratings, this wire offers flexibility to meet different voltage requirements, making it suitable for a wide range of electronic and electrical equipment .
- Excellent Electrical Performance: The uniform insulation thickness ensures easy stripping and cutting, facilitating efficient installation and maintenance while maintaining consistent electrical performance .
- Flame - Retardant: Having passed the UL FT2 flame test, this wire exhibits outstanding flame - retardant properties, enhancing safety in case of fire and providing peace of mind for users .
Product Applications:

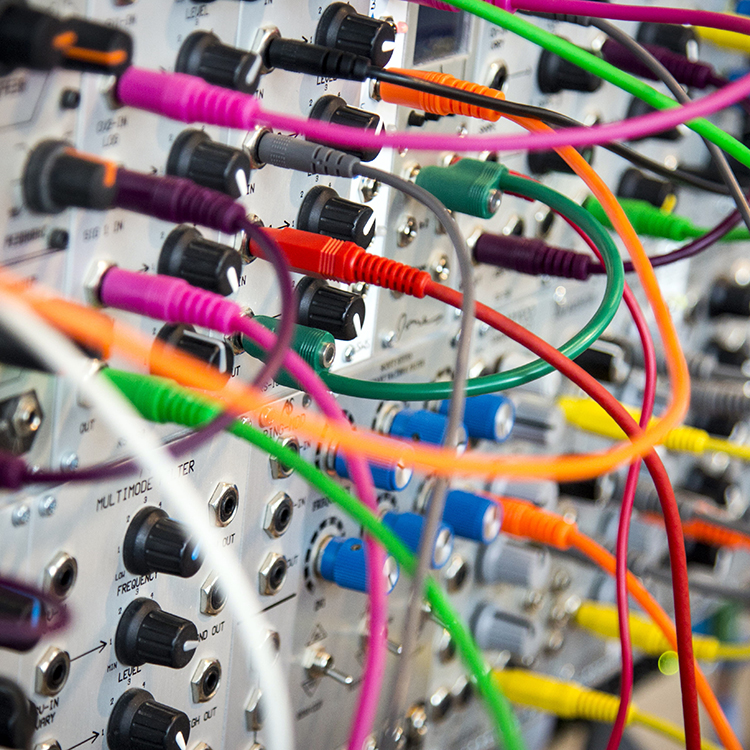

This wire is widely used for internal wiring in motors, transformers, switchboards, lighting equipment, and control panels. It is also suitable for protected and fixed installations inside electrical equipment. The UL Style 3289 is ideal for applications that demand high-temperature resistance and reliable performance, such as in electrical panels, switchgear, and electronic devices. Its compact design and flexibility make it suitable for space-saving wiring in various industrial and commercial settings.
FAQ (Frequently Asked Questions)
1. Q: What is the UL Style 3289 Electronic Wire used for?
A:
The UL Style 3289 Electronic Wire is designed for internal wiring in electrical and electronic equipment. It is commonly used for motor leads, coil leads, transformers, control panels, and appliance wiring. It is suitable for applications requiring high-temperature resistance and reliable performance.
A:
The UL Style 3289 Electronic Wire is designed for internal wiring in electrical and electronic equipment. It is commonly used for motor leads, coil leads, transformers, control panels, and appliance wiring. It is suitable for applications requiring high-temperature resistance and reliable performance.
2. Q: What are the key features of the UL Style 3289 Electronic Wire?
A:The UL Style 3289 Electronic Wire features irradiation-cross-linked polymeric insulation, providing excellent mechanical, flame-resistant, and electrical properties. It uses stranded, soft-annealed tinned copper conductors for superior conductivity and flexibility. The wire is rated for temperatures up to 150°C and voltages of 600V AC or 750V DC.
3. Q: What applications is the UL Style 3289 Electronic Wire suitable for?
A:The UL Style 3289 Electronic Wire is suitable for a wide range of applications, including internal wiring in motors, transformers, switchboards, lighting equipment, and control panels. It is ideal for use in electrical panels, switchgear, and electronic devices.
4. Q: How should I install and use the UL Style 3289 Electronic Wire?
A:Ensure the cable is installed in accordance with local electrical codes and standards. Avoid excessive bending or stretching. Use appropriate connectors and terminations to ensure a secure connection. Regularly inspect the cable for any signs of damage or wear.
5. Q: How should I maintain the UL Style 3289 Electronic Wire?
A:Regularly inspect the cable for physical damage or wear. Keep the cable clean and free from dirt and debris. Ensure connections are secure and free from corrosion. Replace the cable immediately if any damage is detected.
6. Q: Is the UL Style 3289 Electronic Wire environmentally friendly?
A:Yes, the UL Style 3289 Electronic Wire is environmentally friendly. It meets ROHS standards and uses materials that are safe for the environment.
