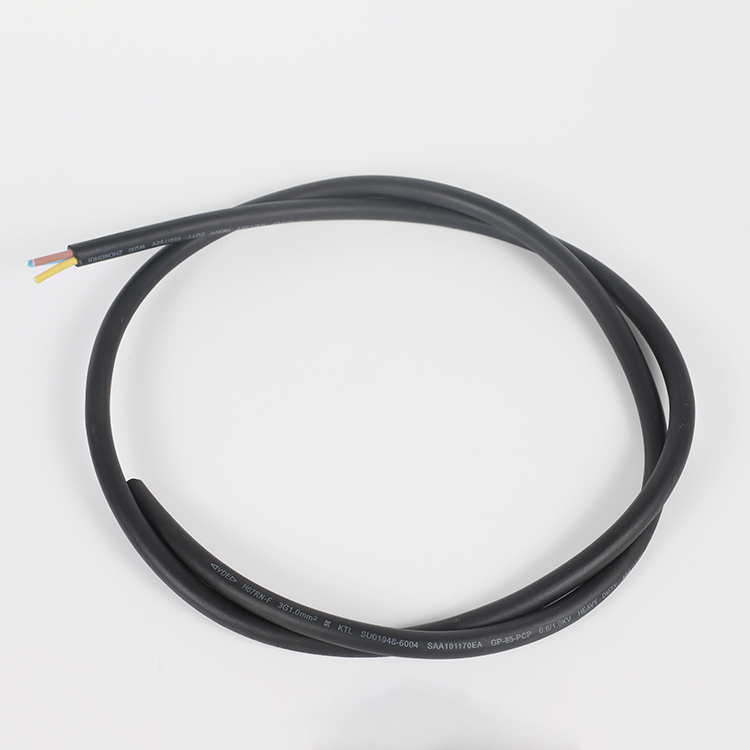

H07RN-F Heavy Duty Cross-linked Flexible Flexible Cable
The H07RN-F Heavy Duty Cross-linked Flexible Cable is a high-quality cable designed for heavy-duty applications that require flexibility and durability. It is made with cross-linked elastomer insulation and a robust outer sheath, providing excellent resistance to oil, chemicals, and mechanical stress. This cable is suitable for use in harsh environments such as construction sites, industrial plants, and outdoor events. The H07RN-F cable offers reliable and safe power transmission, making it an ideal choice for demanding applications.
-
H07RN-F
-
zhongxin
-
854442
| Quantity: | |
|---|---|
Product Description
Product Description
The H07RN-F Heavy Duty Cross-Linked Flexible Cable is a premium-grade power cable designed for the most demanding industrial and outdoor applications where durability and flexibility are non-negotiable. This cable features a multi-stranded tinned copper conductor (class 5 flexibility) insulated with cross-linked ethylene propylene diene monomer (EPDM), surrounded by a tough chloroprene (neoprene) outer sheath. Certified to EN 60245-3, it is rated for 450/750V and operates from -50°C to +125°C, with short-term overload resistance up to +150°C.
The cross-linked EPDM insulation provides exceptional resistance to ozone, UV radiation, and weathering, while the neoprene sheath resists oils, fuels, and mechanical abrasion. The conductor stranding ensures maximum flexibility, making it suitable for continuous flex applications like drag chains or mobile machinery. Available in single-core and multi-core configurations (up to 5 cores), it meets IP64 protection against dust and water splashes.
Features
Extreme Environment Resistance: Withstands ozone, UV, and chemical exposure, making it ideal for outdoor and marine applications.
Class 5 Flexibility: Stranded conductors allow infinite flex cycles without fatigue, suitable for robotic arms and conveyor systems with constant movement.
High Thermal Stability: EPDM insulation maintains integrity in extreme temperatures, preventing brittleness in arctic conditions or softening near engines.
Oil and Fuel Resistance: Neoprene sheath exceeds EN 60811-2-1 standards for resistance to mineral oils, ensuring longevity in automotive and industrial settings.
Safety Compliance: Flame retardant to IEC 60332-1-2 and halogen-free (on request), reducing toxic fume emission in fire scenarios.
Application
Construction Machinery: Powers mobile cranes, excavators, and concrete mixers, enduring constant vibration, mud, and oil exposure.
Marine Vessels: Used for deck equipment (winches, capstans) and engine room wiring, resisting saltwater corrosion and harsh weather.
Mining Equipment: Installed in underground drills, loaders, and conveyors, withstanding dust, moisture, and mechanical stress.
Industrial Robotics: Integrates into robotic arms and automated guided vehicles (AGVs) requiring flexible, long-life power cables.
Renewable Energy: Connects wind turbine nacelles and solar tracker systems, enduring UV radiation and temperature extremes in remote locations.
FAQ
Q: What is the difference between H07RN-F and H07RN8-F?
A: H07RN-F has a neoprene sheath for oil resistance and IP64 rating, while H07RN8-F adds a waterproof thermoplastic elastomer (TPE) inner layer for IP67 submersion resistance.
Q: Can this cable be used in explosive atmospheres?
A: It is suitable for non-hazardous areas. For Class I, Division 1 environments, specify the ATEX-certified variant (H07RN-F-ATEX) with additional armor.
Q: What is the maximum voltage rating?
A: 450V between conductors, 750V between conductor and ground, compliant with most industrial power systems.
C×mm2 | Insulation | Jacket | Max Resistance | ||||
Nom.Thick. (mm) | Nom.Dia. (mm) | Nom.Thick. (mm) | Nom.Dia. (mm) | (Ω/km, 20℃) | |||
1 | 0.8 | 3 | 1.3 | 8.7 | 19.5 | ||
2× | 1.5 | 0.8 | 3.3 | 1.5 | 9.7 | 13.3 | |
2.5 | 0.9 | 3.9 | 1.7 | 11.4 | 7.98 | ||
4 | 1 | 4.7 | 1.8 | 13.2 | 4.95 | ||
1 | 0.8 | 3 | 1.4 | 9.35 | 19.5 | ||
3× | 1.5 | 0.8 | 3.3 | 1.6 | 10.45 | 13.3 | |
2.5 | 0.9 | 3.9 | 1.8 | 12.15 | 7.98 | ||
4 | 1 | 4.7 | 1.9 | 14.1 | 4.95 | ||
1 | 0.8 | 3 | 1.5 | 10.4 | 19.5 | ||
4× | 1.5 | 0.8 | 3.3 | 1.7 | 11.5 | 13.3 | |
2.5 | 0.9 | 3.9 | 1.9 | 13.4 | 7.98 | ||
4 | 1 | 4.7 | 2 | 15.55 | 4.95 | ||
1 | 0.8 | 3 | 1.6 | 11.5 | 19.5 | ||
5× | 1.5 | 0.8 | 3.3 | 1.8 | 12.66 | 13.3 | |
2.5 | 0.9 | 3.9 | 2 | 14.7 | 7.98 | ||
4 | 1 | 4.7 | 2.2 | 17.2 | 4.95 | ||
