Flexible UL Style 1028 Electronic Wire

The UL Style 1028 Electronic Wire is a high-quality wire designed for internal wiring in electrical and electronic devices. It features a rated temperature of 105°C and a rated voltage of 600V AC. The wire uses PVC insulation, providing excellent resistance to moisture, oil, solvents, and fungus. It is available in various AWG sizes from 22 to 6, with options for solid or stranded, tinned or bare copper conductors. The uniform insulation thickness ensures easy stripping and cutting, facilitating installation. Additionally, it is environmentally friendly, meeting RoHS standards. This wire is widely used in applications such as motor leads, internal wiring of appliances, computers, test equipment, and other office and control equipment.
  • UL Style 1028

  • Zhongxin

  • 85444221

Availability:
Quantity:
Product Description



Parameter

Details

Reference Standard

UL758, UL1581

Conductor

Tinned or Bare, Stranded or Solid Copper (22AWG to 8AWG)

Insulation Material

Lead-Free PVC, Oil Resistant (Optional), PASS ROHS

Voltage Rating

600V

Operating Temperature

105℃

Bending Radius

4 x Outer Diameter


Overview


The Flexible UL Style 1028 Electronic Wire is a specialized electrical wire designed to provide exceptional flexibility and performance in a wide range of electronic applications. Certified to meet UL (Underwriters Laboratories) standards, this wire ensures safety and reliability in electrical connections. Its flexible construction allows for easy routing and installation in tight spaces, making it an ideal choice for applications where space is limited or where the wire needs to be frequently moved or flexed.


Features


High Flexibility: The UL Style 1028 Electronic Wire is constructed with fine-stranded copper conductors, which provide excellent flexibility. This allows the wire to be bent, twisted, and routed with ease, making it suitable for applications such as internal wiring of electronic devices, robotics, and flexible circuit boards. The wire's flexibility also reduces the risk of breakage and damage during installation and use.

Superior Electrical Performance: With its high-purity copper conductors, the wire offers low electrical resistance, ensuring efficient signal and power transmission. The insulation material is designed to have excellent dielectric properties, minimizing signal interference and electrical leakage. This results in reliable and stable electrical performance, even in high-frequency applications.

Temperature and Chemical Resistance: The insulation of the UL Style 1028 wire is made of a thermoplastic material that provides resistance to a wide range of temperatures. It can operate within a temperature range of -40°C to 80°C, making it suitable for use in various environments. Additionally, the insulation is resistant to common chemicals, oils, and solvents, protecting the wire from damage and ensuring its longevity.

UL Certification: The wire's compliance with UL standards ensures that it meets strict safety and quality requirements. UL certification verifies that the wire has been tested and approved for use in electrical applications, providing users with confidence in its performance and safety.


Application

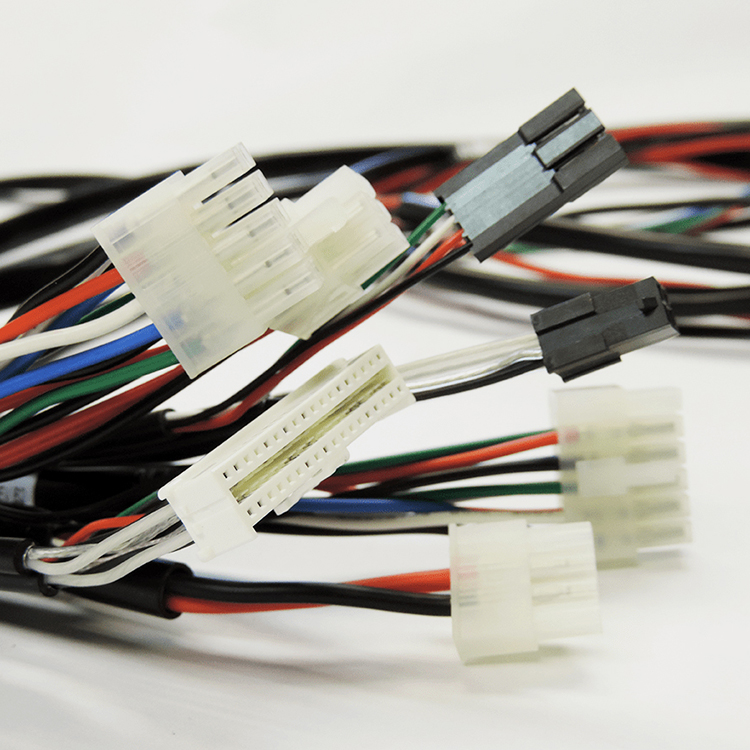

Consumer Electronics: In consumer electronics such as smartphones, laptops, and tablets, the Flexible UL Style 1028 Electronic Wire is used for internal wiring, connecting various components such as batteries, displays, and circuit boards. Its flexibility allows for compact and efficient device designs.

Automotive Electronics: For automotive applications, the wire is used in the wiring harnesses of vehicles to connect electronic components such as sensors, controllers, and infotainment systems. Its ability to withstand vibration, heat, and moisture makes it suitable for the demanding automotive environment.

Robotics and Automation: In robotic and automated systems, the UL Style 1028 wire is used to transmit power and signals between different parts of the robot. Its flexibility enables the robot to move freely without damaging the wire, ensuring smooth operation and reliability.


FAQ


Q: What is the maximum current-carrying capacity of the Flexible UL Style 1028 Electronic Wire?

A: The current-carrying capacity of the wire depends on its gauge size. Different gauges have different ampacity ratings. It is recommended to refer to the product datasheet for the specific current-carrying capacity of the wire you are using.

Q: Can the wire be used for outdoor applications?

A: While the UL Style 1028 wire has some resistance to environmental factors, it is primarily designed for indoor use. For outdoor applications, it is advisable to use a wire specifically rated for outdoor environments to ensure optimal performance and durability.

Q: Is the wire suitable for high-speed data transmission?

A: The wire's low electrical resistance and good dielectric properties make it suitable for some high-speed data transmission applications. However, for applications requiring extremely high data transfer rates, such as high-definition video or high-speed networking, specialized cables may be more appropriate.
