AVSS Ultra-thin wall automotive low voltage line
The AVSS Ultra-thin Wall Automotive Low Voltage Line is a high-performance cable designed for automotive electrical systems. It features an ultra-thin wall design that reduces weight and saves space, making it ideal for tight automotive environments. The cable uses stranded bare or tinned copper conductors for excellent conductivity and flexibility. With PVC insulation that meets ROHS standards, it offers environmental safety and resistance to moisture and chemicals. Rated for temperatures from -40℃ to +105℃, it ensures reliable performance in extreme conditions. The AVSS line is suitable for various automotive applications, including engine compartments and dashboard panels, providing stable power transmission and durable connectivity.
-
AVSS
-
Zhongxin
-
85444221
| Quantity: | |
|---|---|
Product Description
wuxi zhonghui's AVSS Ultra-thin Wall Automotive Low Voltage Line is a high-performance cable designed for automotive electrical systems. It features an ultra-thin wall design that reduces weight and saves space, making it ideal for tight automotive environments. The cable uses stranded bare or tinned copper conductors for excellent conductivity and flexibility. With PVC insulation that meets ROHS standards, it offers environmental safety and resistance to moisture and chemicals. Rated for temperatures from -40℃ to +105℃, it ensures reliable performance in extreme conditions. The AVSS line is suitable for various automotive applications, including engine compartments and dashboard panels, providing stable power transmission and durable connectivity.
Product Specifications
| Parameter | Value |
|---|---|
| Conductor | Tinned or bare copper, stranded, 0.3~2mm² |
| Insulation | PVC, Pass ROHS |
| Temperature Rating | -40℃~+105℃ |
| Reference Standard | JASO D 611 |
| Color | Optional |
Performance Parameter
导体 Conductor | 绝缘 Insulation | 容许电流 Current limit （A）*2 | 导体电阻 Conductor resistance (Ω/km, 20℃) | ||||
面积 mm2 | 构造 Construction (No./mm) | 外径 Nom.Dia. (mm) | 厚度 Nom.Thick. (mm) | 外径 O.D. (mm) | |||
标称 Standard | 最大 Max. | ||||||
0.3f | 19/0.16 | 0.8 | 0.3 | 1.4 | 1.5 | 6 | 48.9 |
0.3 | 7/0.26 | 0.8 | 0.3 | 1.4 | 1.5 | 6 | 50.2 |
0.5f | 19/0.19 | 1.0 | 0.3 | 1.6 | 1.7 | 8 | 36.7 |
0.5 | 7/0.32 | 1.0 | 0.3 | 1.6 | 1.7 | 9 | 32.7 |
0.75f | 19/0.23 | 1.2 | 0.3 | 1.8 | 1.9 | 10 | 24.4 |
0.85 | 19/0.24 | 1.2 | 0.3 | 1.8 | 1.9 | 11 | 22.0 |
1.25f | 37/0.21 | 1.5 | 0.3 | 2.1 | 2.2 | 14 | 14.7 |
1.25 | 19/0.29 | 1.5 | 0.3 | 2.1 | 2.2 | 14 | 14.3 |
2f | 37/0.26 | 1.8 | 0.4 | 2.6 | 2.7 | 19 | 9.50 |
A : Low-voltage wires for automobiles V : Vinyl SS : Super Thin type
The current limit data is for conductor temperature of 80℃(maximum allowable temperature) and an ambient temperature of 40℃
AVSS Ultra - thin Wall Automotive Low - Voltage Line: A Comprehensive Guide
Product Description
Product Design:
The AVSS Ultra-thin Wall Automotive Low Voltage Line is engineered with stranded bare or tinned copper conductors for superior conductivity and flexibility. Its ultra-thin wall design minimizes weight and space requirements, making it perfect for automotive wiring where space is limited. The PVC insulation ensures durability and resistance to environmental stressors like moisture and chemicals. The cable meets standards such as DIN 72551 and ISO 6722, guaranteeing safety and reliability. The design ensures ease of installation and optimal performance in automotive electrical systems.
Product Features
- Uniform Insulation Thickness: The precisely controlled insulation thickness not only enables hassle - free stripping and cutting but also guarantees uniform electrical performance throughout the wire.
- Flame - Retardant: The wire's ability to resist flames makes it a reliable choice for applications where fire safety is a top priority.
- Versatile Applications: This wire is widely used in the low - voltage circuits of automobiles, ensuring stable operation and safety in various temperature conditions.
Product Advantages
- Ultra - thin Wall Design: The ultra - thin wall design of the wire reduces the overall size and weight, making it ideal for space - limited applications.
- Excellent Electrical Performance: The uniform insulation thickness ensures easy stripping and cutting, facilitating efficient installation and maintenance while maintaining consistent electrical performance.
- Flame - Retardant: The wire has good delay combustibility and has passed the JASO D611 flame test, enhancing safety in case of fire.
Product Applications

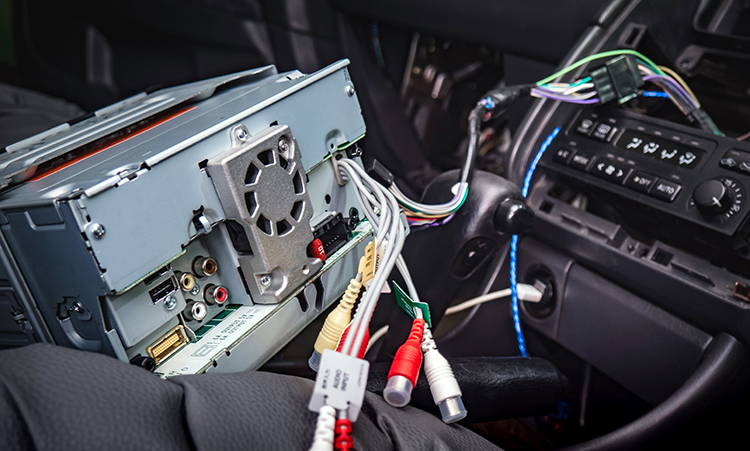

- Automotive Electrical Systems: Ideal for electrical circuits in automobiles, such as lighting, audio, and control systems, this wire provides reliable performance in high - temperature areas.
- Commercial Vehicle Electrical Systems: Suitable for electrical circuits in commercial vehicles, ensuring stable operation in various temperature conditions.
FAQ (Frequently Asked Questions)
1. Q: What is the AVSS Ultra-thin Wall Automotive Low Voltage Line used for?
A:
The AVSS Ultra-thin Wall Automotive Low Voltage Line is designed for internal wiring in automotive electrical systems. It is suitable for applications such as engine compartments, dashboard panels, and other areas where space is limited and reliable electrical connections are crucial.
A:
The AVSS Ultra-thin Wall Automotive Low Voltage Line is designed for internal wiring in automotive electrical systems. It is suitable for applications such as engine compartments, dashboard panels, and other areas where space is limited and reliable electrical connections are crucial.
2. Q: What are the key features of the AVSS Ultra-thin Wall Automotive Low Voltage Line?
A:The AVSS Ultra-thin Wall Automotive Low Voltage Line features a stranded bare or tinned copper conductor for excellent conductivity and flexibility. It uses PVC insulation, which is ROHS compliant, ensuring environmental safety. The cable is rated for temperatures ranging from -40℃ to +105℃ and meets standards such as JASO D 611.
3. Q: What applications is the AVSS Ultra-thin Wall Automotive Low Voltage Line suitable for?
A:The AVSS Ultra-thin Wall Automotive Low Voltage Line is suitable for a wide range of automotive applications, including internal wiring in vehicles. It is ideal for connecting various electronic components and systems within automobiles.
4. Q: How should I install and use the AVSS Ultra-thin Wall Automotive Low Voltage Line?
A:Ensure the cable is installed in accordance with local electrical codes and standards. Avoid excessive bending or stretching. Use appropriate connectors and terminations to ensure a secure connection. Regularly inspect the cable for any signs of damage or wear.
5. Q: How should I maintain the AVSS Ultra-thin Wall Automotive Low Voltage Line?
A:Regularly inspect the cable for physical damage or wear. Keep the cable clean and free from dirt and debris. Ensure connections are secure and free from corrosion. Replace the cable immediately if any damage is detected.
6. Q: Is the AVSS Ultra-thin Wall Automotive Low Voltage Line environmentally friendly?
A:Yes, the AVSS Ultra-thin Wall Automotive Low Voltage Line is environmentally friendly. It meets ROHS standards and uses materials that are safe for the environment.
