AEX High temperature resistant automotive low voltage line
The AEX High Temperature Resistant Automotive Low Voltage Line is designed for reliable performance in high-temperature environments within automotive systems. It features excellent thermal stability and mechanical strength, making it suitable for demanding applications. This wire uses stranded tinned or bare copper conductors for superior conductivity and flexibility. The insulation is made of high-quality materials that provide excellent resistance to heat, oil, and chemicals, ensuring long-lasting performance. Rated for temperatures up to 125℃, it meets standards such as ISO 6722 Class C, ensuring safety and reliability in automotive electrical systems.
-
AEX
-
Zhongxin
-
85444221
| Quantity: | |
|---|---|
Product Description
wuxi zhonghui's AEX High Temperature Resistant Automotive Low Voltage Line is designed for reliable performance in high-temperature environments within automotive systems. It features excellent thermal stability and mechanical strength, making it suitable for demanding applications. This wire uses stranded tinned or bare copper conductors for superior conductivity and flexibility. The insulation is made of high-quality materials that provide excellent resistance to heat, oil, and chemicals, ensuring long-lasting performance. Rated for temperatures up to 125℃, it meets standards such as ISO 6722 Class C, ensuring safety and reliability in automotive electrical systems.
Product Specifications
| Parameter | Value |
|---|---|
| Conductor | Tinned or bare copper, stranded, 0.5~100mm² |
| Insulation | XLPVC, Pass ROHS |
| Temperature Rating | -40℃~+100℃ |
| Reference Standard | JASO D 611 |
| Color | Optional |
Performance Parameter
导体 Conductor | 绝缘 Insulation | 容许电流 Current limit （A）*2 | 导体电阻 Conductor resistance (Ω/km, 20℃) | ||||
面积 mm2 | 构造 Construction (No./mm) | 外径 Nom.Dia. (mm) | 厚度 Nom.Thick. (mm) | 外径 O.D. (mm) | |||
标称 Standard | 最大 Max. | ||||||
0.5f | 20/0.18 | 1.0 | 0.5 | 2.0 | 2.2 | 9 | 36.7 |
0.5 | 7/0.32 | 1.0 | 0.5 | 2.0 | 2.2 | 9 | 32.7 |
0.75f | 30/0.18 | 1.2 | 0.5 | 2.2 | 2.4 | 11 | 24.4 |
0.85 | 11/0.32 | 1.25 | 0.5 | 2.3 | 2.4 | 12 | 22.0 |
1.25f | 50/0.18 | 1.5 | 0.6 | 2.7 | 2.9 | 16 | 14.7 |
1.25 | 16/0.32 | 1.5 | 0.6 | 2.7 | 2.9 | 16 | 14.3 |
2f | 37/0.26 | 1.8 | 0.6 | 3.0 | 3.3 | 21 | 9.50 |
2 | 26/0.32 | 1.9 | 0.6 | 3.1 | 3.4 | 22 | 8.81 |
3 | 41/0.32 | 2.4 | 0.7 | 3.8 | 4.1 | 29 | 5.90 |
5f | 98/0.26 | 3.0 | 0.8 | 4.6 | 4.9 | 40 | 3.59 |
5 | 65/0.32 | 3.0 | 0.8 | 4.6 | 4.9 | 40 | 3.52 |
8f | 7/22/0.26 | 4.0 | 0.8 | 5.6 | 5.9 | 54 | 2.33 |
8 | 50/0.45 | 3.7 | 0.8 | 5.3 | 5.5 | 53 | 2.32 |
10f | 7/27/0.26 | 4.5 | 1.0 | 6.5 | 6.9 | 63 | 1.90 |
15f | 7/36/0.26 | 5.3 | 1.2 | 7.7 | 8.2 | 76 | 1.45 |
20f | 19/13/0.32 | 6.5 | 1.1 | 8.7 | 9.3 | 101 | 0.946 |
A : Low-voltage wires for automobiles E: Polyethylene X : Crosslinked
The current limit data is for conductor temperature of 80℃ (maximum allowable
temperature) and an ambient temperature of 40℃

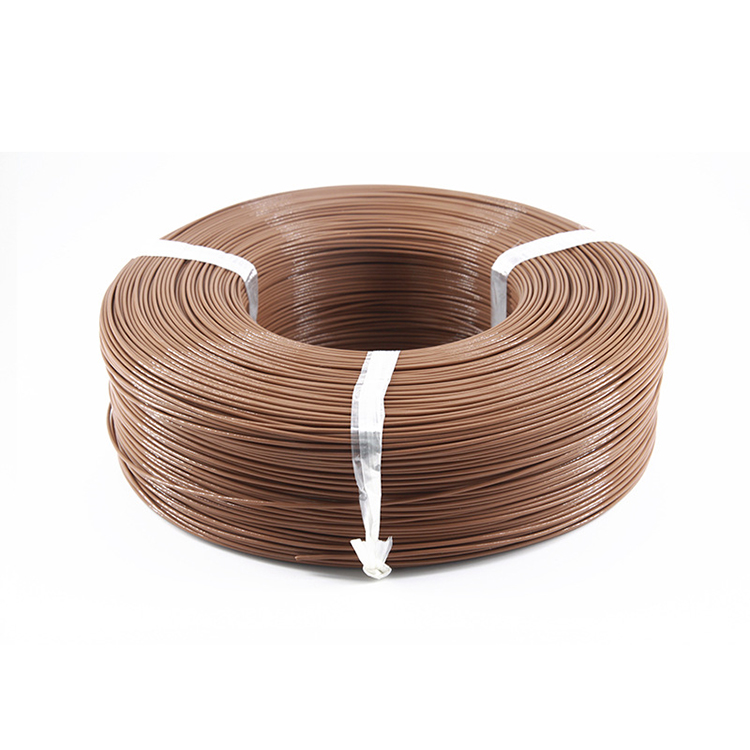

AEX High - Temperature - Resistant Automotive Low - Voltage Line
Product Design:
The AEX wire is constructed with stranded tinned or bare copper conductors to ensure excellent conductivity and flexibility. The insulation material is specifically chosen for its high-temperature resistance and ability to withstand harsh automotive conditions. The design ensures uniform insulation thickness, which simplifies installation and enhances performance. It is available in various wire configurations to meet different electrical requirements and is ROHS compliant, ensuring environmental safety.
Product Features
- Uniform Insulation Thickness: The precisely controlled insulation thickness not only enables hassle - free stripping and cutting but also guarantees uniform electrical performance throughout the wire.
- Flame - Retardant: The wire's ability to resist flames makes it a reliable choice for applications where fire safety is a top priority.
- Versatile Applications: This wire is widely used in the low - voltage circuits of automobiles, especially in circuits requiring heat resistance, ensuring stable operation and safety in various temperature conditions.
Product Advantages
- High - Temperature Resistance: The wire can operate reliably in high - temperature environments, making it suitable for use in various applications.
- Excellent Electrical Performance: The uniform insulation thickness ensures easy stripping and cutting, facilitating efficient installation and maintenance while maintaining consistent electrical performance.
- Flame - Retardant: The wire has good delay combustibility and has passed the JASO D611 flame test, enhancing safety in case of fire.
Product Applications:

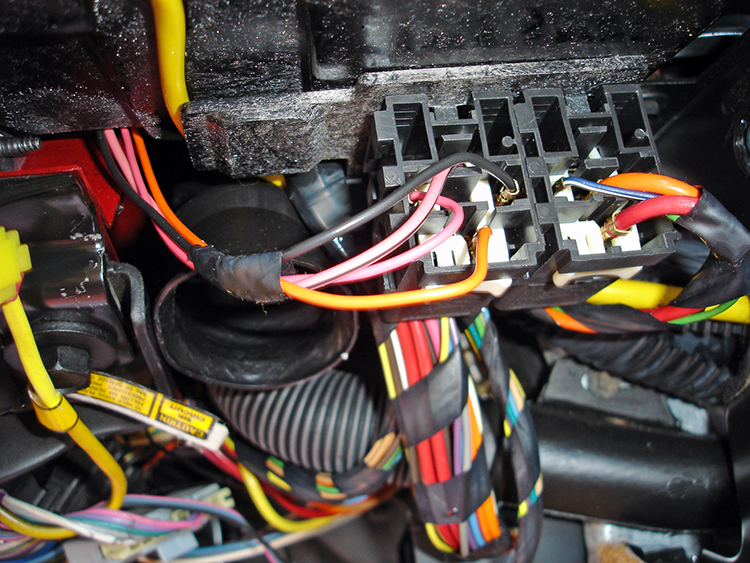

This high-temperature resistant wire is widely used in automotive applications where reliable electrical connections are crucial. It is ideal for use in engine compartments, near exhaust systems, and other areas of the vehicle exposed to high temperatures. The AEX wire is suitable for connecting various electronic components, sensors, and control systems within the vehicle, providing stable and efficient power transmission. Its durability and resistance to environmental factors make it a preferred choice for automotive manufacturers and repair professionals.
FAQ (Frequently Asked Questions)
1. Q: What is the AEX High Temperature Resistant Automotive Low Voltage Line used for?
A:
The AEX High Temperature Resistant Automotive Low Voltage Line is designed for internal wiring in automotive electrical systems. It is suitable for applications in engine compartments, near exhaust systems, and other areas where high-temperature resistance is crucial.
A:
The AEX High Temperature Resistant Automotive Low Voltage Line is designed for internal wiring in automotive electrical systems. It is suitable for applications in engine compartments, near exhaust systems, and other areas where high-temperature resistance is crucial.
2. Q: What are the key features of the AEX High Temperature Resistant Automotive Low Voltage Line?
A:The AEX High Temperature Resistant Automotive Low Voltage Line features a temperature rating of -40℃ to +100℃. It uses stranded tinned or bare copper conductors and XLPVC insulation, which is ROHS compliant. It meets standards such as ISO 6722 Class C.
3. Q: What applications is the AEX High Temperature Resistant Automotive Low Voltage Line suitable for?
A:The AEX High Temperature Resistant Automotive Low Voltage Line is suitable for a wide range of automotive applications, including internal wiring in vehicles. It is ideal for connecting various electronic components and systems within automobiles.
4. Q: How should I install and use the AEX High Temperature Resistant Automotive Low Voltage Line?
A:Ensure the cable is installed in accordance with local electrical codes and standards. Avoid excessive bending or stretching. Use appropriate connectors and terminations to ensure a secure connection. Regularly inspect the cable for any signs of damage or wear.
5. Q: How should I maintain the AEX High Temperature Resistant Automotive Low Voltage Line?
A:Regularly inspect the cable for physical damage or wear. Keep the cable clean and free from dirt and debris. Ensure connections are secure and free from corrosion. Replace the cable immediately if any damage is detected.
6. Q: Is the AEX High Temperature Resistant Automotive Low Voltage Line environmentally friendly?
A:Yes, the AEX High Temperature Resistant Automotive Low Voltage Line is environmentally friendly. It meets ROHS standards and uses materials that are safe for the environment.
