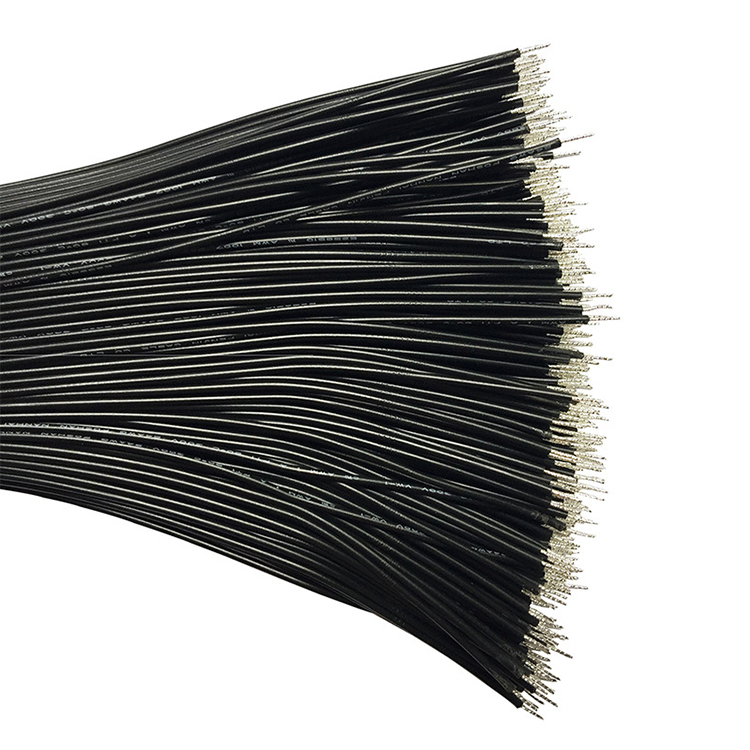

UL Style 11627 Electronic Wire
The UL Style 11627 Electronic Wire is a high-quality wire designed for internal wiring in electronic and electrical devices. It features a rated temperature of 105°C and a rated voltage of 2000V AC, making it suitable for demanding applications. The wire uses PVC insulation, which is flame-retardant and passes the UL VW-1 and CSA FT1 vertical flame tests. It is available in various AWG sizes from 30 to 3/0, with options for solid or stranded, tinned or bare copper conductors. The uniform insulation thickness ensures easy stripping and cutting, facilitating installation. Additionally, it is environmentally friendly, meeting RoHS standards. This wire is widely used in applications such as motor leads, internal wiring of appliances, computers, test equipment, and other office and control equipment.
-
UL Style 11627
-
zhongxin
-
854442
| Quantity: | |
|---|---|
Product Description
wuxi zhonghui's UL Style 11627 Electronic Wire is a high-quality wire designed for internal wiring in electronic and electrical devices. It features a rated temperature of 105°C and a rated voltage of 2000V AC, making it suitable for demanding applications. The wire uses PVC insulation, which is flame-retardant and passes the UL VW-1 and CSA FT1 vertical flame tests. It is available in various AWG sizes from 30 to 3/0, with options for solid or stranded, tinned or bare copper conductors. The uniform insulation thickness ensures easy stripping and cutting, facilitating installation. Additionally, it is environmentally friendly, meeting RoHS standards. This wire is widely used in applications such as motor leads, internal wiring of appliances, computers, test equipment, and other office and control equipment.
Specifications
Parameter | Details |
Reference Standard | UL758, UL1581 |
Conductor | Tinned or Bare, Stranded or Solid Copper (18AWG to 4/0AWG) |
Insulation Material | Lead - Free PVC, PASS ROHS |
Voltage Rating | 2000V |
Operating Temperature | 105℃ |
Bending Radius | 4 x Outer Diameter |
Performance Parameter
Conductor | Insulation | MAX.COND Resistance (Ω/km, 20℃, DC) | |||
AWG | (No./mm) | Nom.Dia. (mm) | Nom.Thick. (mm) | Nom.Dia. (mm) | |
24 | 11/0.16 | 0.61 | 0.76 | 2.20 | 93.25 |
22 | 17/0.16 | 0.76 | 0.76 | 2.35 | 55.00 |
20 | 26/0.16 | 0.94 | 0.76 | 2.55 | 34.60 |
18 | 41/0.16 | 1.18 | 0.76 | 3.78 | 21.80 |
16 | 26/0.254 | 1.49 | 0.76 | 3.10 | 14.64 |
14 | 41/0.254 | 1.88 | 0.76 | 3.50 | 9.25 |
12 | 65/0.254 | 2.36 | 0.76 | 4.00 | 5.82 |
10 | 105/0.254 | 3.00 | 0.76 | 4.60 | 3.66 |
9 | 131/0.254 | 3.70 | 0.76 | 5.30 | 2.96 |
8 | 168/0.254 | 4.20 | 1.14 | 6.50 | 2.35 |
7 | 210/0.254 | 4.70 | 1.14 | 7.00 | 1.87 |
6 | 266/0.254 | 5.30 | 1.52 | 8.40 | 1.48 |
5 | 329/0.254 | 5.80 | 1.52 | 9.00 | 1.17 |
4 | 420/0.254 | 6.60 | 1.52 | 9.70 | 0.928 |
Conductor | Insulation | MAX.COND Resistance (Ω/km, 20℃, DC) | |||
AWG | (No./mm) | Nom.Dia. (mm) | Nom.Thick. (mm) | Nom.Dia. (mm) | |
3 | 532/0.254 | 7.50 | 1.52 | 10.5 | 0.744 |
2 | 665/0.254 | 8.40 | 1.52 | 11.5 | 0.590 |
1 | 836/0.254 | 9.40 | 2.03 | 13.5 | 0.467 |
1/0 | 1045/0.254 | 10.50 | 2.03 | 14.6 | 0.370 |
2/0 | 1330/0.254 | 11.90 | 2.03 | 16.0 | 0.297 |
3/0 | 1672/0.254 | 13.00 | 2.03 | 17.5 | 0.236 |
4/0 | 2109/0.254 | 14.70 | 2.03 | 19.1 | 0.187 |
250kcmil | 2516/0.254 | 16.00 | 2.41 | 21.4 | 0.158 |
300kcmil | 2997/0.254 | 17.50 | 2.41 | 23.0 | 0.132 |
350kcmil | 3478/0.254 | 18.90 | 2.41 | 24.2 | 0.114 |
400kcmil | 3996/0.254 | 20.20 | 2.41 | 25.6 | 0.0997 |
450kcmil | 4514/0.254 | 21.50 | 2.41 | 27.0 | 0.0886 |
500kcmil | 4995/0.254 | 22.60 | 2.41 | 28.0 | 0.0798 |
Product Description:
The UL Style 11627 Electronic Wire is designed for reliable performance in high-temperature environments. It features excellent thermal stability and mechanical strength, making it suitable for demanding applications. This wire uses stranded tinned or bare copper conductors for superior conductivity and flexibility. The XLPO insulation ensures high heat resistance and durability, while the uniform insulation thickness facilitates easy installation. It meets standards such as IEC 60227-5:2003 and GB/T 5023.5-2008, ensuring safety and reliability.
The UL Style 11627 Electronic Wire is designed for reliable performance in high-temperature environments. It features excellent thermal stability and mechanical strength, making it suitable for demanding applications. This wire uses stranded tinned or bare copper conductors for superior conductivity and flexibility. The XLPO insulation ensures high heat resistance and durability, while the uniform insulation thickness facilitates easy installation. It meets standards such as IEC 60227-5:2003 and GB/T 5023.5-2008, ensuring safety and reliability.
Product Design:

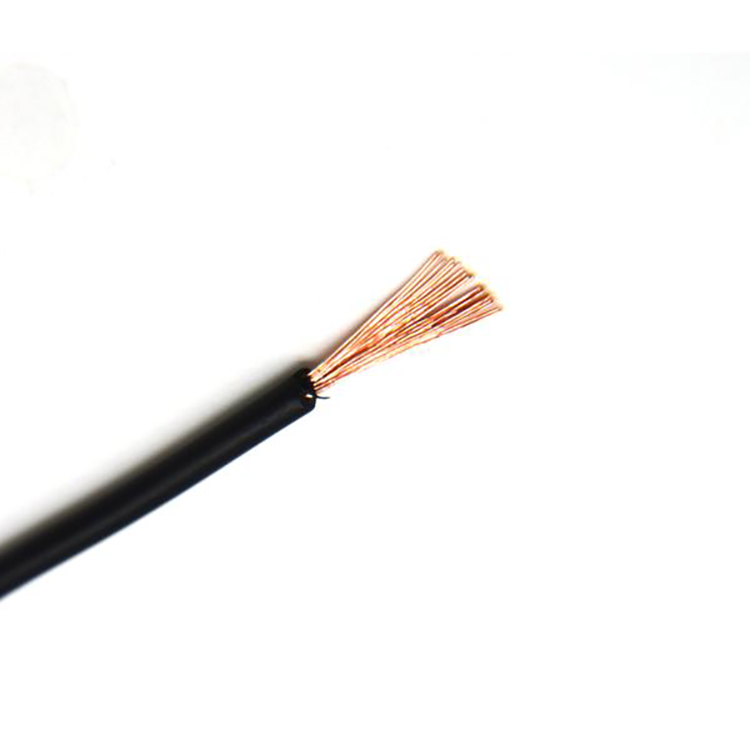

The UL Style 11627 Electronic Wire is constructed with stranded tinned or bare copper conductors for excellent conductivity and flexibility. The XLPO insulation provides superior thermal stability and resistance to environmental factors. The design ensures uniform insulation thickness for easy stripping and cutting, enhancing installation efficiency. It is available in multiple wire configurations to meet various power requirements.Technical Features
- Uniform Insulation Thickness: Ensures easy stripping and cutting during installation.
- Conductor: Tinned or bare, stranded or solid copper conductors (18AWG to 4/0AWG), providing excellent flexibility and conductivity.
- Insulation Material: Lead - free PVC insulation, which is durable and environmentally friendly.
- Voltage Rating: 2000V, making it suitable for high - voltage applications.
- Temperature Rating: 105℃, making it suitable for high - temperature environments.
Product Advantages
- High - Quality Conductors: The wire uses tinned or bare copper conductors, providing excellent electrical conductivity and mechanical strength.
- Durable Insulation: The lead - free PVC insulation is durable and environmentally friendly, ensuring long - term performance.
- Flame Retardancy: The wire has passed the UL VW - 1 and CSA FT1 vertical flame tests, ensuring enhanced fire safety.
- Versatile Applications: Suitable for a wide range of electronic and electrical equipment, including consumer electronics, industrial machinery, and communication systems.
Product Applications:

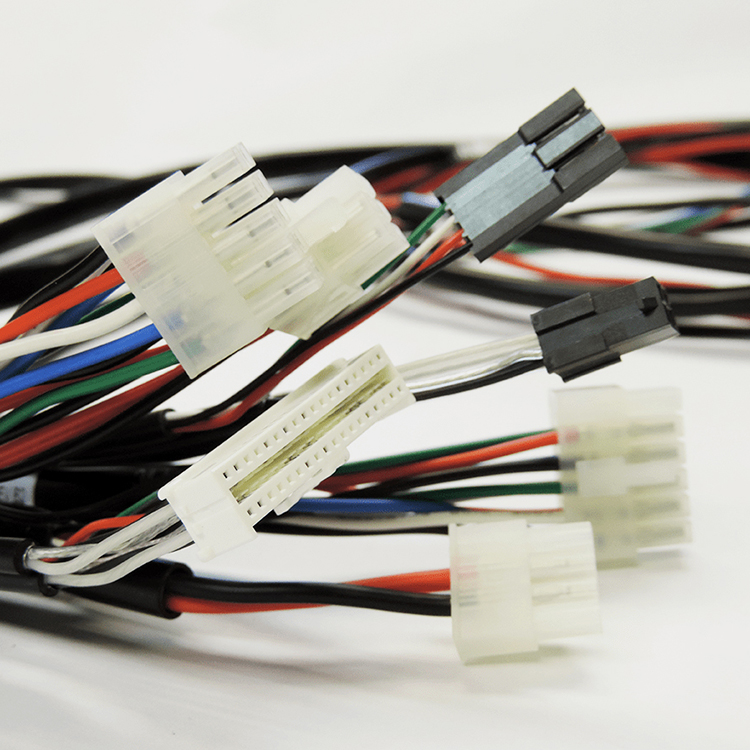

This electronic wire is widely used in household appliances, electronic devices, and industrial equipment. It is ideal for internal wiring in applications such as computers, printers, and other office equipment. The UL Style 11627 wire provides stable and efficient power transmission, ensuring the smooth operation of connected devices.
This electronic wire is widely used in household appliances, electronic devices, and industrial equipment. It is ideal for internal wiring in applications such as computers, printers, and other office equipment. The UL Style 11627 wire provides stable and efficient power transmission, ensuring the smooth operation of connected devices.
FAQ (Frequently Asked Questions)
1. Q: What is the UL Style 11627 Electronic Wire used for?
A:
The UL Style 11627 Electronic Wire is designed for internal wiring in electronic and electrical devices. It is suitable for applications such as motor leads, internal wiring of appliances, computers, test equipment, and other office and control equipment.
A:
The UL Style 11627 Electronic Wire is designed for internal wiring in electronic and electrical devices. It is suitable for applications such as motor leads, internal wiring of appliances, computers, test equipment, and other office and control equipment.
2. Q: What are the key features of the UL Style 11627 Electronic Wire?
A:The UL Style 11627 Electronic Wire features a rated temperature of 105°C and a rated voltage of 2000V AC. It uses PVC insulation, which is flame-retardant and passes the UL VW-1 and CSA FT1 vertical flame tests. It is available in various AWG sizes from 30 to 3/0, with options for solid or stranded, tinned or bare copper conductors.
3. Q: What applications is the UL Style 11627 Electronic Wire suitable for?
A:The UL Style 11627 Electronic Wire is suitable for a wide range of applications, including motor leads, internal wiring of appliances, computers, test equipment, and other office and control equipment. It provides reliable power and signal transmission for these devices.
4. Q: How should I install and use the UL Style 11627 Electronic Wire?
A:Ensure the wire is installed in accordance with local electrical codes and standards. Avoid excessive bending or stretching. Use appropriate connectors and terminations to ensure a secure connection. Regularly inspect the wire for any signs of damage or wear.
5. Q: How should I maintain the UL Style 11627 Electronic Wire?
A:Regularly inspect the wire for physical damage or wear. Keep the wire clean and free from dirt and debris. Ensure connections are secure and free from corrosion. Replace the wire immediately if any damage is detected.
6. Q: Is the UL Style 11627 Electronic Wire environmentally friendly?
A:Yes, the UL Style 11627 Electronic Wire is environmentally friendly. It meets RoHS standards and uses materials that are safe for the environment.
