JYJ125 JYJ150 1140V High Temperature Resistant Motor Lead Wire

The JYJ125 and JYJ150 are high-temperature resistant motor lead wires designed for demanding electrical applications. These cables feature excellent thermal stability and mechanical strength, making them suitable for use in environments with high temperatures. They are rated for temperatures up to 125°C and 150°C, respectively, and have a voltage rating of 1140V. The cables are constructed with stranded copper conductors and utilize cross-linked polyolefin (XLPO) insulation and jacketing, ensuring enhanced resistance to heat, chemicals, and mechanical stress. They comply with RoHS standards, ensuring environmental safety. These motor lead wires are ideal for use in B, F, and H class motors, providing reliable performance in applications such as industrial machinery, electrical equipment, and environments exposed to extreme temperatures
  • JYJ125 JYJ150 1140V

  • Zhongxin

  • 85444921

Availability:
Quantity:
Product Description

wuxi zhonghui's JYJ125 and JYJ150 are high-temperature resistant motor lead wires designed for demanding electrical applications. These cables feature excellent thermal stability and mechanical strength, making them suitable for use in environments with high temperatures. They are rated for temperatures up to 125°C and 150°C, respectively, and have a voltage rating of 1140V. The cables are constructed with stranded copper conductors and utilize cross-linked polyolefin (XLPO) insulation and jacketing, ensuring enhanced resistance to heat, chemicals, and mechanical stress. They comply with RoHS standards, ensuring environmental safety. These motor lead wires are ideal for use in B, F, and H class motors, providing reliable performance in applications such as industrial machinery, electrical equipment, and environments exposed to extreme temperatures




Performance Parameter



导体

Conductor

绝缘     Insulation


最大导体电阻   MAX Resistance  (Ω/km, 20℃, DC)

线规 mm2

构成

Construction

(No./mm)

外径

Nom.Dia.

(mm)

厚度

Nom.Thick.

(mm)

外径

Nom.Dia.

(mm)

0.5

16/0.20

0.92

0.70

2.45

40.1

0.75

24/0.20

1.13

0.70

2.60

26.7

1

32/0.20

1.31

0.70

2.80

20.0

1.5

30/0.25

1.58

0.80

3.25

13.7

2.5

49/0.25

2.02

0.80

3.80

8.21

4

56/0.30

2.60

0.80

4.30

5.09

6

84/0.30

3.42

0.90

5.40

3.39

10

84/0.40

4.56

1.00

6.50

1.95

16

126/0.40

5.60

1.15

8.30

1.24

25

196/0.40

6.95

1.15

9.50

0.795

35

276/0.40

8.74

1.15

11.20

0.565

50

396/0.40

10.46

1.40

13.60

0.393

70

360/0.50

12.50

1.40

15.60

0.277

95

475/0.50

13.73

1.40

17.00

0.210




Product Specifications Details
Product Name JYJ125, JYJ150 1140V High Temperature Resistant Motor Lead Wire
Rating Temp 125℃, 150℃
Rating Volt. 1140V
Reference Standard Enterprise standard
Conductor Stranded bare or tinned copper conductor
Insulation XLPO, ROHS compliant
Application For lead wiring of F, H insulation class motor



JYJ125 & JYJ150 1140V High - Temperature - Resistant Motor Lead Wire: A Comprehensive Guide

JYJ125 JYJ150 1140V High Temperature Resistant Motor Lead Wire is a top-quality wire designed for motor winding connections in F-class and H-class motors. This wire features twisted bare copper or tinned copper conductors and is insulated with irradiated cross-linked polyolefin, meeting ROHS compliance standards.


With a voltage rating of 1140V, this wire is specifically engineered to withstand high temperatures, making it ideal for use in demanding applications where heat resistance is essential. The twisted copper conductors provide excellent conductivity and flexibility, ensuring a reliable connection in motor winding applications.


The irradiated cross-linked polyolefin insulation not only offers superior thermal resistance but also provides excellent electrical insulation properties, safeguarding against potential electrical hazards. This wire is suitable for use in a wide range of industrial and commercial settings where high-temperature environments are present.


Whether used in F-class or H-class motors, the JYJ125 and JYJ150 High Temperature Resistant Motor Lead Wire delivers exceptional performance and durability. Its robust construction and high-temperature resistance make it a dependable choice for motor winding connections, ensuring reliable operation and longevity.


Choose the JYJ125 JYJ150 1140V High Temperature Resistant Motor Lead Wire for your motor winding applications, confident in its quality, reliability, and compliance with industry standards. Trust this wire to provide the high-temperature resistance and electrical insulation needed for optimal performance in demanding motor applications.



Product Design:

The JYJ125 and JYJ150 Motor Lead Wires are engineered with stranded bare or tinned copper conductors for superior conductivity and flexibility. The XLPO insulation provides excellent thermal stability and resistance to environmental stress. The design ensures uniform insulation thickness for easy installation and stripping.



Product Features
  • Temperature and Voltage Rating: Rated for 125℃ and 150℃, with a voltage rating of 1140V, ensuring reliable performance in high-temperature environments.


  • Conductor Type: Features stranded bare or tinned copper conductors for excellent conductivity and flexibility.


  • Insulation: Utilizes XLPO insulation, which is ROHS compliant, ensuring environmental safety.


  • Application: Specifically designed for lead wiring of F and H insulation class motors, providing reliable performance in industrial and high-temperature applications.



Product Advantages


  • Enhanced Safety: Compliance with enterprise standards ensures safe operation in high-temperature environments.

  • Durability: High-quality materials and construction ensure long-lasting performance, even in demanding conditions.


  • Environmental Friendliness: ROHS compliance ensures the product is safe for the environment.


  • Wide Application Range: Ideal for F and H insulation class motors, providing stable and reliable performance in critical applications.



Product Applications:

The JYJ125 and JYJ150 are specifically designed for use in F and H class insulation motors. They are widely used in industrial settings, such as in pumps, fans, and motors, where high-temperature resistance is crucial. These wires are also suitable for applications in marine environments and other areas where thermal stability and durability are required. Their ability to operate efficiently in harsh conditions makes them a reliable choice for various motor lead wire requirements.




FAQ (Frequently Asked Questions)


1. Q: What is the JYJ125/JYJ150 1140V High Temperature Resistant Motor Lead Wire used for?

A:
The JYJ125/JYJ150 1140V High Temperature Resistant Motor Lead Wire is designed for lead wiring of F and H insulation class motors. It is suitable for industrial applications where high-temperature resistance is crucial.


2. Q: What are the key features of the JYJ125/JYJ150 1140V High Temperature Resistant Motor Lead Wire?

A:
The JYJ125/JYJ150 Motor Lead Wire features a temperature rating of 125℃ and 150℃, with a voltage rating of 1140V. It uses stranded bare or tinned copper conductors and XLPO insulation, which is ROHS compliant. It meets enterprise standards for quality and safety.


3. Q: What applications is the JYJ125/JYJ150 1140V High Temperature Resistant Motor Lead Wire suitable for?

A:
The JYJ125/JYJ150 Motor Lead Wire is suitable for a wide range of applications, including lead wiring of F and H insulation class motors in industrial settings. It is ideal for use in pumps, fans, and other industrial equipment where high-temperature resistance is required.


4. Q: How should I install and use the JYJ125/JYJ150 1140V High Temperature Resistant Motor Lead Wire?

A:
Ensure the cable is installed in accordance with local electrical codes and standards. Avoid excessive bending or stretching. Use appropriate connectors and terminations to ensure a secure connection. Regularly inspect the cable for any signs of damage or wear.


5.Q: Is the JYJ125/JYJ150 1140V High Temperature Resistant Motor Lead Wire environmentally friendly?

A:
Yes, the JYJ125/JYJ150 1140V High Temperature Resistant Motor Lead Wire is environmentally friendly. It meets ROHS standards and uses materials that are safe for the environment.

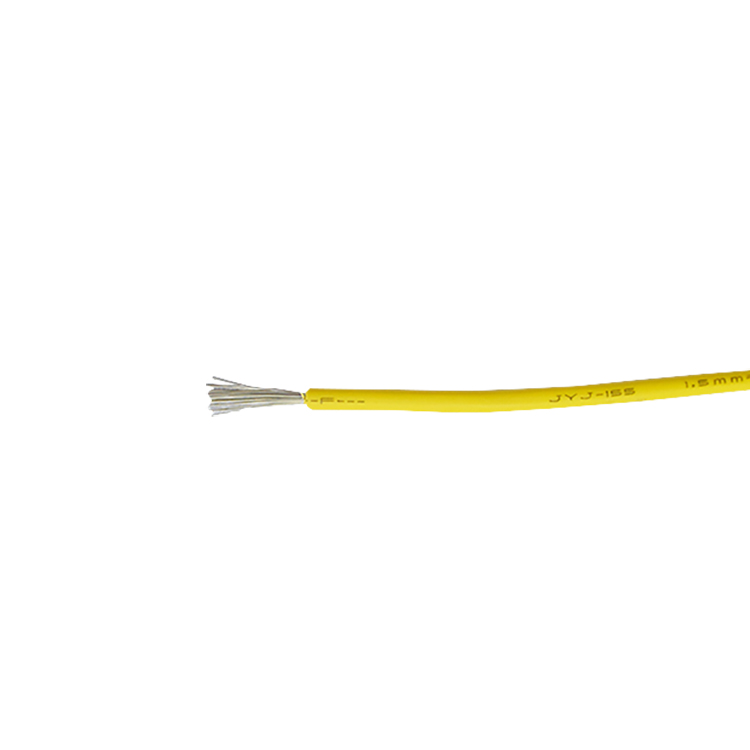

JYJ电机引线-5

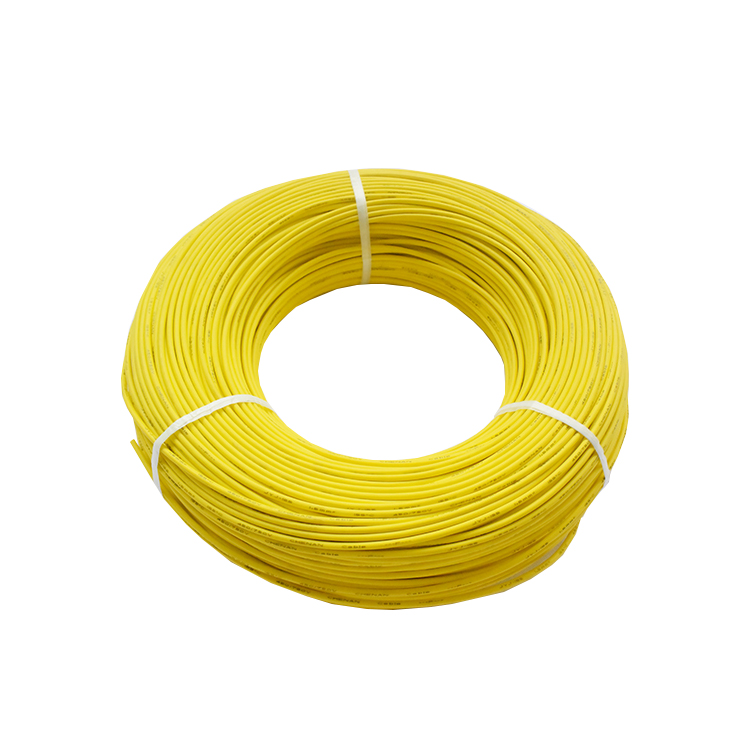

JYJ电机引线-4

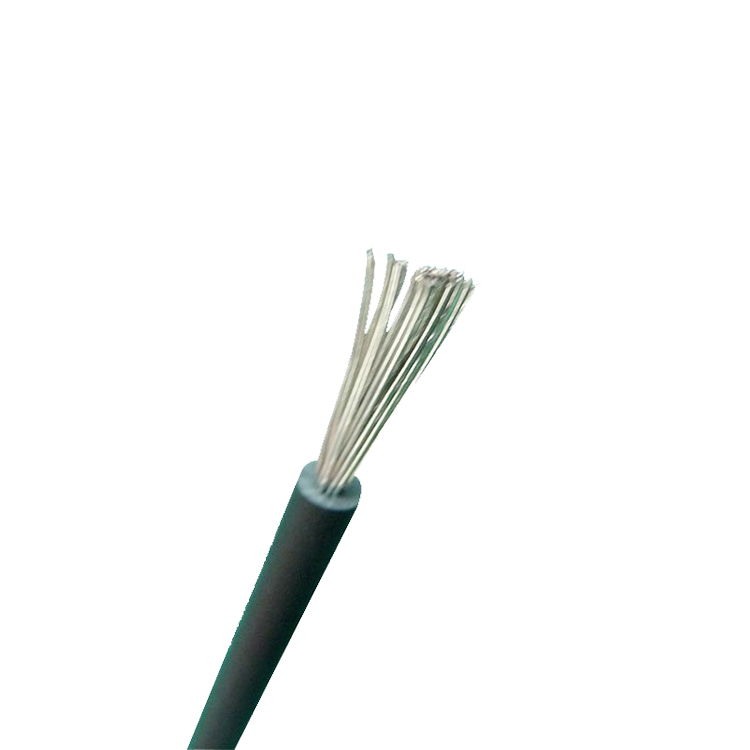

JYJ电机引线-3

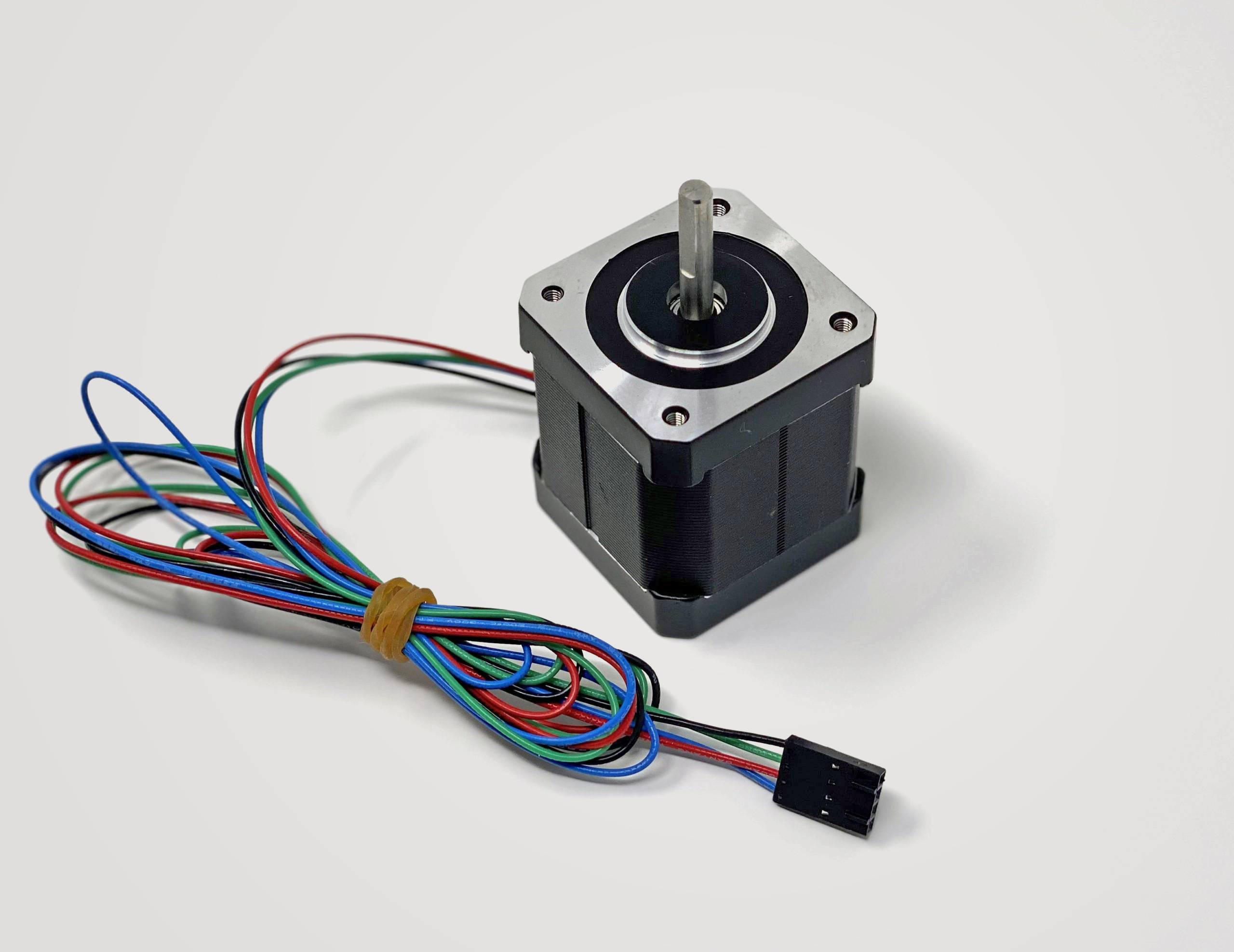

IMG_E5446-scaled
