FLRYW-A Heat-resistant automotive wire

The FLRYW-A Heat-resistant Automotive Wire is a high-quality cable designed for low-voltage circuits in automobiles. It features a temperature range of -40℃ to +125℃ and is manufactured with stranded tinned or bare copper conductors, ranging from 0.22 to 2.5mm². The cable uses PVC insulation, which is RoHS compliant, ensuring environmental safety. It passes the DIN 72551-5 3.7.1 flame test, providing excellent fire resistance. The uniform insulation thickness ensures easy stripping and cutting, facilitating installation. This cable is ideal for automotive applications, offering reliable performance in low-voltage circuits, especially in high-temperature environments such as engine compartments. It meets ISO 6722 Class C standards and is suitable for various automotive wiring needs, including internal connections within vehicles.
  • FLRYW-A

  • Zhongxin

  • 85444221

Availability:
Quantity:
Product Description

wuxi zhonghui's FLRYW-A Heat-resistant Automotive Wire is a high-quality cable designed for low-voltage circuits in automobiles. It features a temperature range of -40℃ to +125℃ and is manufactured with stranded tinned or bare copper conductors, ranging from 0.22 to 2.5mm². The cable uses PVC insulation, which is RoHS compliant, ensuring environmental safety. It passes the DIN 72551-5 3.7.1 flame test, providing excellent fire resistance. The uniform insulation thickness ensures easy stripping and cutting, facilitating installation. This cable is ideal for automotive applications, offering reliable performance in low-voltage circuits, especially in high-temperature environments such as engine compartments. It meets ISO 6722 Class C standards and is suitable for various automotive wiring needs, including internal connections within vehicles.



Performance Parameter

导体

Conductor

绝缘     Insulation


最大导体电阻

MAX.COND Resistance

(Ω/km, 20℃, DC)

面积 mm2

构造

Construction

(No./mm)

外径

Nom.Dia.

(mm)

厚度

Nom.Thick.

(mm)

外径

Nom.Dia.

(mm)

0.22

7/0.20

0.60

0.26

1.15

86.5

0.35

7/0.25

0.75

0.24

1.25

54.5

0.5

19/0.19

0.95

0.28

1.50

38.2

0.75

19/0.23

1.15

0.33

1.80

25.4

1.0

19/0.25

1.25

0.35

2.00

19.1

1.5

19/0.32

1.60

0.35

2.30

13.0

2.5

19/0.40

2.00

0.43

2.90

7.8



Product Specifications

Item Details
Conductor Tinned or bare copper, stranded, 0.3~5mm²
Insulation PVC, Pass ROHS
Temperature Rating -40℃~+105℃
Reference Standard JASO D 611
Color Optional




FLRYW - A Heat - Resistant Automotive Wire: A Comprehensive Guide

Product Features
  • Temperature Range: Rated for -40℃ to +105℃, ensuring reliable performance in extreme temperature conditions.


  • Standards Compliance: Adheres to DIN 72551 and ISO 6722 standards, guaranteeing quality and safety for automotive applications.


  • Conductor Type: Features tinned or bare copper conductors, stranded in sizes ranging from 0.22 to 2.5mm², for excellent conductivity and flexibility.


  • Insulation: Utilizes PVC insulation, which is ROHS compliant, ensuring environmental safety.


  • Color Options: Available in various colors for easy identification and customization.


  • Uniform Insulation Thickness: Ensures easy stripping and cutting, facilitating efficient installation.


  • Flame Resistance: Passes the DIN 72551-5 3.7.1 flame test, providing excellent fire safety.


  • Application: Specifically designed for low-voltage circuits in automobiles, ensuring safe and efficient power transmission.



Product Advantages

  • Durability: High-quality materials and construction ensure long-lasting performance, even in demanding conditions.

  • Ease of Use: Uniform insulation thickness allows for easy stripping and cutting, making installation quick and efficient.


  • Wide Application Range: Ideal for automotive applications, providing stable and reliable performance in critical systems.



FAQ (Frequently Asked Questions)

1. Q: What are the key features of the FLRYW-A Heat-resistant Automotive Wire?
A:
The FLRYW-A Heat-resistant Automotive Wire features a temperature rating of -40℃ to +105℃. It uses tinned or bare copper conductors, stranded in sizes ranging from 0.22 to 2.5mm². It has PVC insulation, which is ROHS compliant, and passes the DIN 72551-5 3.7.1 flame test.


2. Q: What applications is the FLRYW-A Heat-resistant Automotive Wire suitable for?

A:

The FLRYW-A Heat-resistant Automotive Wire is suitable for a wide range of automotive applications, including internal wiring in vehicles. It provides reliable performance in low-voltage circuits, especially in high-temperature environments such as engine compartments.


3. Q: What standards does the FLRYW-A Heat-resistant Automotive Wire comply with?

A:

The FLRYW-A Heat-resistant Automotive Wire complies with standards such as DIN 72551 and ISO 6722, ensuring quality and safety for various electrical systems.

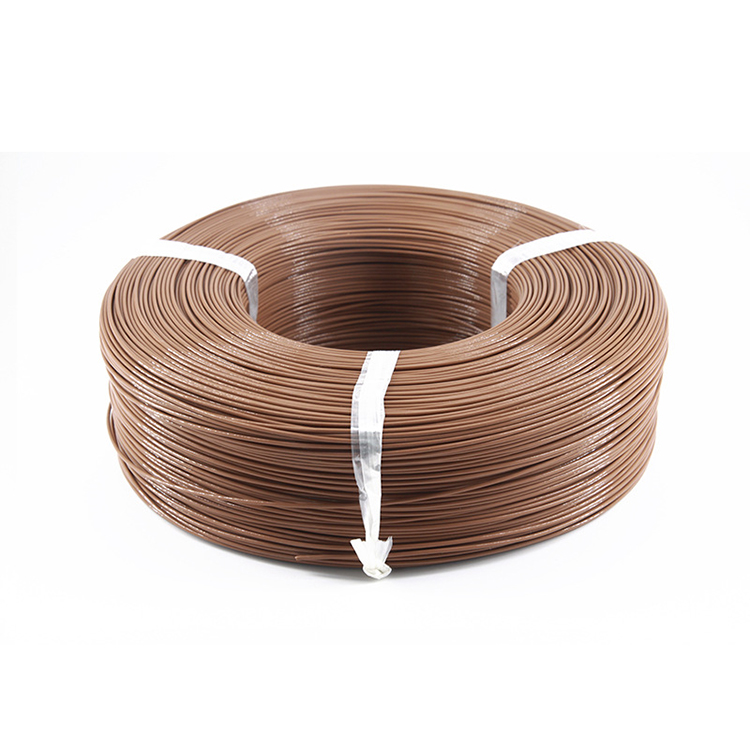

低压汽车线-1

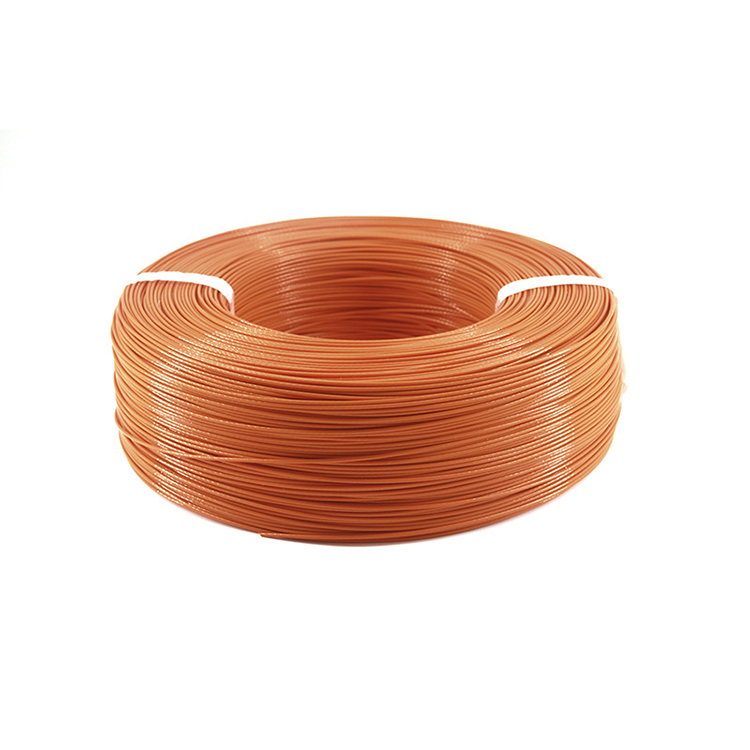

低压汽车线-3

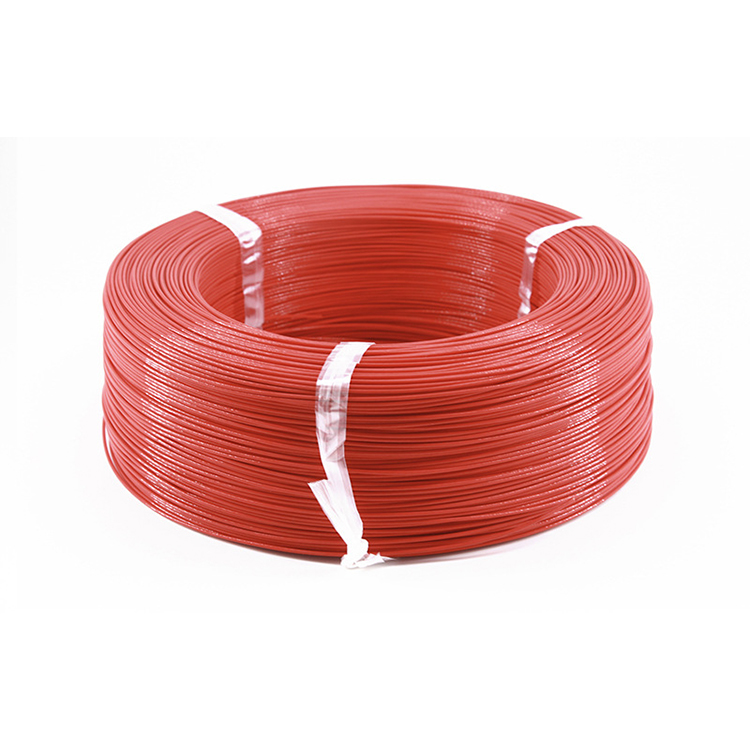

低压汽车线-4
