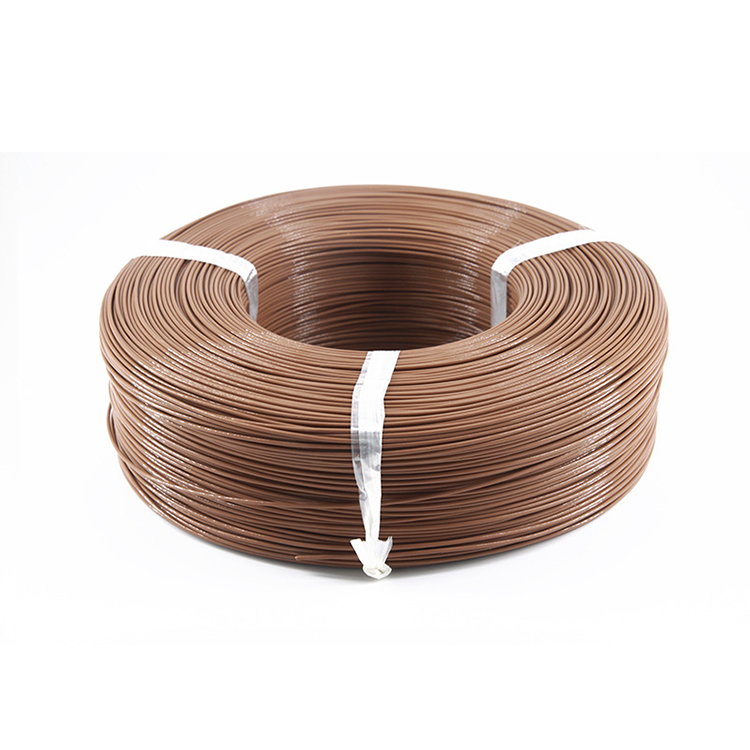

AVX High temperature resistant automotive low voltage line
The AVX High Temperature Resistant Automotive Low Voltage Line is a specialized wire designed for use in low-voltage circuits in automobiles, vehicles, and motorcycles. It is highly resistant to soldering temperatures and features excellent thermal stability and mechanical strength. This wire is suitable for a wide range of automotive applications, including under-hood environments, hybrid/electric vehicles, engine controls, sensors, and timing circuits. It meets AEC-Q200 requirements and operates reliably in temperatures up to 150°C. The wire is made of cross-linked PVC insulation, providing enhanced resistance to chemicals, moisture, and abrasion. Its uniform insulation thickness ensures easy stripping and cutting, facilitating installation. Additionally, it is environmentally friendly, meeting RoHS and REACH standards
-
AVX
-
Zhongxin
-
85444221
| Quantity: | |
|---|---|
Product Description
wuxi zhonghui's AVX High Temperature Resistant Automotive Low Voltage Line is a specialized wire designed for use in low-voltage circuits in automobiles, vehicles, and motorcycles. It is highly resistant to soldering temperatures and features excellent thermal stability and mechanical strength. This wire is suitable for a wide range of automotive applications, including under-hood environments, hybrid/electric vehicles, engine controls, sensors, and timing circuits. It meets AEC-Q200 requirements and operates reliably in temperatures up to 150°C. The wire is made of cross-linked PVC insulation, providing enhanced resistance to chemicals, moisture, and abrasion. Its uniform insulation thickness ensures easy stripping and cutting, facilitating installation. Additionally, it is environmentally friendly, meeting RoHS and REACH standards
Product Specifications
| Parameter | Value |
|---|---|
| Conductor | Tinned or bare copper, stranded, 0.5~100mm² |
| Insulation | XLPVC, Pass ROHS |
| Temperature Rating | -40℃~+100℃ |
| Reference Standard | JASO D 611 |
| Color | Optional |
Performance Parameter
导体 Conductor | 绝缘 Insulation | 容许电流 Current limit （A）*2 | 导体电阻 Conductor resistance (Ω/km, 20℃) | ||||
面积 mm2 | 构造 Construction (No./mm) | 外径 Nom.Dia. (mm) | 厚度 Nom.Thick. (mm) | 外径 O.D. (mm) | |||
标称 Standard | 最大 Max. | ||||||
0.5f | 20/0.18 | 1.0 | 0.5 | 2.0 | 2.2 | 9 | 36.7 |
0.5 | 7/0.32 | 1.0 | 0.5 | 2.0 | 2.2 | 9 | 32.7 |
0.75f | 30/0.18 | 1.2 | 0.5 | 2.2 | 2.4 | 11 | 24.4 |
0.85 | 11/0.32 | 1.25 | 0.5 | 2.3 | 2.4 | 12 | 22.0 |
1.25f | 50/0.18 | 1.5 | 0.6 | 2.7 | 2.9 | 16 | 14.7 |
1.25 | 16/0.32 | 1.5 | 0.6 | 2.7 | 2.9 | 16 | 14.3 |
2f | 37/0.26 | 1.8 | 0.6 | 3.0 | 3.3 | 21 | 9.50 |
2 | 26/0.32 | 1.9 | 0.6 | 3.1 | 3.4 | 22 | 8.81 |
3 | 41/0.32 | 2.4 | 0.7 | 3.8 | 4.1 | 29 | 5.90 |
5f | 98/0.26 | 3.0 | 0.8 | 4.6 | 4.9 | 40 | 3.59 |
5 | 65/0.32 | 3.0 | 0.8 | 4.6 | 4.9 | 40 | 3.52 |
8f | 7/22/0.26 | 4.0 | 0.8 | 5.6 | 5.9 | 54 | 2.33 |
8 | 50/0.45 | 3.7 | 0.8 | 5.3 | 5.5 | 53 | 2.32 |
10f | 7/27/0.26 | 4.5 | 1.0 | 6.5 | 6.9 | 63 | 1.90 |
15f | 7/36/0.26 | 5.3 | 1.2 | 7.7 | 8.2 | 76 | 1.45 |
20f | 19/13/0.32 | 6.5 | 1.1 | 8.7 | 9.3 | 101 | 0.946 |
A : Low-voltage wires for automobiles V : Vinyl X : Crosslinked
The current limit data is for conductor temperature of 80℃ (maximum allowable temperature) and an ambient temperature of 40℃
AVX High - Temperature - Resistant Automotive Low - Voltage Line
Product Design
The AVX High Temperature Resistant Automotive Low Voltage Line is designed to meet the demanding conditions of automotive applications. It features a stranded tinned or bare copper conductor for excellent conductivity and flexibility. The cable uses PVC insulation, which is ROHS compliant, ensuring environmental safety. It is rated for temperatures up to 105℃ and is suitable for low voltage circuits in automobiles. The design ensures reliable performance in high-temperature environments, such as engine compartments, where durability and heat resistance are critical.
The AVX High Temperature Resistant Automotive Low Voltage Line is designed to meet the demanding conditions of automotive applications. It features a stranded tinned or bare copper conductor for excellent conductivity and flexibility. The cable uses PVC insulation, which is ROHS compliant, ensuring environmental safety. It is rated for temperatures up to 105℃ and is suitable for low voltage circuits in automobiles. The design ensures reliable performance in high-temperature environments, such as engine compartments, where durability and heat resistance are critical.
Product Features
- Temperature Range: Rated for -40℃ to +100℃, ensuring reliable performance in extreme temperature conditions.
- Standards Compliance: Adheres to JASO D 611 standards, guaranteeing quality and safety for automotive applications.
- Conductor Material: Features tinned or bare copper conductors, stranded in sizes ranging from 0.5 to 100mm², for excellent conductivity and flexibility.
- Insulation: Utilizes XLPVC insulation, which is ROHS compliant, ensuring environmental safety.
- Color Options: Available in various colors for easy identification and customization.
- Uniform Insulation Thickness: Ensures easy stripping and cutting, facilitating efficient installation.
- Flame Resistance: Passes the JASO D611 flame test, providing excellent delay combustibility.
Product Advantages
- Enhanced Safety: Compliance with JASO D 611 standards and flame resistance ensure safe operation in automotive environments.
- Durability: High-quality materials and construction ensure long-lasting performance, even in demanding conditions.
- Versatility: Suitable for low-voltage circuits in automobiles, including vehicles and motorcycles, especially in circuits requiring heat resistance.
- Ease of Use: Uniform insulation thickness allows for easy stripping and cutting, making installation quick and efficient.
- Environmental Friendliness: ROHS compliance ensures the product is safe for the environment.
- Wide Application Range: Ideal for automotive applications, including engine controls, sensors, and timing circuits, providing stable and reliable performance.
Product Applications

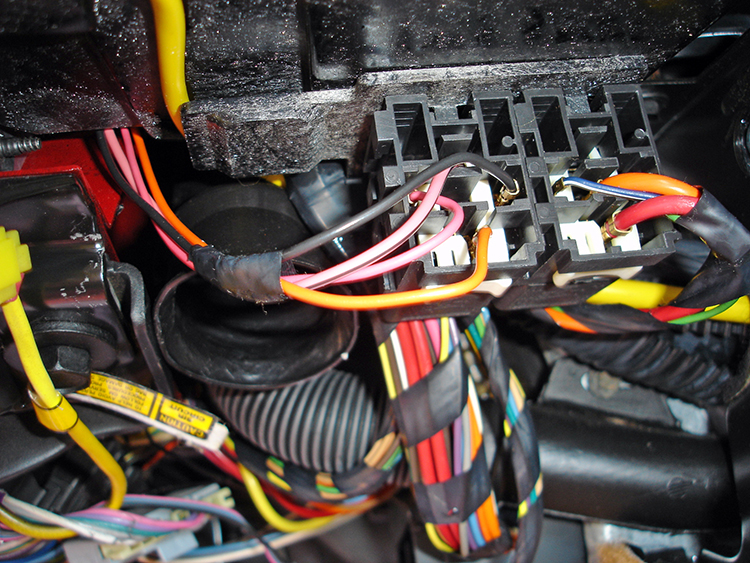

This cable is widely used in automotive applications, including internal wiring for vehicles and motorcycles. It is ideal for circuits requiring heat resistance, such as those near the engine or exhaust systems. The cable's reliability and durability make it suitable for connecting various electronic components and sensors in vehicles. Its excellent thermal stability and mechanical strength ensure long-term performance in the harsh conditions typical of automotive environments.
This cable is widely used in automotive applications, including internal wiring for vehicles and motorcycles. It is ideal for circuits requiring heat resistance, such as those near the engine or exhaust systems. The cable's reliability and durability make it suitable for connecting various electronic components and sensors in vehicles. Its excellent thermal stability and mechanical strength ensure long-term performance in the harsh conditions typical of automotive environments.
FAQ (Frequently Asked Questions)
1. Q: What is the AVX High Temperature Resistant Automotive Low Voltage Line used for?
A:
The AVX High Temperature Resistant Automotive Low Voltage Line is designed for low-voltage circuits in automobiles, including vehicles and motorcycles. It is especially suitable for circuits requiring heat resistance, such as engine controls, sensors, and timing circuits.
A:
The AVX High Temperature Resistant Automotive Low Voltage Line is designed for low-voltage circuits in automobiles, including vehicles and motorcycles. It is especially suitable for circuits requiring heat resistance, such as engine controls, sensors, and timing circuits.
2. Q: What are the key features of the AVX High Temperature Resistant Automotive Low Voltage Line?
A:The AVX High Temperature Resistant Automotive Low Voltage Line features a temperature rating of -40℃ to +100℃ and meets JASO D 611 standards. It uses tinned or bare copper conductors and XLPVC insulation, which is ROHS compliant. The uniform insulation thickness ensures easy stripping and cutting, and it passes the JASO D611 flame test for excellent delay combustibility.
3. Q: What applications is the AVX High Temperature Resistant Automotive Low Voltage Line suitable for?
A:The AVX High Temperature Resistant Automotive Low Voltage Line is suitable for a wide range of automotive applications, including low-voltage circuits in automobiles, vehicles, and motorcycles. It is particularly ideal for circuits requiring heat resistance.
4. Q: How should I install and use the AVX High Temperature Resistant Automotive Low Voltage Line?
A:Ensure the wire is installed in accordance with local electrical codes and standards. Avoid excessive bending or stretching. Use appropriate connectors and terminations to ensure a secure connection. Regularly inspect the wire for any signs of damage or wear.
5. Q: How should I maintain the AVX High Temperature Resistant Automotive Low Voltage Line?
A:Regularly inspect the wire for physical damage or wear. Keep the wire clean and free from dirt and debris. Ensure connections are secure and free from corrosion. Replace the wire immediately if any damage is detected.
6. Q: Is the AVX High Temperature Resistant Automotive Low Voltage Line environmentally friendly?
A:Yes, the AVX High Temperature Resistant Automotive Low Voltage Line is environmentally friendly. It meets ROHS and REACH standards, ensuring it is safe for the environment.
